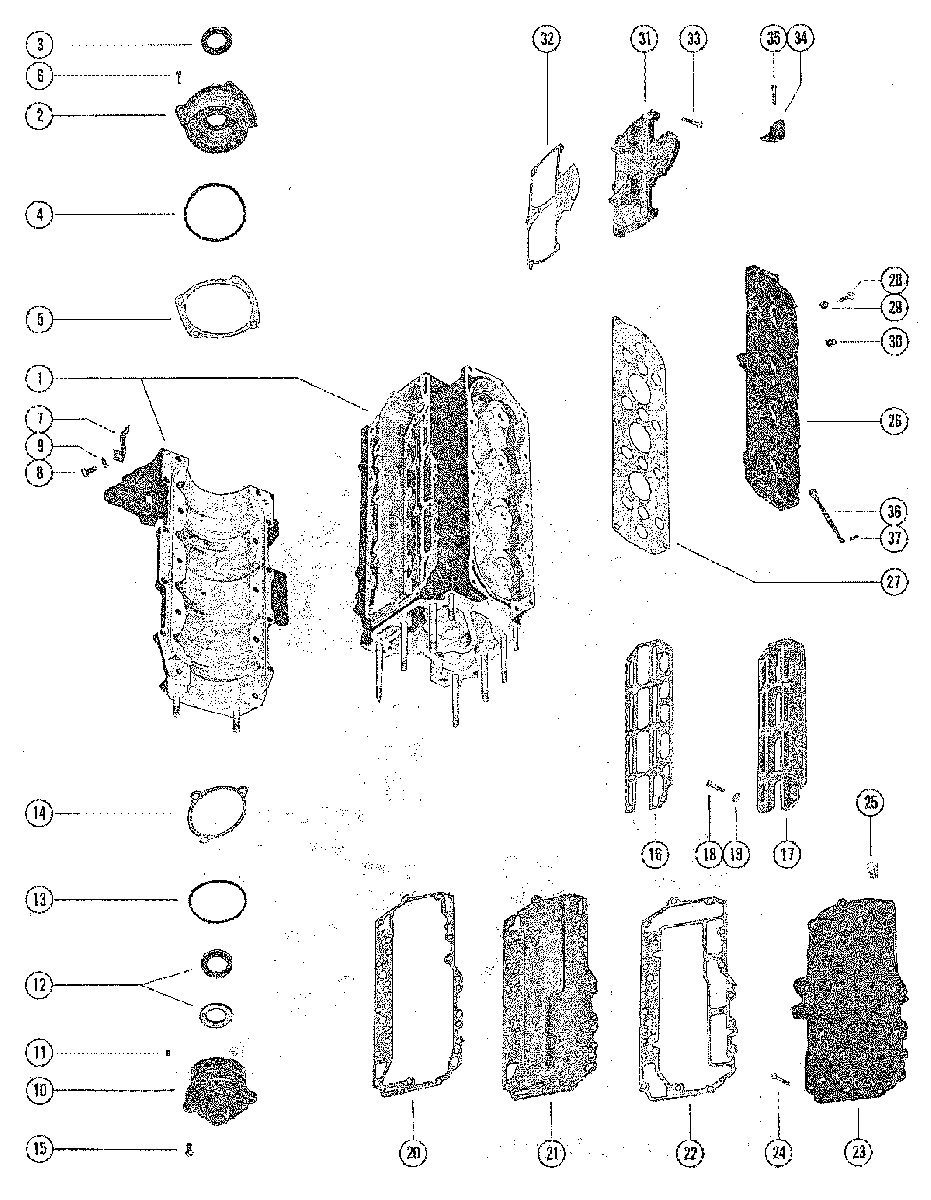

END CAPS, MANIFOLD AND EXHAUST COVERS для Mercury - 850 (4 CYL.) 8005440 THRU 8043774
-
№АртикулНазвание
-
1847-5340A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWCYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1847-5340A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPCYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
21134-3197A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
326-41953 OIL SEALOIL SEAL
-
425-47254 "O" RING"O" RING
-
515-47248A1 SHIM ASSEMBLY, END CAP TO CRANKCASE (.006-8-10)SHIM ASSEMBLY, END CAP TO CRANKCASE (.006-8-10)
-
610-30225 SCREW, END CAP MOUNTING (1")SCREW, END CAP MOUNTING (1")
-
743352 POINTER, TIMING
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPPOINTER, TIMING
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
810-28636 SCREW, TIMING POINTER ATTACHING (3/4")
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPSCREW, TIMING POINTER ATTACHING (3/4")
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
912-35462 WASHER, TIMING POINTER SCREW
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPWASHER, TIMING POINTER SCREW
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
101148-5410T1 END CAP ASSEMBLY, LOWER
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWEND CAP ASSEMBLY, LOWER
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
101148-5410T1 END CAP ASSEMBLY, LOWER
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPEND CAP ASSEMBLY, LOWER
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1121-42657A3 CHECK VALVE ASSEMBLY, END CAP
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWCHECK VALVE ASSEMBLY, END CAP
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1226-41953 OIL SEAL, UPPEROIL SEAL, UPPER
-
1325-32546 "O" RING"O" RING
-
1415-20085A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)SHIM, END CAP TO CRANKCASE (.002-3-5-10)
-
1510-30225 SCREW, END CAP MOUNTING (1")SCREW, END CAP MOUNTING (1")
-
1627-73665 GASKET, WATER JACKET COVER
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYGASKET, WATER JACKET COVER
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
1776303 COVER, WATER JACKET - CYLINDER BLOCK
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYCOVER, WATER JACKET - CYLINDER BLOCK
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
1810-53167T SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYSCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
1912-8M0042642 WASHER, WATER JACKET COVER FASTENING SCREW
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLYWASHER, WATER JACKET COVER FASTENING SCREW
- PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY -
2027-854981 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2164107 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
2227-854961 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVERGASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
-
2364108 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2410-53576 SCREW, MANIFOLD COVER MOUNTING (1 1/8")SCREW, MANIFOLD COVER MOUNTING (1 1/8")
-
2522-328022 PLUG, PIPE - EXHAUST MANIFOLD COVER
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPPLUG, PIPE - EXHAUST MANIFOLD COVER
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
261021-7699 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
2727-85493 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2810-21091 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")
-
2911-20184 NUT, COVER MOUNTING SCREWNUT, COVER MOUNTING SCREW
-
3022-328022 PLUG, PIPE - CYLINDER BLOCK COVER
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWPLUG, PIPE - CYLINDER BLOCK COVER
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
3162302 COVER, TRANSFER PORT - TOPCOVER, TRANSFER PORT - TOP
-
3162301 COVER, TRANSFER PORT - BOTTOMCOVER, TRANSFER PORT - BOTTOM
-
3227-62107 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3310-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")SCREW, TRANSFER PORT COVER MOUNTING (1")
-
3310-49668 SCREW, TRANSFER PORT COVER MOUNTING (3/4")SCREW, TRANSFER PORT COVER MOUNTING (3/4")
-
3437440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCKBRACKET, MOUNT SUPPORT - CYLINDER BLOCK
-
3510-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")SCREW, BRACKET TO CYLINDER BLOCK (1")
-
3646933A1 GROUND STRAP ASSEMBLY, EXHAUST COVER SCREWGROUND STRAP ASSEMBLY, EXHAUST COVER SCREW
-
3710-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
