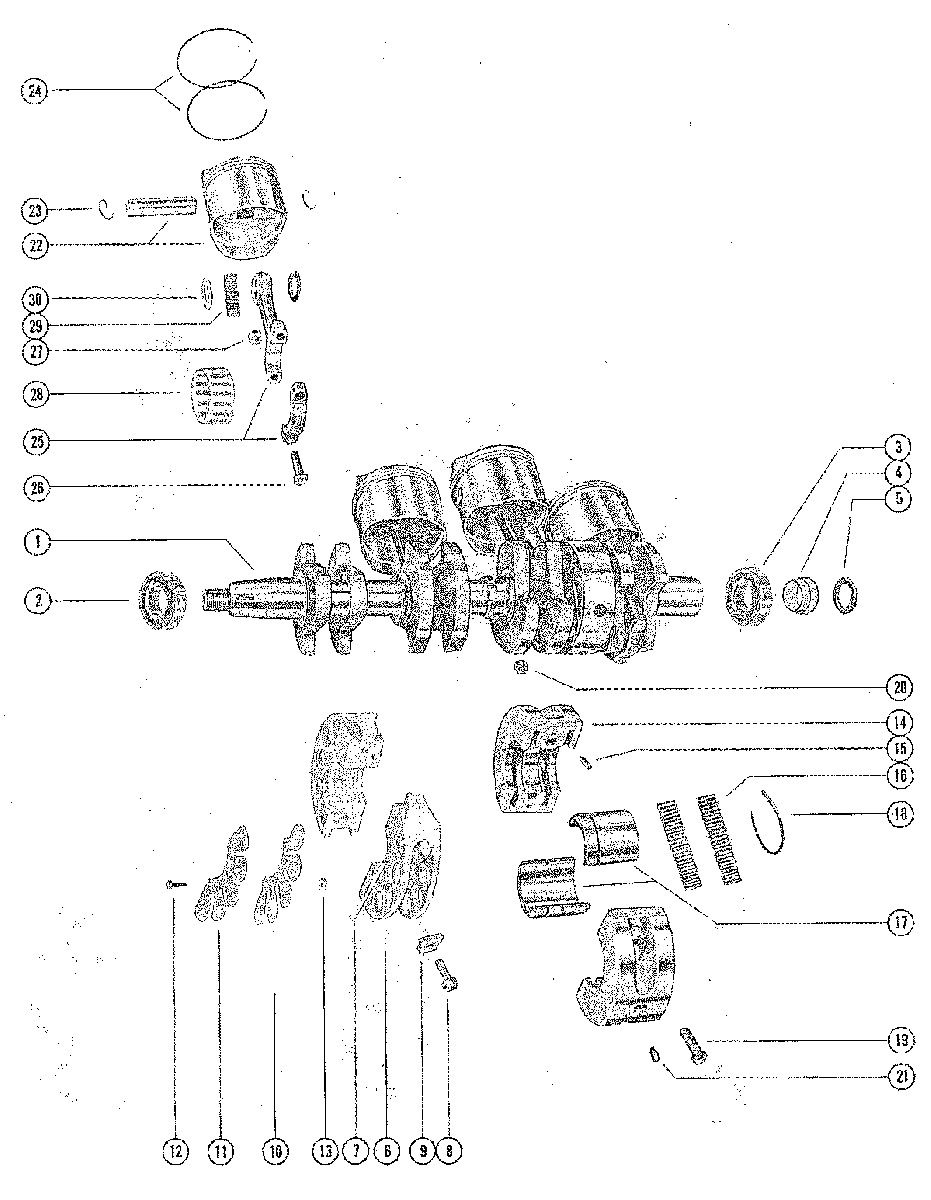

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 850 (4 CYL.) 8005440 THRU 8043774

  • №
    Артикул
    Название
  • 1
    440-9074A2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-62567T BEARING, BALL - UPPER
    BEARING, BALL - UPPER
  • 3
    30-63742T BEARING, BALL - LOWER
    BEARING, BALL - LOWER
  • 4
    54196A6 CARRIER ASSEMBLY, "O" RING
    CARRIER ASSEMBLY, "O" RING
  • 5
    65800 PACKING, CARRIER
    PACKING, CARRIER
  • 6
    540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    MAIN BEARING ASSEMBLY (VALVE TYPE)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 6
    540-5266T5 MAIN BEARING ASSEMBLY (VALVE TYPE)
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    MAIN BEARING ASSEMBLY (VALVE TYPE)
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 7
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 8
    10-45775 SCREW, MAIN BEARING CLAMPING
    SCREW, MAIN BEARING CLAMPING
  • 9
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 10
    34-56007A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 11
    34-56008 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 12
    10-62204 SCREW, REED STOP MOUNTING
    SCREW, REED STOP MOUNTING
  • 13
    11-53153 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 14
    535-3190A2 CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 14
    535-5397A4 CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    CENTER MAIN BEARING ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 15
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 16
    29-714221 BEARING, NEEDLE
    BEARING, NEEDLE
  • 17
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 18
    53-26933 RING, SNAP - OUTER RACE CLAMPING
    RING, SNAP - OUTER RACE CLAMPING
  • 19
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING
    SCREW, CENTER MAIN BEARING CLAMPING
  • 20
    11-20184 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 21
    17-47246 DOWEL PIN (STEPPED)
    DOWEL PIN (STEPPED)
  • 22
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    PISTON AND PISTON PIN ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 22
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    PISTON AND PISTON PIN ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 23
    53-857196 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 24
    39-78816A12 RING, PISTON
    RING, PISTON
  • 25
    624-8101A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 26
    10-54803 SCREW, CAP TO CONNECTING ROD
    SCREW, CAP TO CONNECTING ROD
  • 27
    11-49091 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 28
    31-62596A1 BEARING ASSEMBLY, CRANKPIN
    BEARING ASSEMBLY, CRANKPIN
  • 29
    29-47270 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 30
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 30
    774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    PISTON AND PISTON PIN ASSEMBLY (.015)
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 30
    774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015)
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    PISTON AND PISTON PIN ASSEMBLY (.015)
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 30
    39-78811A12 RING, PISTON (.015)
    RING, PISTON (.015)
