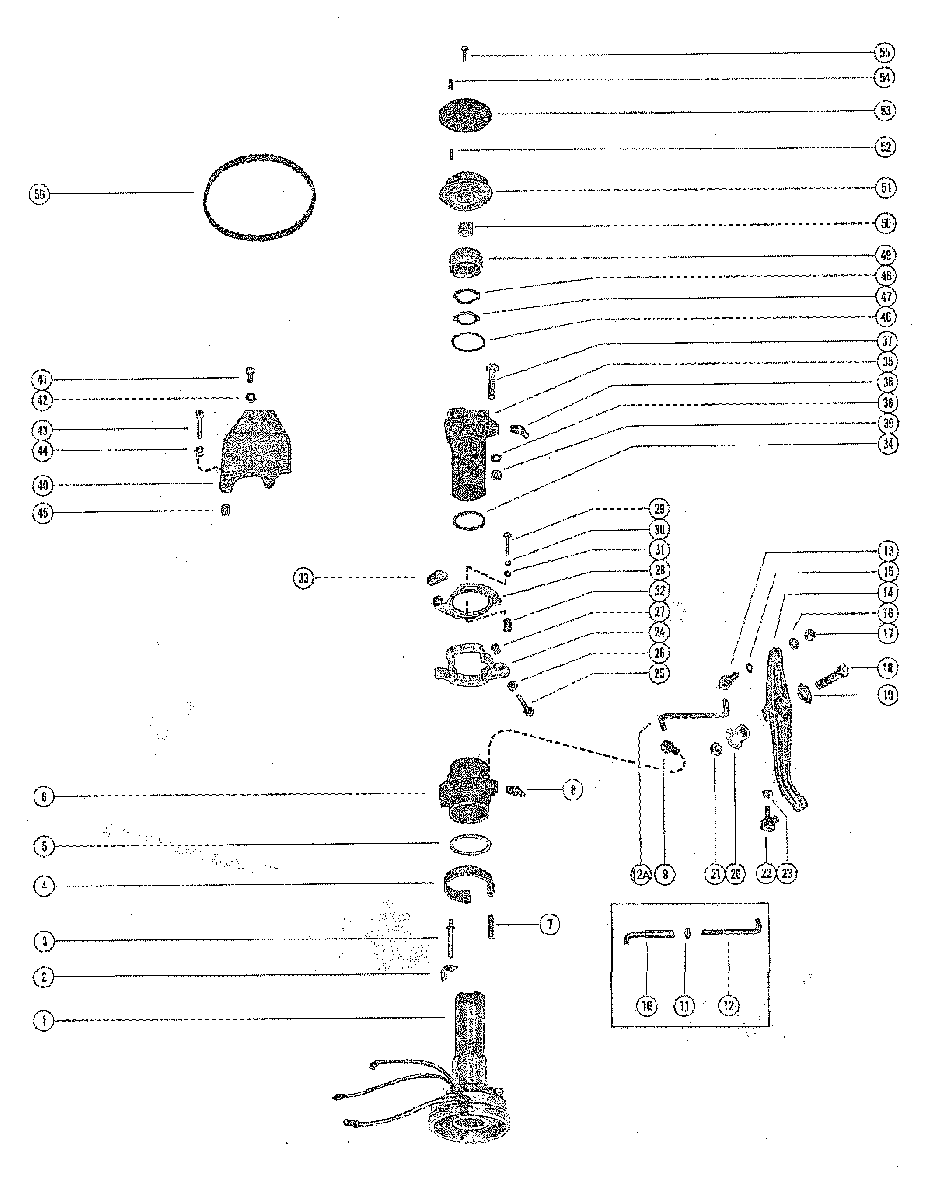

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 850 (4 CYL.) 8005440 THRU 8043774

  • №
    Артикул
    Название
  • 1
    393-3736A79 HOUSING ASSEMBLY, DISTRIBUTOR
    HOUSING ASSEMBLY, DISTRIBUTOR
  • 2
    32197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
    STOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
  • 3
    17-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
    PIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
  • 4
    24-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSING
    SPRING, HORSESHOE - DISTRIBUTOR HOUSING
  • 5
    12-53540 WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
    WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
  • 6
    55804A1 ECONOMIZER COLLAR ASSEMBLY
    ECONOMIZER COLLAR ASSEMBLY
  • 7
    17-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINER
    PIN, ECONOMIZER COLLAR - SPRING RETAINER
  • 8
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 9
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 10
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    SWIVEL AND LINK ROD ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 11
    11-29598 NUT, UPPER LINK ROD ADJUSTING
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    NUT, UPPER LINK ROD ADJUSTING
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 12
    37588 ROD, LINK - UPPER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    ROD, LINK - UPPER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 12A
    67468 ROD, LINK - UPPER
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    ROD, LINK - UPPER
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 13
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 14
    48562 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 15
    13-39954 WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
    WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
  • 16
    12-29245 WASHER< THROTTLE CONTROL LEVER SWIVEL
    WASHER< THROTTLE CONTROL LEVER SWIVEL
  • 17
    11-35888 NUT, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    NUT, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 18
    10-31830 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")
    SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")
  • 19
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 20
    23-45818 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 21
    11-8M0042636 NUT, THROTTLE CONTROL LEVER SCREW
    NUT, THROTTLE CONTROL LEVER SCREW
  • 22
    37587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
    SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
  • 23
    11-35888 NUT, THROTTLE CABLE TO LOWER SWIVEL
    NUT, THROTTLE CABLE TO LOWER SWIVEL
  • 24
    48692 COLLAR, THROTTLE ACTUATOR
    COLLAR, THROTTLE ACTUATOR
  • 25
    10-61658 SCREW, ADJUSTING - ACTUATOR COLLAR (1 3/4")
    SCREW, ADJUSTING - ACTUATOR COLLAR (1 3/4")
  • 26
    11-64015 NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
    NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
  • 27
    52023 CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
    CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
  • 28
    48671 PLATE, THROTTLE ACTUATOR
    PLATE, THROTTLE ACTUATOR
  • 29
    10-37892 SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
    SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
  • 30
    12-30164 WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
    WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
  • 31
    13-26996 LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
    LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
  • 32
    23-48674 SPACER, THROTTLE ACTUATOR PLATE SCREW
    SPACER, THROTTLE ACTUATOR PLATE SCREW
  • 33
    54239 CAM, THROTTLE ACTUATOR PLATE
    CAM, THROTTLE ACTUATOR PLATE
  • 34
    12-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSING
    WASHER, ADAPTOR - DISTRIBUTOR HOUSING
  • 35
    66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 35
    66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    ADAPTOR ASSEMBLY, DISTRIBUTOR
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 36
    22-25094 FITTING, GREASE - DISTRIBUTOR ADAPTOR
    FITTING, GREASE - DISTRIBUTOR ADAPTOR
  • 37
    10-78841 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
  • 37
    10-73657 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
    SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
  • 38
    12-20084 WASHER, DISTRIBUTOR HOUSING SCREW
    WASHER, DISTRIBUTOR HOUSING SCREW
  • 39
    11-22053 NUT, DISTRIBUTOR HOUSING SCREW
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    NUT, DISTRIBUTOR HOUSING SCREW
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 40
    55805 BRACKET, STOP
    BRACKET, STOP
  • 41
    10-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
    SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
  • 42
    12-35462 WASHER, STOP BRACKET FASTENING SCREW
    WASHER, STOP BRACKET FASTENING SCREW
  • 43
    10-24228 SCREW, STOP BRACKET ADJUSTING (1 7/8")
    SCREW, STOP BRACKET ADJUSTING (1 7/8")
  • 44
    11-20890 NUT, STOP BRACKET ADJUSTING SCREWS
    NUT, STOP BRACKET ADJUSTING SCREWS
  • 45
    52023 CAP, NYLON - STOP BRACKET ADJUSTING SCREWS
    CAP, NYLON - STOP BRACKET ADJUSTING SCREWS
  • 46
    12-27939 WASHER, DISTRIBUTOR HOUSING
    WASHER, DISTRIBUTOR HOUSING
  • 47
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 48
    13-27959 WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
    WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
  • 49
    54567 CAP, DISTRIBUTOR HOUSING
    CAP, DISTRIBUTOR HOUSING
  • 50
    23-47250 SPACER, DRIVE PULLEY
    SPACER, DRIVE PULLEY
  • 51
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 52
    17-29908 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 53
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 54
    28-29910 KEY, DISTRIBUTOR DRIVER
    KEY, DISTRIBUTOR DRIVER
  • 55
    10-68554 SCREW, PULLEY CLAMPING SCREW
    SCREW, PULLEY CLAMPING SCREW
  • 56
    20140 BELT, TIMING
    BELT, TIMING
