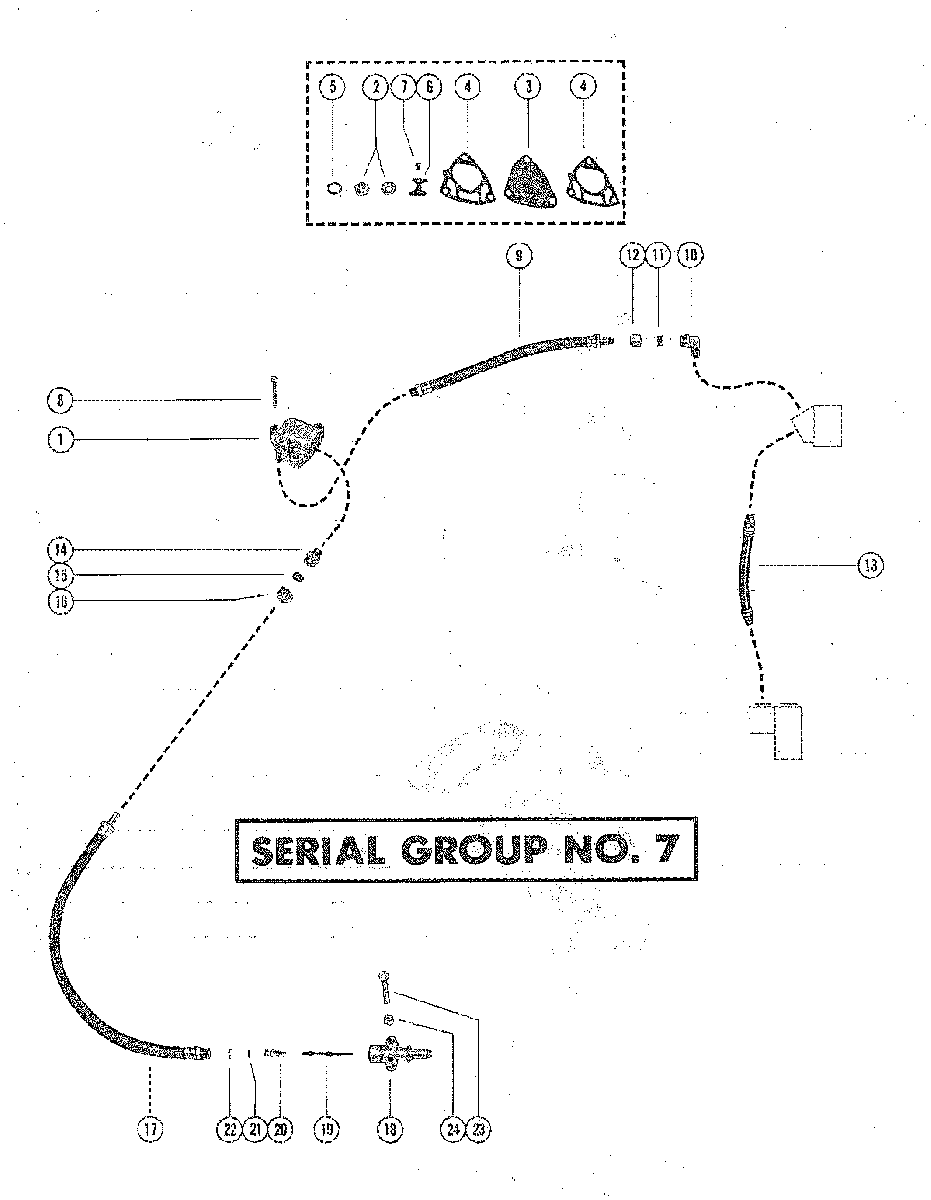

FUEL PUMP AND FUEL LINE ASSEMBLY (SERIAL GROUP NO. 7) для Mercury - 850 (4 CYL.) 3493913 THRU 4366801
-
№АртикулНазвание
-
158888A4 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-8M0084276 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A5 DIAPHRAGM KITDIAPHRAGM KIT
-
490-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
590-8M0143356 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
810-69067 SCREW, PUMP MOUNTING (1 3/8")SCREW, PUMP MOUNTING (1 3/8")
-
932-55827A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 1/2")
-
1022-59351 ELBOW, UPPER CARBURETORELBOW, UPPER CARBURETOR
-
1122-30175 SLEEVE, UPPER CARBURETOR ELBOWSLEEVE, UPPER CARBURETOR ELBOW
-
1222-30177 NUT, UPPER CARBURETOR ELBOWNUT, UPPER CARBURETOR ELBOW
-
1332-59352 FUEL LINE, CARBURETOR TO CARBURETOR (6 5/8")FUEL LINE, CARBURETOR TO CARBURETOR (6 5/8")
-
1422-30468 CONNECTOR, FUEL PUMPCONNECTOR, FUEL PUMP
-
1522-30175 SLEEVE, CONNECTORSLEEVE, CONNECTOR
-
1622-30177 NUT, CONNECTORNUT, CONNECTOR
-
1732-55829 FUEL LINE, ADAPTOR TO UPPER FUEL PUMP (15")FUEL LINE, ADAPTOR TO UPPER FUEL PUMP (15")
-
1830186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
1930185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2024-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2125-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2230188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2310-88488 SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")SCREW, ADAPTOR TO BOTTOM COWL (3 1/4")
-
2310-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
-
2411-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
