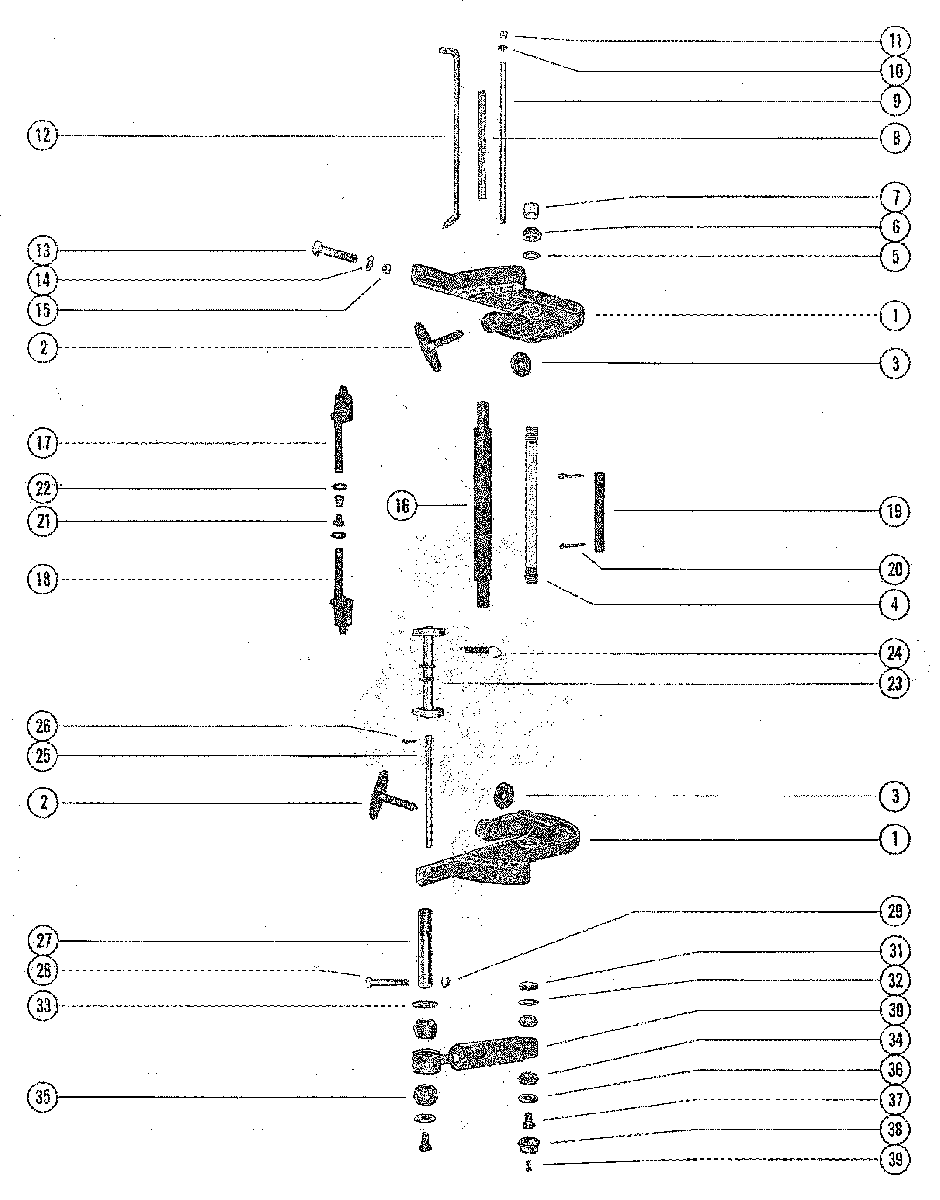

CLAMP BRACKET AND REVERSE LOCK для Mercury - 850 (4 CYL.) 3493913 THRU 4366801

  • №
    Артикул
    Название
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    THUMB SCREW ASSEMBLY
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
  • 3
    12-28404 WASHER, THUMB SCREW
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
    WASHER, THUMB SCREW
    UNITED STATES 4092964 AND BELOW
    AUSTRALIA 8025614 AND BELOW
    BELGIUM 9069878 AND BELOW
    CANADA 7044107 AND BELOW
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    CLAMP BRACKET ASSEMBLY
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    THUMB SCREW ASSEMBLY
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
  • 3
    12-70988 WASHER, THUMB SCREW
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
    WASHER, THUMB SCREW
    UNITED STATES 4092965 AND UP
    AUSTRALIA 8025615 AND UP
    BELGIUM 9069879 AND UP
    CANADA 7044108 AND UP
  • 4
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 5
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
  • 6
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 7
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 8
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 9
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 11
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 12
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 13
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
    BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
  • 14
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 13
    10-68299 BOLT, CLAMP BRACKET TO TRANSOM (3")
    BOLT, CLAMP BRACKET TO TRANSOM (3")
  • 14
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 15
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 16
    55-28416 PIN, UPPER SHOCK MOUNTING
    PIN, UPPER SHOCK MOUNTING
  • 17
    76386 TILT LOCK ASSEMBLY, STARBOARD
    TILT LOCK ASSEMBLY, STARBOARD
  • 18
    76385T TILT LOCK ASSEMBLY, PORT
    TILT LOCK ASSEMBLY, PORT
  • 19
    47802 TUBE, TILT LOCK
    TUBE, TILT LOCK
  • 20
    18-47959 COTTER PIN, TILT LOCK TUBE
    COTTER PIN, TILT LOCK TUBE
  • 21
    23-47803 BUSHING, TILT LOCK TUBE
    BUSHING, TILT LOCK TUBE
  • 22
    13-69150 WASHER, WAVE - TILT LOCK TUBE
    WASHER, WAVE - TILT LOCK TUBE
  • 23
    87431 REVERSE LOCK ASSEMBLY
    REVERSE LOCK ASSEMBLY
  • 24
    24-29821 SPRING, REVERSE LOCK TENSION
    SPRING, REVERSE LOCK TENSION
  • 25
    56349 SHAFT, REVERSE LOCK PIVOT
    SHAFT, REVERSE LOCK PIVOT
  • 26
    18-45882 COTTER PIN, REVERSE LOCK TO SHAFT
    COTTER PIN, REVERSE LOCK TO SHAFT
  • 27
    55-696531 PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
    PIN, LOWER SHOCK MOUNTING (SHORT SHAFT)
  • 27
    55-28414 PIN, LOWER SHOCK MOUNTING - (LONG SHAFT)
    PIN, LOWER SHOCK MOUNTING - (LONG SHAFT)
  • 28
    10-21937 SCREW, LOWER SHOCK PIN (2")- (LONG SHAFT)
    SCREW, LOWER SHOCK PIN (2")- (LONG SHAFT)
  • 29
    11-20184 NUT, LOWER SHOCK PIN SCREW- (LONG SHAFT)
    NUT, LOWER SHOCK PIN SCREW- (LONG SHAFT)
  • 30
    55-58780A7 SHOCK ABSORBER
    SHOCK ABSORBER
  • 31
    23-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
    SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
  • 32
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WASHER, UPPER BUSHING RETAINER (INNER)
  • 33
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WASHER, LOWER BUSHING RETAINER (INNER)
  • 34
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
  • 35
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
  • 36
    12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
    WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
  • 37
    10-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
    SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
  • 38
    70679 COVER, UPPER AND LOWER SHOCK MOUNTING PIN
    COVER, UPPER AND LOWER SHOCK MOUNTING PIN
  • 39
    10-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
    SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
