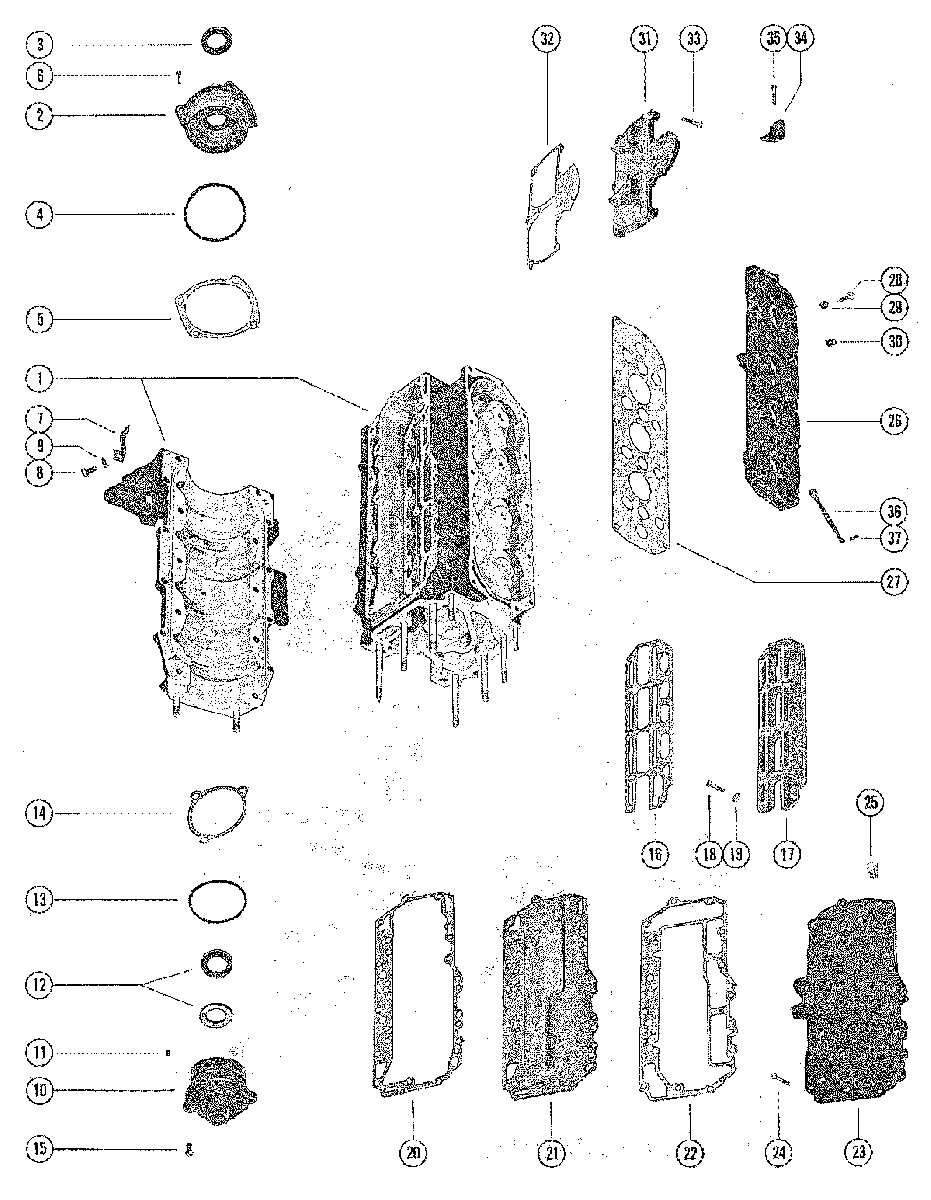

END CAPS, MANIFOLD AND EXHAUST COVERS для Mercury - 850 (4 CYL.) 3493913 THRU 4366801

  • №
    Артикул
    Название
  • 1
    847-5340A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 1
    847-5340A4 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 2
    1134-3197A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 3
    26-41953 OIL SEAL
    OIL SEAL
  • 4
    25-47254 "O" RING
    "O" RING
  • 5
    15-47248A1 SHIM ASSEMBLY, END CAP TO CRANKCASE (.006-8-10)
    SHIM ASSEMBLY, END CAP TO CRANKCASE (.006-8-10)
  • 6
    10-30225 SCREW, END CAP MOUNTING (1")
    SCREW, END CAP MOUNTING (1")
  • 7
    43352 POINTER, TIMING
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    POINTER, TIMING
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 8
    10-28636 SCREW, TIMING POINTER ATTACHING (3/4")
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    SCREW, TIMING POINTER ATTACHING (3/4")
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 9
    12-35462 WASHER, TIMING POINTER SCREW
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    WASHER, TIMING POINTER SCREW
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 10
    1148-5410T1 END CAP ASSEMBLY, LOWER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    END CAP ASSEMBLY, LOWER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 10
    1148-5410T1 END CAP ASSEMBLY, LOWER
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    END CAP ASSEMBLY, LOWER
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 11
    21-42657A3 CHECK VALVE ASSEMBLY, END CAP
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    CHECK VALVE ASSEMBLY, END CAP
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 12
    26-41953 OIL SEAL, UPPER
    OIL SEAL, UPPER
  • 13
    25-32546 "O" RING
    "O" RING
  • 14
    15-20085A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)
    SHIM, END CAP TO CRANKCASE (.002-3-5-10)
  • 15
    10-30225 SCREW, END CAP MOUNTING (1")
    SCREW, END CAP MOUNTING (1")
  • 16
    27-73665 GASKET, WATER JACKET COVER
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    GASKET, WATER JACKET COVER
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 17
    76303 COVER, WATER JACKET - CYLINDER BLOCK
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    COVER, WATER JACKET - CYLINDER BLOCK
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 18
    10-53167T SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 19
    12-8M0042642 WASHER, WATER JACKET COVER FASTENING SCREW
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    WASHER, WATER JACKET COVER FASTENING SCREW
    - PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 20
    27-854981 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 21
    64107 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 22
    27-854961 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 23
    64108 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 24
    10-53576 SCREW, MANIFOLD COVER MOUNTING (1 1/8")
    SCREW, MANIFOLD COVER MOUNTING (1 1/8")
  • 25
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD COVER
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
    PLUG, PIPE - EXHAUST MANIFOLD COVER
    UNITED STATES 3865695 AND UP
    AUSTRALIA 8017140 AND UP
    BELGIUM 9053364 AND UP
    CANADA 7033028 AND UP
  • 26
    1021-7699 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 27
    27-85493 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 28
    10-21091 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")
    SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8")
  • 29
    11-20184 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
  • 30
    22-328022 PLUG, PIPE - CYLINDER BLOCK COVER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
    PLUG, PIPE - CYLINDER BLOCK COVER
    UNITED STATES 3865694 AND BELOW
    AUSTRALIA 8017139 AND BELOW
    BELGIUM 9053363 AND BELOW
    CANADA 7033027 AND BELOW
  • 31
    62302 COVER, TRANSFER PORT - TOP
    COVER, TRANSFER PORT - TOP
  • 31
    62301 COVER, TRANSFER PORT - BOTTOM
    COVER, TRANSFER PORT - BOTTOM
  • 32
    27-62107 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 33
    10-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")
    SCREW, TRANSFER PORT COVER MOUNTING (1")
  • 33
    10-49668 SCREW, TRANSFER PORT COVER MOUNTING (3/4")
    SCREW, TRANSFER PORT COVER MOUNTING (3/4")
  • 34
    37440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
  • 35
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 36
    46933A1 GROUND STRAP ASSEMBLY, EXHAUST COVER SCREW
    GROUND STRAP ASSEMBLY, EXHAUST COVER SCREW
  • 37
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
