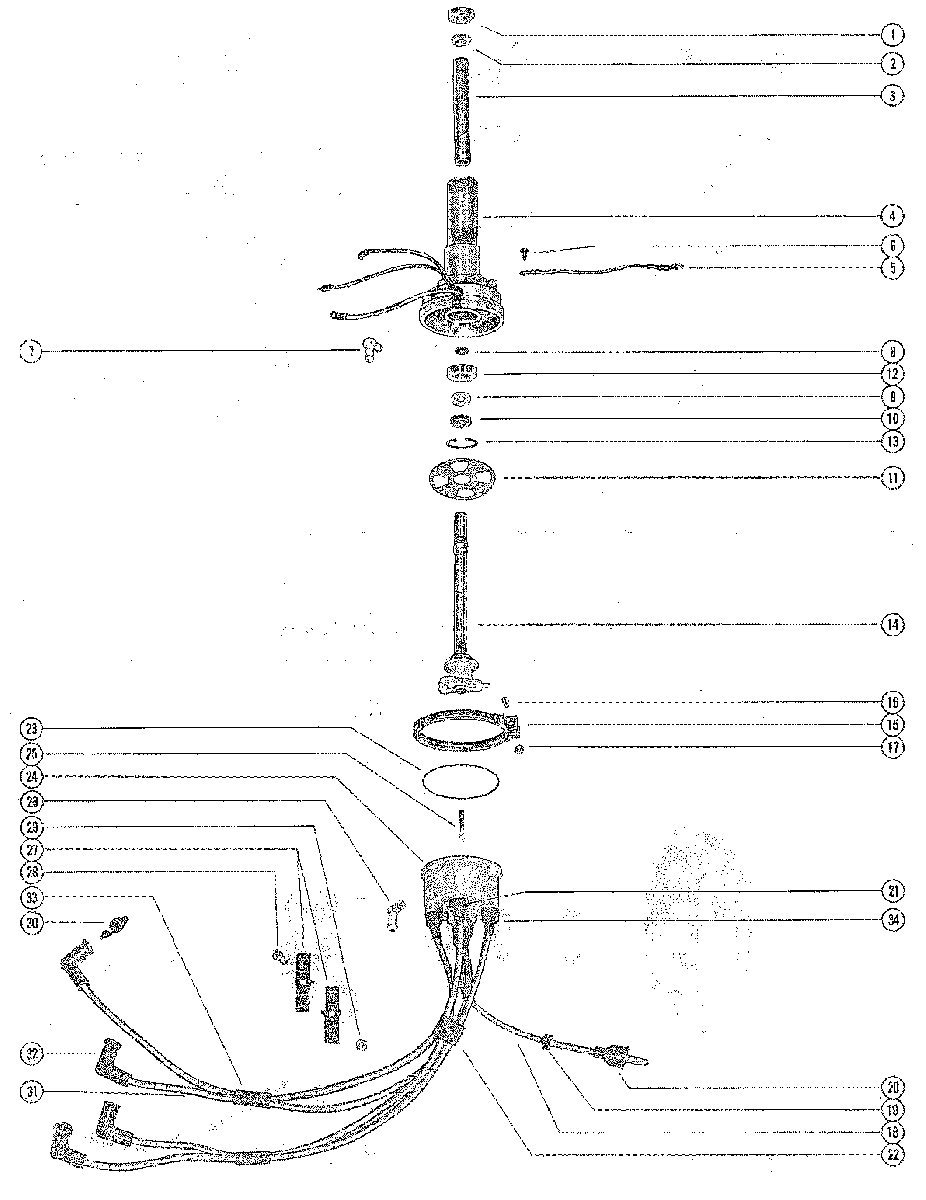

DISTRIBUTOR HOUSING AND ROTOR для Mercury - 850 (4 CYL.) 3493913 THRU 4366801
-
№АртикулНазвание
-
130-20066 BALL BEARING< DISTRIBUTOR HOUSING (UPPER)BALL BEARING< DISTRIBUTOR HOUSING (UPPER)
-
211-54209 NUT, ROTOR SHAFT TO DISTRIBUTOR HOUSINGNUT, ROTOR SHAFT TO DISTRIBUTOR HOUSING
-
323-53539 SLEEVE, ROTOR SHAFTSLEEVE, ROTOR SHAFT
-
4393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
553417 GROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASEGROUND STRAP ASSEMBLY, DISTRIBUTOR TO CRANKCASE
-
610-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
-
758807A1 FLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSINGFLAME ARRESTOR ASSEMBLY, DISTRIBUTOR HOUSING
-
815-21148A1 SHIM, ROTORSHIM, ROTOR
-
915-55853 SHIM, ROTORSHIM, ROTOR
-
1023-53538 SPACER, ROTOR SHAFTSPACER, ROTOR SHAFT
-
11393-3236 DISC, ROTORDISC, ROTOR
-
1230-26379 BALL BEARING, DISTRIBUTOR HOUSING (LOWER)BALL BEARING, DISTRIBUTOR HOUSING (LOWER)
-
1353-26406 RING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSINGRING, RETAINING - BALL BEARING TO DISTRIBUTOR HOUSING
-
14393-4371 ROTOR, DISTRIBUTORROTOR, DISTRIBUTOR
-
1554-60768 CLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSINGCLAMP, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
-
1610-65774 SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")SCREW, DISTRIBUTOR CAP CLAMP (1 1/8")
-
1711-26768 NUT, DISTRIBUTOR CAP CLAMP SCREWNUT, DISTRIBUTOR CAP CLAMP SCREW
-
1884-821945A4 CABLE ASSEMBLY, CAP TO COIL
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWCABLE ASSEMBLY, CAP TO COIL
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1884-821945A9 CABLE ASSEMBLY, CAP TO COIL
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPCABLE ASSEMBLY, CAP TO COIL
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1925-26547 GROMMET, CABLE (5/16")GROMMET, CABLE (5/16")
-
1925-56474 GROMMET, CABLE (7/8")GROMMET, CABLE (7/8")
-
20332-2854T01 BOOT, CABLE TO COILBOOT, CABLE TO COIL
-
2185-94589 SLEEVE, CABLESLEEVE, CABLE
-
2232-46398 SLEEVE, (LEADS 1, 2, 3, 4) - 3/4")SLEEVE, (LEADS 1, 2, 3, 4) - 3/4")
-
2327-55896 GASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSINGGASKET, DISTRIBUTOR CAP TO DISTRIBUTOR HOUSING
-
24393-3726A10 DISTRIBUTOR CAP ASSEMBLYDISTRIBUTOR CAP ASSEMBLY
-
25393-1293A1 BRUSH AND SPRING ASSEMBLYBRUSH AND SPRING ASSEMBLY
-
2658807A1 FLAME ARRESTOR ASSEMBLYFLAME ARRESTOR ASSEMBLY
-
2763319 RETAINER, LEADSRETAINER, LEADS
-
2810-46378 SCREW, LEAD RETAINER (1")SCREW, LEAD RETAINER (1")
-
2911-20013 NUT, RETAINER SCREWNUT, RETAINER SCREW
-
3033-97180Q SPARK PLUG (CHAMP L-77V)SPARK PLUG (CHAMP L-77V)
-
3184-813715A1 SPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERSSPARK PLUG LEAD ASSEMBLY #1, #2, #3, #4
ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS -
3285-63709A1 PROTECTOR, SPARK PLUG LEADPROTECTOR, SPARK PLUG LEAD
-
3332-46768 SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4)SLEEVE, SPARK PLUG LEAD (LEADS 1, 2, 3, 4)
-
3485-94589 SLEEVE, SPARK PLUG LEAD TO DISTRIBUTORSLEEVE, SPARK PLUG LEAD TO DISTRIBUTOR
