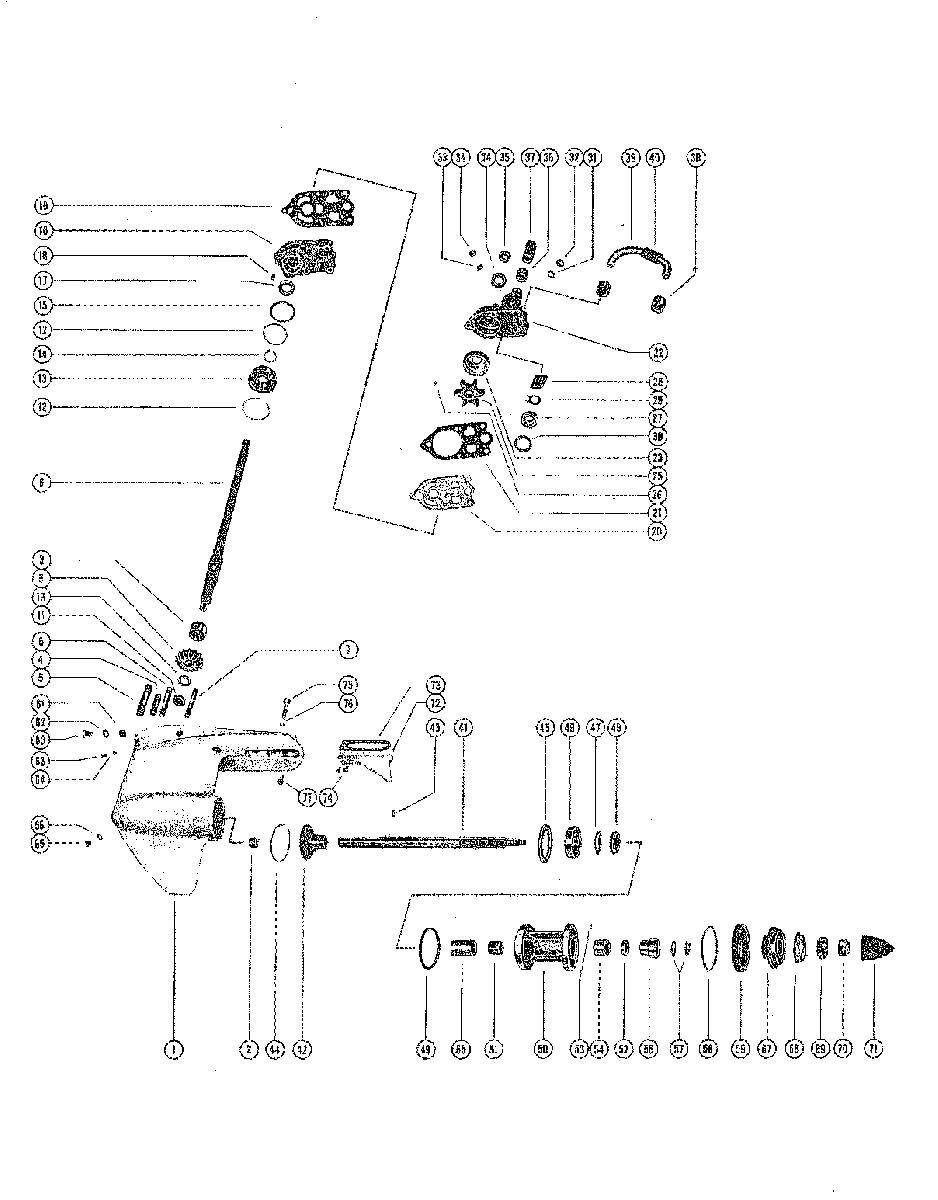

GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION) для Mercury - 800 (6 CYL.) 1335465 THRU 1398629

  • №
    Артикул
    Название
  • -
    1620-1748A2 GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (STANDARD SHAFT)
  • -
    1620-1748A3 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
  • 1
    1620-1748A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    31-62091T BEARING, ROLLER - PROPELLER SHFT
    BEARING, ROLLER - PROPELLER SHFT
  • 3
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 4
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2")
  • 5
    16-57935 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3")
  • 6
    16-68202 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3")
  • 7
    16-29974 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 5/16")
  • 7
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 7/16")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 7/16")
  • 8
    45-30234 DRIVE SHAFT (STANDARD)
    DRIVE SHAFT (STANDARD)
  • 8
    45-30220 DRIVE SHAFT (LONG)
    DRIVE SHAFT (LONG)
  • 9
    43-29961 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 10
    12-22025 WASHER, PINION GEAR TO RETAINING NUT
    WASHER, PINION GEAR TO RETAINING NUT
  • 11
    11-82671317 NUT, PINION GEAR RETAINING
    NUT, PINION GEAR RETAINING
  • 12
    15-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 13
    30-63326T BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 14
    53-30262 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 15
    25-26855 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 16
    46-30214A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 17
    26-26226 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    17-29596T PIN, DOWEL - WATER PUMP BASE TO BODY
    PIN, DOWEL - WATER PUMP BASE TO BODY
  • 19
    27-30216 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 20
    30215 PLATE, FACE - WATER PUMP BASE TO BODY
    PLATE, FACE - WATER PUMP BASE TO BODY
  • 21
    27-30933 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 22
    46-30931A1 WATER PUMP BODY ASSEMBLY (SEE NOTE BELOW)
    WATER PUMP BODY ASSEMBLY (SEE NOTE BELOW)
  • 23
    30915 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 24
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 25
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 26
    17-8M0034466 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • --
    25-20273 RING, RUBBER - WATER INLET TUBE
    RING, RUBBER - WATER INLET TUBE
  • 27
    22-26220A1 WATER VALVE AND ADAPTOR ASSEMBLY
    WATER VALVE AND ADAPTOR ASSEMBLY
  • 28
    21-26491 VALVE, WATER
    VALVE, WATER
  • 29
    54-26492 CLAMP, WATER VALVE TO ADAPTOR
    CLAMP, WATER VALVE TO ADAPTOR
  • 30
    15-21158A1 SHIM, VALVE ADAPTOR TO WATER PUMP BASE (.003-5-10)
    SHIM, VALVE ADAPTOR TO WATER PUMP BASE (.003-5-10)
  • 31
    13-26993 LOCKWASHER, WATER PUMP BODY STUDS (5/16")
    LOCKWASHER, WATER PUMP BODY STUDS (5/16")
  • 32
    11-28770 NUT, WATER PUMP BODY STUDS (5/16")
    NUT, WATER PUMP BODY STUDS (5/16")
  • 33
    13-26992 LOCKWASHER, WATER PUMP BODY STUDS (1/4)
    LOCKWASHER, WATER PUMP BODY STUDS (1/4)
  • 34
    11-29598 NUT, WATER PUMP BODY STUDS (1/4)
    NUT, WATER PUMP BODY STUDS (1/4)
  • 35
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 36
    26-38970 SEAL, RUBBER - WATER PUMP BODY
    SEAL, RUBBER - WATER PUMP BODY
  • 37
    23-29804T SLEEVE, WATER INLET TUBE GUIDE
    SLEEVE, WATER INLET TUBE GUIDE
  • 38
    26-29971 SEAL, RUBBER - WATER INTAKE TUBE TO GEAR HOUSING
    SEAL, RUBBER - WATER INTAKE TUBE TO GEAR HOUSING
  • 39
    32-29958A1 WATER INTAKE TUBE ASSEMBLY (LOWER)
    WATER INTAKE TUBE ASSEMBLY (LOWER)
  • 40
    23-29966 SLEEVE, WATER INTAKE TUBE
    SLEEVE, WATER INTAKE TUBE
  • 41
    44-29607 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 42
    43-29962 GEAR, PROPELLER
    GEAR, PROPELLER
  • 43
    17-26200 PIN, DOWEL - PROPELLER GEAR TO SHAFT
    PIN, DOWEL - PROPELLER GEAR TO SHAFT
  • 44
    15-29955A1 SHIM, THRUST RING TO GEAR HOUSIG(.002-3-5-10)
    SHIM, THRUST RING TO GEAR HOUSIG(.002-3-5-10)
  • 45
    12-29956 RING, THRUST - PROPELLER SHAFT
    RING, THRUST - PROPELLER SHAFT
  • 46
    30-20840 BEARING, BALL - PROPELLER GEAR
    BEARING, BALL - PROPELLER GEAR
  • 47
    14-28445 TAB WASHER, BEARING RETAINING NUT
    TAB WASHER, BEARING RETAINING NUT
  • 48
    11-28444 NUT, BALL BEARING RETAINING
    NUT, BALL BEARING RETAINING
  • 49
    25-29976 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 50
    30218A1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 51
    31-29610 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 52
    26-29593 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 53
    17-30282 PIN, LOCATING - BEARING CARRIER
    PIN, LOCATING - BEARING CARRIER
  • 54
    29621 RACE, INNER - CARRIER ROLLER BEARING
    RACE, INNER - CARRIER ROLLER BEARING
  • 55
    23-29588 SPACER, INNER - BEARING CARRIER
    SPACER, INNER - BEARING CARRIER
  • 56
    29609 SLEEVE, SEALING - PROPELLER SHAFT
    SLEEVE, SEALING - PROPELLER SHAFT
  • 57
    25-23145 "O" RING, SEALING SLEEVE
    "O" RING, SEALING SLEEVE
  • 58
    12-29957 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 59
    30111 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 60
    10-29608 SCREW, GEAR HOUSIG FLUSHING HOLE
    TO PRVIDE PROPER DRAINAGE, ORDER 10-31498 SCREW IN PLACE OF 10-30608 SCREW. 10-31498 SCREW HAS A 1/16" HOLE DRILLED THROUGH CENTER.
    SCREW, GEAR HOUSIG FLUSHING HOLE
    TO PRVIDE PROPER DRAINAGE, ORDER 10-31498 SCREW IN PLACE OF 10-30608 SCREW. 10-31498 SCREW HAS A 1/16" HOLE DRILLED THROUGH CENTER.
  • 61
    26-29612 SEAL, GEAR HOUSING FLUSHING HOLE
    SEAL, GEAR HOUSING FLUSHING HOLE
  • 62
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW
  • 63
    10-28653 SCREW. GEAR HOUSING VENT
    SCREW. GEAR HOUSING VENT
  • 63
    10-28653 SCREW, GEAR HOUSING VENT
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
    SCREW, GEAR HOUSING VENT
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
  • 64
    19643 WASHER, GEAR HOUSING VENT SCREW
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
    WASHER, GEAR HOUSING VENT SCREW
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
  • 65
    10-79953Q04 SCREW, GEAR HOUSING GREASE FILLER HOLE
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
    SCREW, GEAR HOUSING GREASE FILLER HOLE
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
  • 66
    12-191833 WASHER, GEAR HOUSING GREASE FILLER HOLE SCREW
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
    WASHER, GEAR HOUSING GREASE FILLER HOLE SCREW
    ON LATER PRODUCTION ENGINES, THE 10-28653 VENT SCREW AND 12-20262 WASHER ARE REPLACED BY 10-28634 SCREW AND 12-20260 WASHER.
  • 67
    29583A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 68
    12-29590 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 69
    12-29585 WASHER, CUPPED - PROPELLER SHAFT
    WASHER, CUPPED - PROPELLER SHAFT
  • 70
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 71
    29603 CAP, PROPELLER NUT - BLACK
    CAP, PROPELLER NUT - BLACK
  • 72
    30427A1 WATER,PICK-UP ASSEMBLY, GEAR HOUSING
    WATER,PICK-UP ASSEMBLY, GEAR HOUSING
  • 74
    10-30586 SCREW, WATER PICK-UP TO GEAR HOUSING (5/8")
    SCREW, WATER PICK-UP TO GEAR HOUSING (5/8")
  • 73
    27-30296 GASKET, WATER PICK-UP TO GEAR HOUSING
    GASKET, WATER PICK-UP TO GEAR HOUSING
  • 75
    10-30298 SCREW, WATER PICK-UP TO GEAR HOUSING (2 3/4")
    SCREW, WATER PICK-UP TO GEAR HOUSING (2 3/4")
  • 76
    13-26993 LOCKWASHER, WATER PICK-UP FASTENING SCREW
    LOCKWASHER, WATER PICK-UP FASTENING SCREW
  • 77
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
