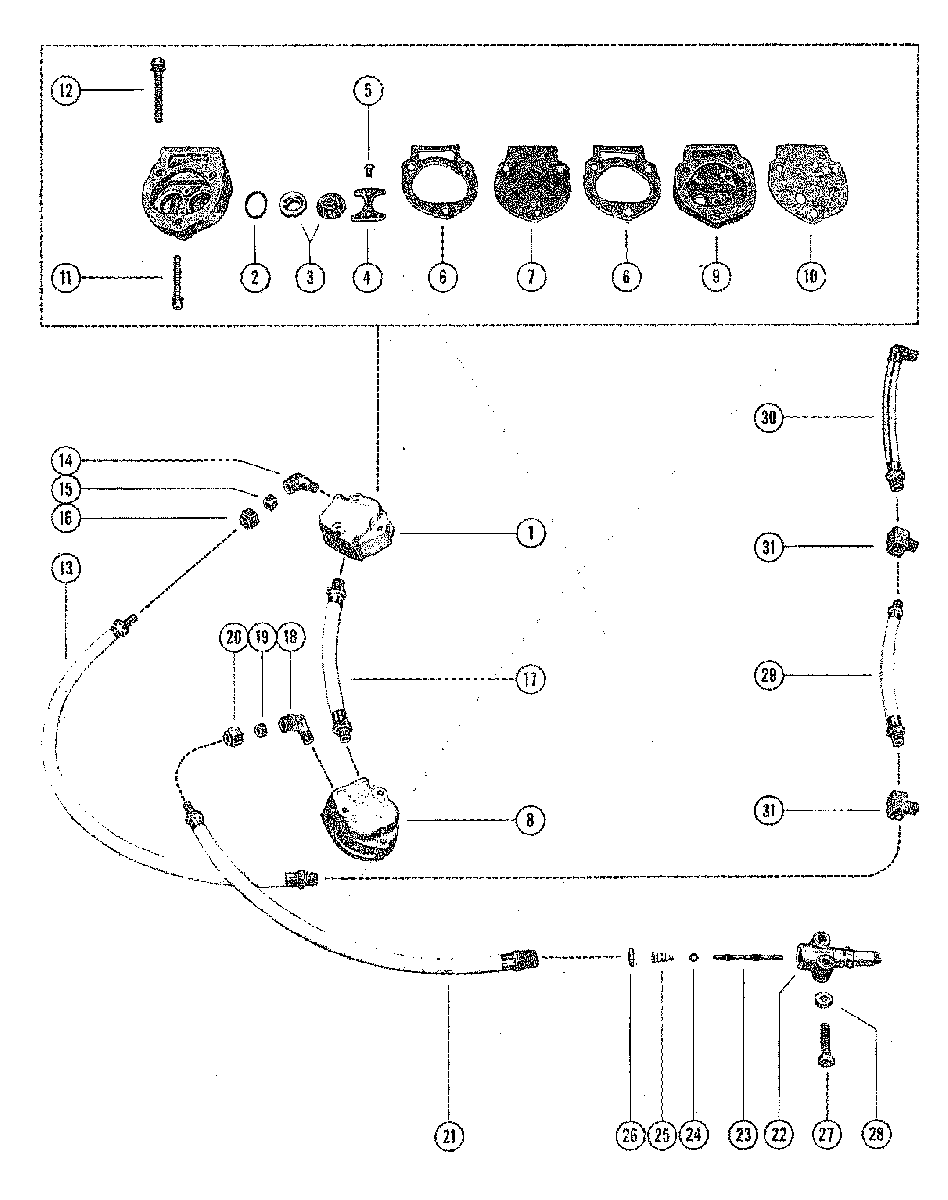

FUEL PUMP AND FUEL LINES для Mercury - 800 (6 CYL.) 1335465 THRU 1398629

  • №
    Артикул
    Название
  • 1
    30269A2 FUEL PUMP ASSEMBLY - UPPER (SEE NOTE BELOW)
    FUEL PUMP ASSEMBLY - UPPER (SEE NOTE BELOW)
  • 2
    27-23005 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 3
    21-8M0082362 VALVE, CHECK - FUEL PUMP
    VALVE, CHECK - FUEL PUMP
  • 4
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 5
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 6
    27-24863 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    23014 DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • 8
    23009A1 FUEL PUMP ASSEMBLY - LOWER
    FUEL PUMP ASSEMBLY - LOWER
  • 8
    30461A2 FUEL PUMP ASSEMBLY - LOWER
    FUEL PUMP ASSEMBLY - LOWER
  • 2
    27-23005 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 3
    21-8M0082362 VALVE, CHECK - FUEL PUMP
    VALVE, CHECK - FUEL PUMP
  • 4
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 5
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 6
    27-24863 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    23014 DIAPHRAGM, FUEL PUMP
    DIAPHRAGM, FUEL PUMP
  • 9
    30275 COVER, FUEL PUMP (LOWER) - (UPPER AND LOWER)
    COVER, FUEL PUMP (LOWER) - (UPPER AND LOWER)
  • 9
    30275 COVER, FUEL PUMP (LOWER) - (UPPER AND LOWER)
    COVER, FUEL PUMP (LOWER) - (UPPER AND LOWER)
  • 9
    29044 COVER. FUEL PUMP (UPPER)
    COVER. FUEL PUMP (UPPER)
  • 10
    27-30276 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 11
    10-29878 SCREW, FUEL PUMP MOUNTING (1 1/2")
    SCREW, FUEL PUMP MOUNTING (1 1/2")
  • 12
    10-30274 SCREW, FUEL PUMP MOUNTING (1 3/4") - UPPER PUMP
    SCREW, FUEL PUMP MOUNTING (1 3/4") - UPPER PUMP
  • 12
    10-30273 SCREW, FUEL PUMP MOUNTING (1 7/8") - LOWER PUMP
    SCREW, FUEL PUMP MOUNTING (1 7/8") - LOWER PUMP
  • 13
    32-30233 FUEL LINE, UPPER FUEL PUMP OUTLET TO LOWER CARBURETOR
    FUEL LINE, UPPER FUEL PUMP OUTLET TO LOWER CARBURETOR
  • 13
    32-30233 FUEL LINE, LOWER FUEL PUMP OUTLET TO LOWER CARBURETOR
    FUEL LINE, LOWER FUEL PUMP OUTLET TO LOWER CARBURETOR
  • --
    32-30467 FUEL LINE, UPPER FUEL PUMP OUTLET TO UPPER CARBURETOR
    FUEL LINE, UPPER FUEL PUMP OUTLET TO UPPER CARBURETOR
  • 14
    22-30174 ELBOW, UPPER FUEL PUMP OUTLET
    ELBOW, UPPER FUEL PUMP OUTLET
  • --
    22-30468 CONNECTOR, UPPER AND LOWER FUEL PUMP OUTLET
    CONNECTOR, UPPER AND LOWER FUEL PUMP OUTLET
  • 15
    22-30175 SLEEVE, FUEL PUMP OUTLET ELBOW OR CONNECTOR
    SLEEVE, FUEL PUMP OUTLET ELBOW OR CONNECTOR
  • 15
    22-30175 SLEEVE, FUEL PUMP OUTLET ELBOW OR CONNECTOR
    SLEEVE, FUEL PUMP OUTLET ELBOW OR CONNECTOR
  • 16
    22-30177 NUT, FUEL PUMP OUTLET ELBOW OR CONNECTOR
    NUT, FUEL PUMP OUTLET ELBOW OR CONNECTOR
  • 16
    22-30177 NUT, FUEL PUMP OUTLET ELBOW OR CONNECTOR
    NUT, FUEL PUMP OUTLET ELBOW OR CONNECTOR
  • 17
    32-30231 FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET
    FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET
  • 17
    32-17008 FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET
    FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET
  • 18
    22-30174 ELBOW, LOWER FUEL PUMP INLET
    ELBOW, LOWER FUEL PUMP INLET
  • 19
    22-30175 SLEEVE, LOWER FUEL PUMP INLET ELBOW
    SLEEVE, LOWER FUEL PUMP INLET ELBOW
  • 20
    22-30177 NUT, LOWER FUEL PUMP INLET ELBOW
    NUT, LOWER FUEL PUMP INLET ELBOW
  • 21
    32-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP
    FUEL LINE, ADAPTOR TO LOWER FUEL PUMP
  • 22
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 23
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 24
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 25
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 26
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 27
    10-56500 SCREW, ADAPTOR TO BOTTOM COWL
    SCREW, ADAPTOR TO BOTTOM COWL
  • 28
    11-20184 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
  • 29
    32-30230 FUEL LINE, UPPER TO CENTER TO LOWER CARBURETOR
    FUEL LINE, UPPER TO CENTER TO LOWER CARBURETOR
  • 29
    32-30230 FUEL LINE, UPPER TO CENTER TO LOWER CARBURETOR
    FUEL LINE, UPPER TO CENTER TO LOWER CARBURETOR
  • 30
    32-34243 FUEL LINE, UPPER TO CENTER CARBURETOR
    FUEL LINE, UPPER TO CENTER CARBURETOR
  • 31
    22-25956 TEE, CENTER AND LOWER CARBURETOR
    TEE, CENTER AND LOWER CARBURETOR
  • --
    22-286241 TEE, UPPER CARBURATOR
    TEE, UPPER CARBURATOR
