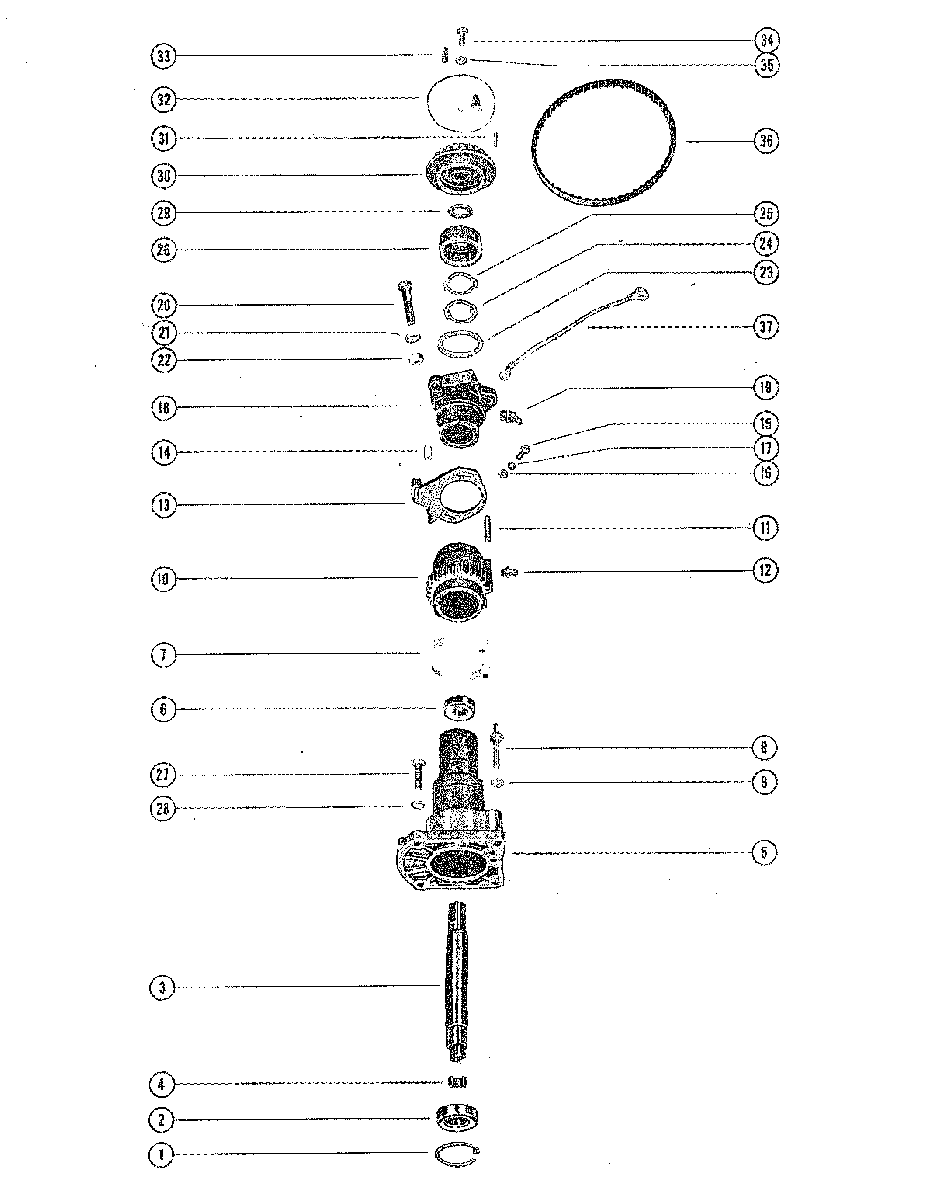

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 800 (6 CYL.) 1335465 THRU 1398629

  • №
    Артикул
    Название
  • 1
    53-26406 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 2
    30-26379 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 3
    45-29864A1 DRIVE SHAFT ASSEMBLY - DISTRIBUTOR
    DRIVE SHAFT ASSEMBLY - DISTRIBUTOR
  • 4
    24-28469 SPRING, DISTRIBUTOR DRIVE SHAFT
    SPRING, DISTRIBUTOR DRIVE SHAFT
  • 5
    29874A1 PILOT ASSEMBLY
    PILOT ASSEMBLY
  • 6
    30-20066 BEARING, BALL - DISTRIBUTOR PILOT
    BEARING, BALL - DISTRIBUTOR PILOT
  • 7
    24-29275 SPRING, HORSESHOE
    SPRING, HORSESHOE
  • 8
    17-27962 PIN, SPRING TERMINAL
    PIN, SPRING TERMINAL
  • 9
    12-29245 WASHER, SPRING TERMINAL PIN
    WASHER, SPRING TERMINAL PIN
  • 10
    43-29892A1 SECTOR GEAR AND PIN ASSEMBLY
    SECTOR GEAR AND PIN ASSEMBLY
  • 11
    17-27961 PIN, SPRING RETAINER
    PIN, SPRING RETAINER
  • 12
    22-69059 FITTING, GREASE - SECTOR GEAR
    FITTING, GREASE - SECTOR GEAR
  • 13
    29558A1 THROTTLE ACTUATOR ASSEMLBY
    THROTTLE ACTUATOR ASSEMLBY
  • 14
    23-26602 BUSHING, NYLON - THROTTLE ACTUATOR
    BUSHING, NYLON - THROTTLE ACTUATOR
  • 15
    10-69022 SCREW, THROTTLE ACTUATOR TO SECTOR GEAR
    SCREW, THROTTLE ACTUATOR TO SECTOR GEAR
  • 16
    12-847883 WASHER, THROTTLE ACTUATOR FASTENING SCREW
    WASHER, THROTTLE ACTUATOR FASTENING SCREW
  • 17
    13-26996 LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW
    LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW
  • 18
    30404 ADAPTOR, DISTRIBUTOR
    ADAPTOR, DISTRIBUTOR
  • 19
    22-25094 FITTING, GREASE - ADAPTOR
    FITTING, GREASE - ADAPTOR
  • 20
    10-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE
    SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE
  • 21
    12-20084 WASHER, ADAPTOR AND PILOT FASTENING SCREW
    WASHER, ADAPTOR AND PILOT FASTENING SCREW
  • 22
    11-22053 NUT, ADAPTOR AND PILOT FASTENING SCREW
    NUT, ADAPTOR AND PILOT FASTENING SCREW
  • 23
    12-27939 WASHER, THRUST - DISTRIBUTOR PILOT
    WASHER, THRUST - DISTRIBUTOR PILOT
  • 24
    14-27960 TAB WASHER, CAP LOCKING
    TAB WASHER, CAP LOCKING
  • 25
    13-27959 WASHER, WAVE - TAB WASHER TENSIOM
    WASHER, WAVE - TAB WASHER TENSIOM
  • 26
    27955 CAP, ADAPTOR AND PILOT FASTENING
    CAP, ADAPTOR AND PILOT FASTENING
  • 27
    10-28668 SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR
    SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR
  • 28
    13-26992 LOCKWASHER, ADAPTOR AND PILOT TO DIST. SCREW
    LOCKWASHER, ADAPTOR AND PILOT TO DIST. SCREW
  • 29
    23-29909 SPACER, DRIVEN PULLEY
    SPACER, DRIVEN PULLEY
  • 30
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 31
    17-29908 PIN, DRIVEN PULLEY
    PIN, DRIVEN PULLEY
  • 32
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 33
    28-29910 KEY, MAGNETO DRIVING
    KEY, MAGNETO DRIVING
  • 34
    10-41506 SCREW, PULLEY CLAMPING
    SCREW, PULLEY CLAMPING
  • 35
    13-26996 LOCKWASHER, PULLEY CLAMPING SCREW
    LOCKWASHER, PULLEY CLAMPING SCREW
  • 36
    20140 BELT, TIMING
    BELT, TIMING
  • 37
    30109 GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE
    GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE
