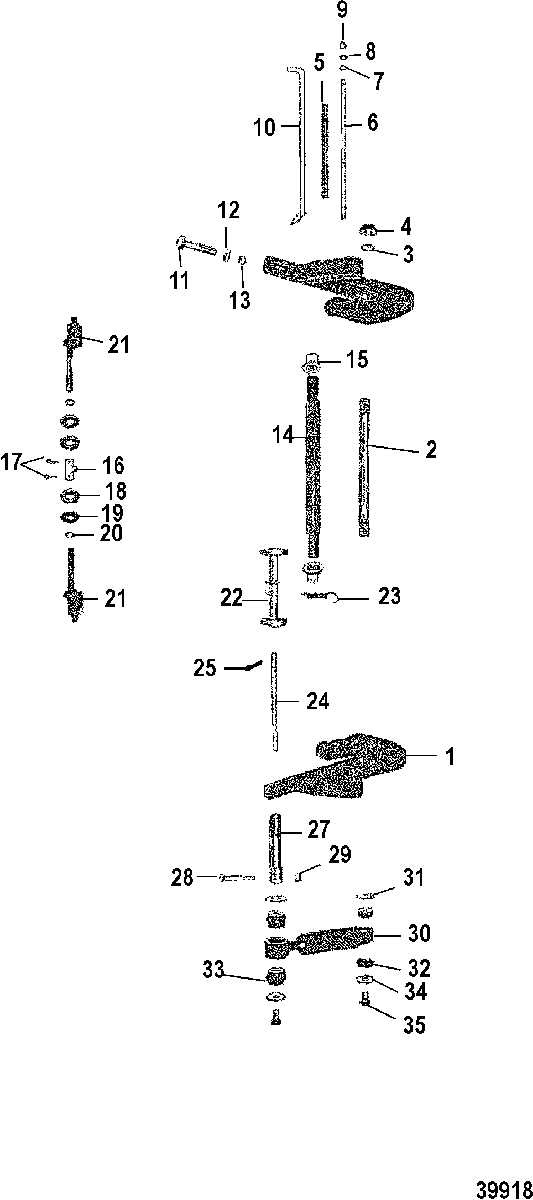

TRANSOM BRACKET(LONG SHAFT) для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 7146213 THRU 7208572
-
№АртикулНазвание
-
11496-8822A1 BRACKET, TransomBRACKET, Transom
-
289099 TILT TUBETILT TUBE
-
313-89297 WAVE WASHERWAVE WASHER
-
411-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
523-87642 SPACER, TRANSOM BRACKET STUDSPACER, TRANSOM BRACKET STUD
-
616-87643 STUD
NON POWER TRIMSTUD
NON POWER TRIM -
712-36001 WASHER, TRANSOM BRACKET STUDWASHER, TRANSOM BRACKET STUD
-
813-26993 LOCKWASHER, (.312), TRANSOM BRACKET STUDLOCKWASHER, (.312), TRANSOM BRACKET STUD
-
911-28770 NUT, (.312-24) Stainless Steel, TRANSOM BRACKET STUDNUT, (.312-24) Stainless Steel, TRANSOM BRACKET STUD
-
1017-8M0026068 PIN ASSEMBLY, Tilt Lock
NON POWER TRIMPIN ASSEMBLY, Tilt Lock
NON POWER TRIM -
1110-89673 SCREW, (.375-16 x 5.00), TRANSOM BRACKET TO TRANSOMSCREW, (.375-16 x 5.00), TRANSOM BRACKET TO TRANSOM
-
1212-46765 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-82671112 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1110-677552 BOLT, TRANSOM BRACKET TO TRANSOM (6")BOLT, TRANSOM BRACKET TO TRANSOM (6")
-
1212-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLTWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT
-
1311-91962 NUT, (.500-20), TRANSOM BRACKET BOLTNUT, (.500-20), TRANSOM BRACKET BOLT
-
1489116 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1523-89117 BUSHING, UPPER SHOCK MOUNTING PINBUSHING, UPPER SHOCK MOUNTING PIN
-
1679659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1718-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
1826-22734 SEAL, Oil, SWIVEL BRACKET (TILT LOCK)SEAL, Oil, SWIVEL BRACKET (TILT LOCK)
-
1912-76388 WASHER, TILT LOCKWASHER, TILT LOCK
-
2025-627021 O-RING, (.301 x .070), TILT LOCKO-RING, (.301 x .070), TILT LOCK
-
2189105 TILT LOCKTILT LOCK
-
2287431 LOCK ASSEMBLY, Reverse
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowLOCK ASSEMBLY, Reverse
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
2214664A3 LOCK ASSEMBLY, Reverse
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpLOCK ASSEMBLY, Reverse
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
2324-78203A2 SPRING
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowSPRING
NON POWER TRIM SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
2324-78203A2 SPRING
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpSPRING
NON POWER TRIM SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
2456349 SHAFT, REVERSE LOCK PIVOT
NON POWER TRIMSHAFT, REVERSE LOCK PIVOT
NON POWER TRIM -
2518-45882 COTTER PIN, LOCK TO SHAFT
NON POWER TRIMCOTTER PIN, LOCK TO SHAFT
NON POWER TRIM -
2755-28414 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
2810-21937 SCREW, LOWER SHOCK PIN (2")SCREW, LOWER SHOCK PIN (2")
-
2911-20184 NUT, (1/4-28X7/32), LOWER SHOCK PIN SCREWNUT, (1/4-28X7/32), LOWER SHOCK PIN SCREW
-
3055-58780A7 SHOCK ABSORBER MERCURY
NON POWER TRIMSHOCK ABSORBER MERCURY
NON POWER TRIM -
3112-28196 WASHER, UPPER BUSHING RETAINER (INNER)
NON POWER TRIMWASHER, UPPER BUSHING RETAINER (INNER)
NON POWER TRIM -
3223-32171 BUSHING, RUBBER, - SHOCK ABSORBER (UPPER)
NON POWER TRIMBUSHING, RUBBER, - SHOCK ABSORBER (UPPER)
NON POWER TRIM -
3323-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
NON POWER TRIMBUSHING, RUBBER - SHOCK ABSORBER (LOWER)
NON POWER TRIM -
3412-69374 WASHER, UPPER/LOWER SHOCK PIN (LOWER)
NON POWER TRIMWASHER, UPPER/LOWER SHOCK PIN (LOWER)
NON POWER TRIM -
3510-69375 SCREW, UPPER AND LOWER SHOCK PIN
NON POWER TRIMSCREW, UPPER AND LOWER SHOCK PIN
NON POWER TRIM -
-27-73645A87 GASKET SETGASKET SET
