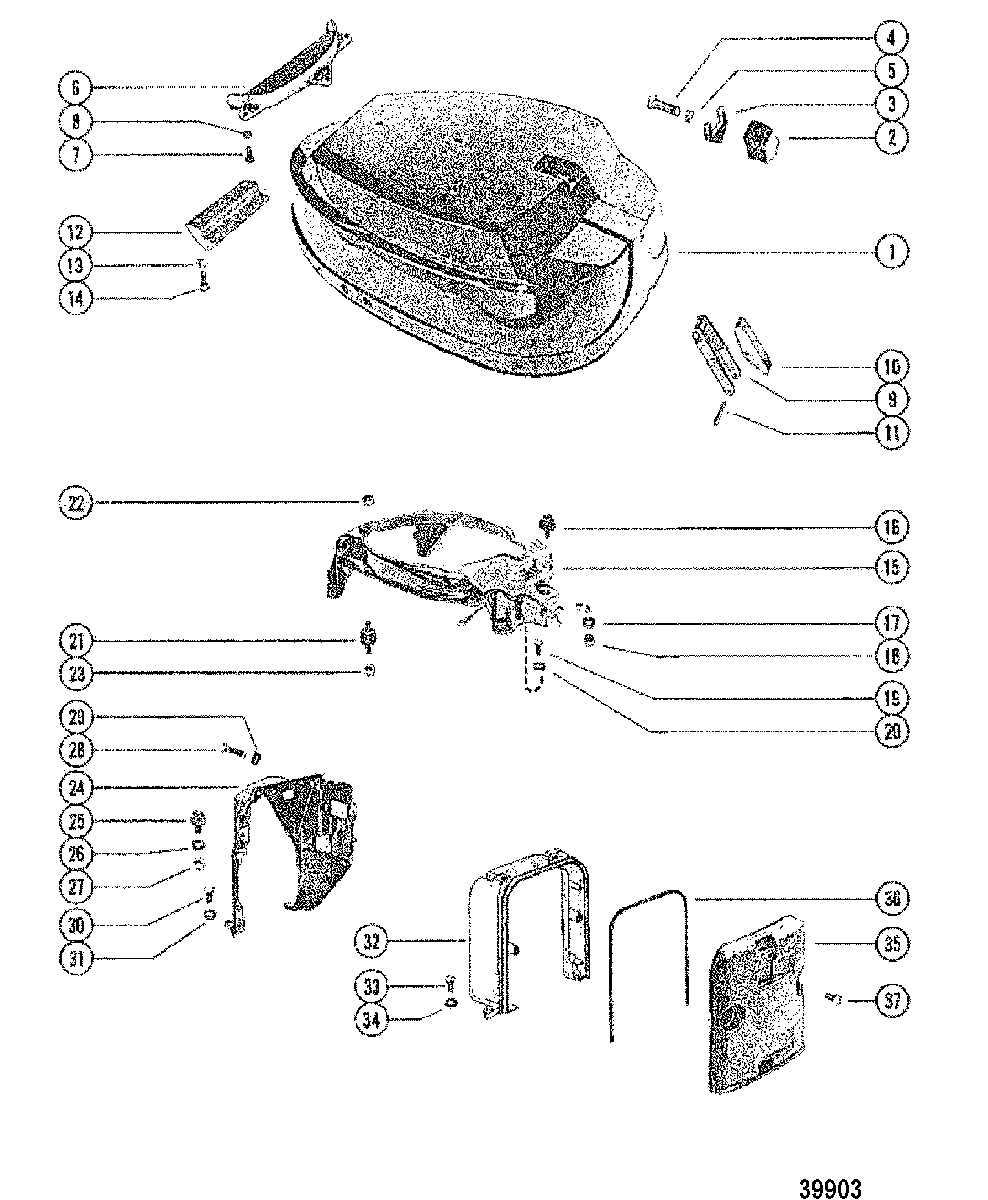

TOP COWL AND SUPPORT BRACKETS для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 7146213 THRU 7208572
-
№АртикулНазвание
-
12114-7934T COWL, TOP (WITHOUT DECALS)
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowCOWL, TOP (WITHOUT DECALS)
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
12114-7934T TOP COWL ASSEMBLY (WITHOUT DECALS)
SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpTOP COWL ASSEMBLY (WITHOUT DECALS)
SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
293122A1 RETAINER ASSEMBLY, TOP COWL
SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpRETAINER ASSEMBLY, TOP COWL
SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
252733A9 RETAINER ASSEMBLY, TOP COWL
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowRETAINER ASSEMBLY, TOP COWL
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
327-25496 GASKET, BUMPER - TOP COWL RETAINER
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowGASKET, BUMPER - TOP COWL RETAINER
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
410-74824 SCREW, (.312-18 x 1.250), RETAINER TO TO COWL
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & BelowSCREW, (.312-18 x 1.250), RETAINER TO TO COWL
SN# USA-5824647/Australia-8070909/Belgium-9299905/Canada-7169657 & Below -
410-53167T SCREW, (.312-18 x .880), RETAINER TO TOP COWL
SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & UpSCREW, (.312-18 x .880), RETAINER TO TOP COWL
SN# USA-5824648/Australia-8070910/Belgium-9299906/Canada-7169658 & Up -
513-39107 LOCKWASHER, (.312-24), RETAINER SCREWLOCKWASHER, (.312-24), RETAINER SCREW
-
676370 SHIELD, TOP COWL - REARSHIELD, TOP COWL - REAR
-
710-37370 SCREW, (#10-32 x .580), SHIELD TO TOP COWLSCREW, (#10-32 x .580), SHIELD TO TOP COWL
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
952739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1094918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1117-58998 PIN, COWL LATCH LEVER TO HINGEPIN, COWL LATCH LEVER TO HINGE
-
1255455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREWLOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW
-
1410-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWLSCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
-
1573401T FRAME, SUPPORT - TOP COWLFRAME, SUPPORT - TOP COWL
-
1637640 MOUNT, RUBBER - SUPPORT FRAMEMOUNT, RUBBER - SUPPORT FRAME
-
1713-26993 LOCKWASHER, (.312), RUBBER MOUNTLOCKWASHER, (.312), RUBBER MOUNT
-
1811-28770 NUT, (.312-24) Stainless Steel, RUBBER MOUNTNUT, (.312-24) Stainless Steel, RUBBER MOUNT
-
1910-37562 SCREW, (.312-18 x 1.00) Stainless Steel, SUPPORT FRAME TO FRONT FRAMESCREW, (.312-18 x 1.00) Stainless Steel, SUPPORT FRAME TO FRONT FRAME
-
2013-26993 LOCKWASHER, (.312), SUPPORT FRAME SCREWLOCKWASHER, (.312), SUPPORT FRAME SCREW
-
2190435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
2211-35888 NUT, (.250-28) Stainless Steel, RUBBER MOUNT (UPPER)NUT, (.250-28) Stainless Steel, RUBBER MOUNT (UPPER)
-
2311-20184 NUT, (1/4-28), RUBBER MOUNT (LOWER)NUT, (1/4-28), RUBBER MOUNT (LOWER)
-
2452468 BRACKET, TROP COWL SUPPORT - REARBRACKET, TROP COWL SUPPORT - REAR
-
2531014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2613-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNTLOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
-
2711-29598 NUT, (.250-28) Stainless Steel, RUBBER MOUNTNUT, (.250-28) Stainless Steel, RUBBER MOUNT
-
2810-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAMESCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
-
2913-26993 LOCKWASHER, (.312), REAR BRACKET SCREWLOCKWASHER, (.312), REAR BRACKET SCREW
-
3010-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO BOTTOM COWLSCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO BOTTOM COWL
-
3113-26993 LOCKWASHER, (.312), REAR BRACKET SCREWLOCKWASHER, (.312), REAR BRACKET SCREW
-
3299649T FRAME, FRONT SUPPORTFRAME, FRONT SUPPORT
-
3310-37562 SCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVERSCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVER
-
3413-26993 LOCKWASHER, (.312), FRAME SCREWLOCKWASHER, (.312), FRAME SCREW
-
3589590 COVER, SILENCERCOVER, SILENCER
-
3627-76168A2 GASKET, SILENCER COVERGASKET, SILENCER COVER
-
3710-28638 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
