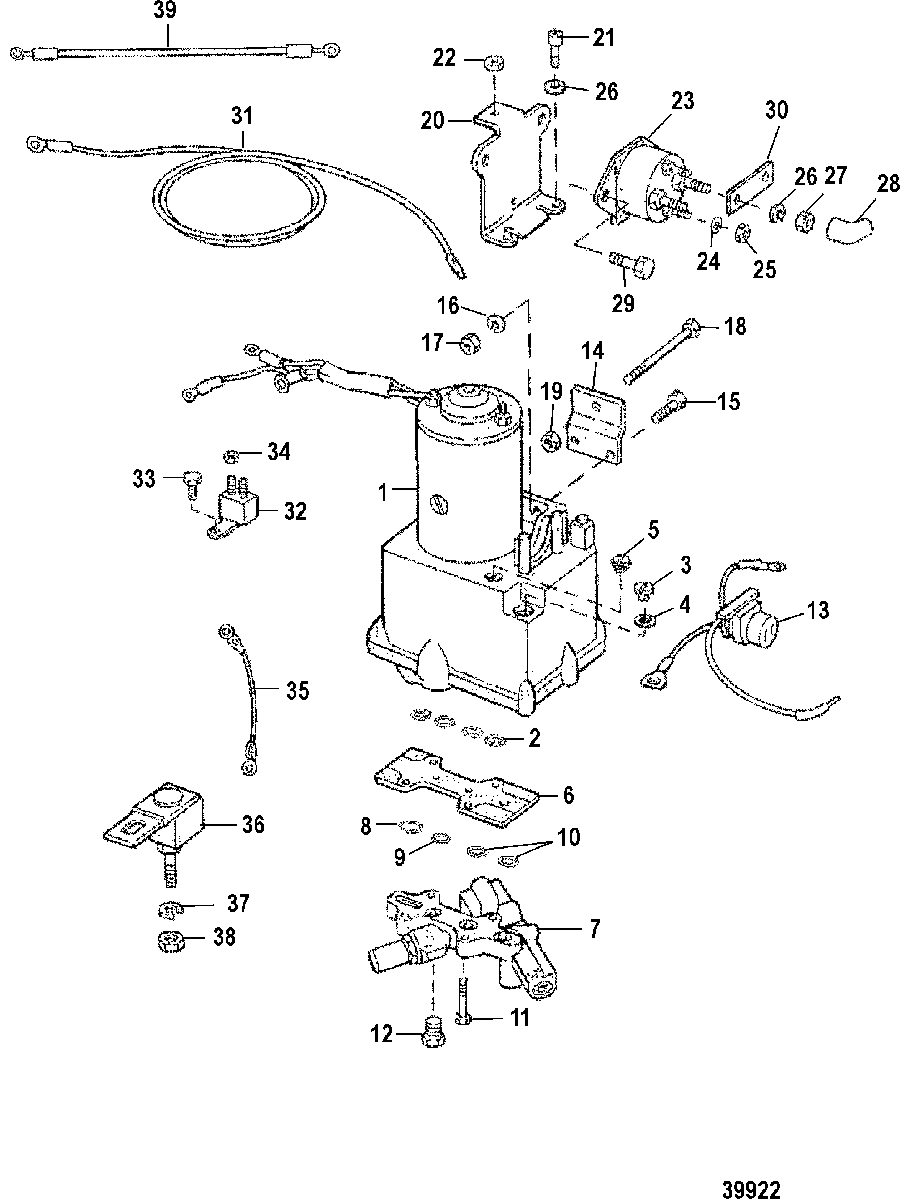

POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE) для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 7146213 THRU 7208572

  • №
    Артикул
    Название
  • 1
    92975A32 PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)
    PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)
  • 2
    25-48171 O-RING, (.364. x .070), MANIFOLD PLATE
    O-RING, (.364. x .070), MANIFOLD PLATE
  • 3
    10-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
    SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
  • 4
    12-191833 WASHER, SEALING - FILLER SCREW
    WASHER, SEALING - FILLER SCREW
  • 5
    10-62269 SCREW, VENT - HYDRAULIC PUMP
    SCREW, VENT - HYDRAULIC PUMP
  • 6
    45336 PLATE, MANIFOLD
    PLATE, MANIFOLD
  • 7
    45197A2 VALVE ASSEMBLY, Control
    VALVE ASSEMBLY, Control
  • --
    25-48171 O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)
    O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)
  • 8
    25-45254 O-RING, CONTROL VALVE (3/4" O.D.)
    O-RING, CONTROL VALVE (3/4" O.D.)
  • 9
    25-48171 O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)
    O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)
  • 10
    25-45253 O-RING, CONTROL VALVE (5/8" O.D.)
    O-RING, CONTROL VALVE (5/8" O.D.)
  • 11
    10-56500 SCREW, (.250-28 x 1.250), VALVE AND MANIFOLD PLATE TO PUMP
    SCREW, (.250-28 x 1.250), VALVE AND MANIFOLD PLATE TO PUMP
  • 12
    22-46008 PLUG, CONTROL VALVE (1/2-20")
    PLUG, CONTROL VALVE (1/2-20")
  • 13
    84-79147A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 14
    45377T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 15
    10-35386 SCREW, (.312-18 x 1.00), MOUNTING BRACKET TO HYDRAULIC PUMP
    SCREW, (.312-18 x 1.00), MOUNTING BRACKET TO HYDRAULIC PUMP
  • 16
    13-39107 LOCKWASHER, (.312-24), MOUNTING BRACKET SCREW
    LOCKWASHER, (.312-24), MOUNTING BRACKET SCREW
  • 17
    11-21908 NUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREW
    NUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREW
  • 18
    10-68298 BOLT, (.375-16 x 3.250), HYDRAULIC PUMP TO BOAT
    BOLT, (.375-16 x 3.250), HYDRAULIC PUMP TO BOAT
  • 19
    11-82671112 NUT, HYDRAULIC PUMP BOLT
    NUT, HYDRAULIC PUMP BOLT
  • 20
    94279 BRACKET, MOUNTING, STARTER SOLENOID
    BRACKET, MOUNTING, STARTER SOLENOID
  • 21
    10-28638 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP
    SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP
  • 22
    11-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • 23
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 24
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
  • 25
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
    NUT, (#8-32) Brass, SOLENOID TERMINAL
  • 26
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
  • 27
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
    NUT, (.250-20) Brass, SOLENOID TERMINAL
  • 28
    85-861680 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 29
    10-41508 SCREW, STARTER SOLENOID TO MOUNTING BRACKET
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET
  • 30
    94275 LINK, SOLENOID TO SOLENOID
    LINK, SOLENOID TO SOLENOID
  • 31
    84-79139A13 CABLE ASSEMBLY, Battery (POSITIVE)
    CABLE ASSEMBLY, Battery (POSITIVE)
  • 31
    84-79138A1 CABLE ASSEMBLY (NEGATIVE)
    CABLE ASSEMBLY (NEGATIVE)
  • 32
    88-8M0085705 BREAKER, Circuit - 20 Ampere
    BREAKER, Circuit - 20 Ampere
  • 33
    10-8M0113176 SCREW, CIRCUIT BREAKER
    SCREW, CIRCUIT BREAKER
  • 34
    11-45076 NUT, (#10-32) Brass, CIRCUIT BREAKER TERMINAL
    NUT, (#10-32) Brass, CIRCUIT BREAKER TERMINAL
  • 35
    84-87379A5 WIRE, SOLENOID TO CIRCUIT BREAKER (RED)
    WIRE, SOLENOID TO CIRCUIT BREAKER (RED)
  • 36
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 37
    12-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
    WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
  • 38
    11-21825 NUT, (.250-28), FUSE TERMINAL
    NUT, (.250-28), FUSE TERMINAL
  • 39
    84-61600A9 WIRE, STARTER SOLENOID (BLACK)
    WIRE, STARTER SOLENOID (BLACK)
