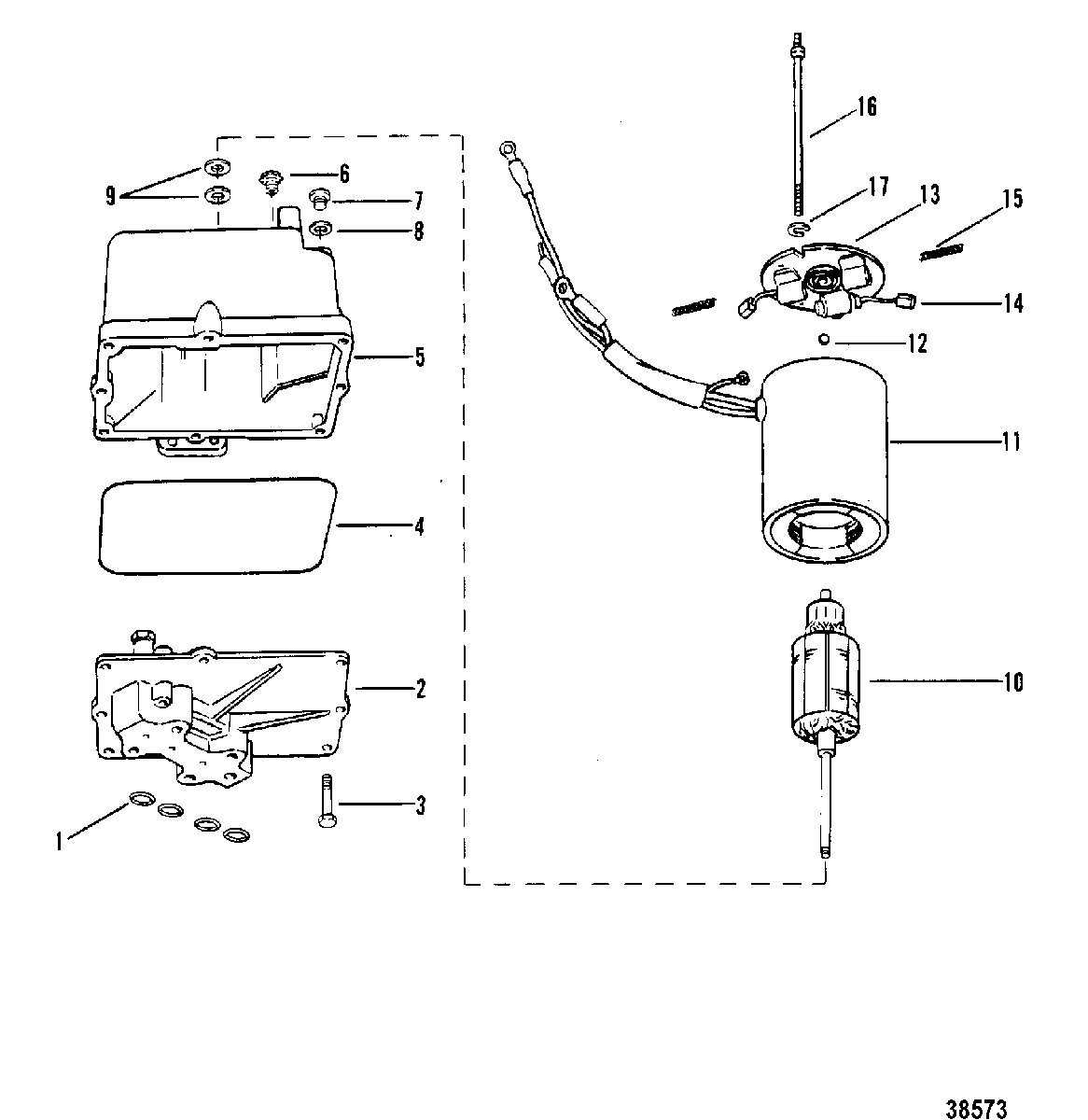

HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR) для Mercury - 800 (4 CYL. ), 80 (4 CYL.) 7146213 THRU 7208572

  • №
    Артикул
    Название
  • -
    92975A32 PUMP ASSEMBLY, Hydraulic, COMPLETE
    PUMP ASSEMBLY, Hydraulic, COMPLETE
  • 1
    25-48171 O-RING, (.364. x .070), HYDRAULIC PUMP
    O-RING, (.364. x .070), HYDRAULIC PUMP
  • 2
    392-7734 VALVE BODY AND GEAR ASSEMBLY
    VALVE BODY AND GEAR ASSEMBLY
  • 3
    10-20411 SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR
    SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR
  • 4
    392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEAR
    SEAL, RESERVOIR TO VALVE BODY AND GEAR
  • 5
    392-2939 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • 6
    10-62269 SCREW, VENT - HYDRAULIC PUMP
    SCREW, VENT - HYDRAULIC PUMP
  • 7
    10-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
    SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
  • 8
    12-191833 WASHER, SEALING - FILLER SCREW
    WASHER, SEALING - FILLER SCREW
  • 9
    392-2623 WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 10
    392-2943 ARMATURE, FIELD AND FRAME
    ARMATURE, FIELD AND FRAME
  • 11
    392-2942 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 12
    392-2944 BALL, COMMUTATOR END PLATE
    BALL, COMMUTATOR END PLATE
  • 13
    392-2940 PLATE ASSEMBLY, COMMUTATOR END
    PLATE ASSEMBLY, COMMUTATOR END
  • 14
    392-8989 BRUSH SET, COMMUTATOR END PLATE
    BRUSH SET, COMMUTATOR END PLATE
  • 15
    392-2529 SPRING SET, BRUSH TENSION
    SPRING SET, BRUSH TENSION
  • 16
    392-2938 BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
    BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
  • 17
    13-26996 LOCKWASHER, (#10) Stainless Steel, THRU BOLT
    LOCKWASHER, (#10) Stainless Steel, THRU BOLT
