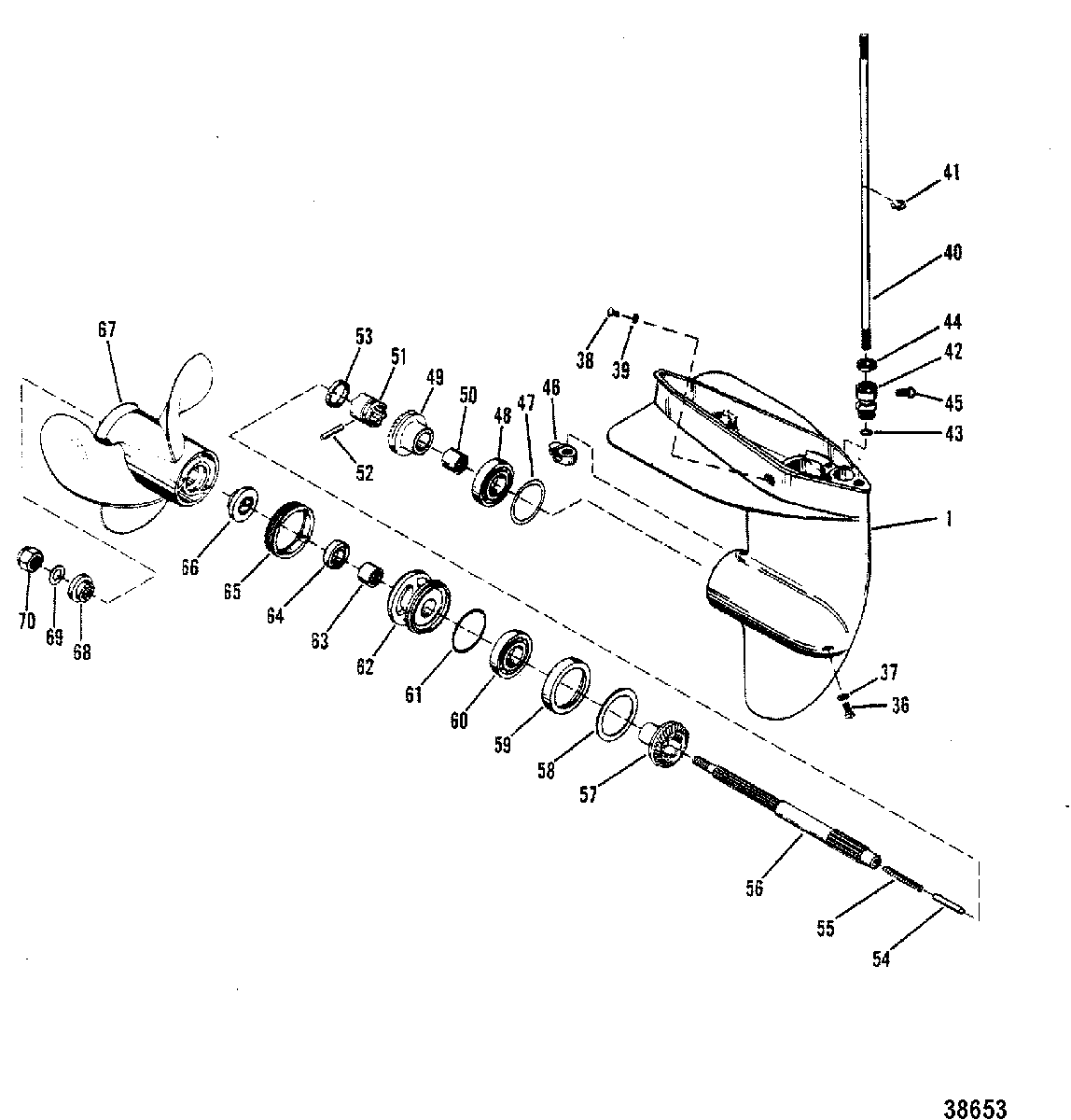

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 7.5 9217756 & Up
-
№АртикулНазвание
-
-1630-7360A12 GEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowGEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
-1630-7360A13 GEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowGEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
-1630-7360A29 GEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpGEAR HOUSING ASSEMBLY
(SHORT) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
-1630-7360A30 GEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpGEAR HOUSING ASSEMBLY
(LONG) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
11630-7360A11 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
3610-79953Q04 SCREW, (.375-16 x .250), GREASE FILLER HOLESCREW, (.375-16 x .250), GREASE FILLER HOLE
-
3712-191833 WASHER, GREASE FILLER HOLE SCREWWASHER, GREASE FILLER HOLE SCREW
-
3810-28653 SCREW, (#10-32 x 0.25), VENT HOLESCREW, (#10-32 x 0.25), VENT HOLE
-
3919643 WASHER, VENT HOLE SCREWWASHER, VENT HOLE SCREW
-
4071659A1 SHIFT SHAFT ASSEMLBY
(SHORT SHAFT)SHIFT SHAFT ASSEMLBY
(SHORT SHAFT) -
4071658A1 SHIFT SHAFT ASSEMBLY
(LONG SHAFT)SHIFT SHAFT ASSEMBLY
(LONG SHAFT) -
4153-22899 RING, Retaining, SHIFT SHAFTRING, Retaining, SHIFT SHAFT
-
4223-30676A1 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4325-26802 O-RING, (.424 x .103), SHIFT SHAFT BUSHINGO-RING, (.424 x .103), SHIFT SHAFT BUSHING
-
4426-30696 SEAL, Oil, SHIFT SHAFT BUSHINGSEAL, Oil, SHIFT SHAFT BUSHING
-
4510-39149 SCREW, (#10-24 x .500), SHIFT SHAFT BUSHINGSCREW, (#10-24 x .500), SHIFT SHAFT BUSHING
-
4644434 CAM, SHIFTCAM, SHIFT
-
4715-30522A1 SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)SHIM ASSEMBLY, BALL BEARING (.002-3-5-10)
-
4830-21889 BEARING, Ball, FOWARD GEARBEARING, Ball, FOWARD GEAR
-
4943-48577A3 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5031-22458 BEARING, Roller, FORWARD GEARBEARING, Roller, FORWARD GEAR
-
5152-63314 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5217-30535 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
5353-32449 RING, Retaining, CROSS PINRING, Retaining, CROSS PIN
-
5431334 FOLLOWER, SHIFT CAMFOLLOWER, SHIFT CAM
-
5524-76298 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5644-75667A2 PROELLER SHAFT ASSEMBLYPROELLER SHAFT ASSEMBLY
-
5743-63316 GEAR, ReverseGEAR, Reverse
-
5815-30532A1 SHIM ASSEMBLY, THRUST WASHER (.002-3-5-10)SHIM ASSEMBLY, THRUST WASHER (.002-3-5-10)
-
5971479 SLEEVE, THRUST - REVERSE GEARSLEEVE, THRUST - REVERSE GEAR
-
6030-21889 BEARING, Ball, REVERSE GEARBEARING, Ball, REVERSE GEAR
-
6125-30529 O-RING, (1.925 x .103), BEARING CARRIERO-RING, (1.925 x .103), BEARING CARRIER
-
6272673T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6331-22458 BEARING, Roller, BEARING CARRIERBEARING, Roller, BEARING CARRIER
-
6426-66022 SEAL, Oil, BEARING CARRIERSEAL, Oil, BEARING CARRIER
-
6586236 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
6686665A1 COLLAR, PROPELLER GUIDECOLLAR, PROPELLER GUIDE
-
6748-47670A10 PROPELLER (SHIPPED WITH ENGINE)
MERC 7.5PROPELLER (SHIPPED WITH ENGINE)
MERC 7.5 -
6748-87572A10 PROPELLER (SHIPPED WITH ENGINE)
MERC 9.8PROPELLER (SHIPPED WITH ENGINE)
MERC 9.8 -
6748-47922A10 PROPELLER
(9" DIA., PITCH, 2 BLADES, ALUMINUM)PROPELLER
(9" DIA., PITCH, 2 BLADES, ALUMINUM) -
6748-47922A10 PROBPELLER
(9" DIA., 10" PITCH, 2 BLADES, ALMINUM)PROBPELLER
(9" DIA., 10" PITCH, 2 BLADES, ALMINUM) -
6811-64075A1 SPACER, PROPELLER SHAFTSPACER, PROPELLER SHAFT
-
6912-79552 WASHER, (.453 x .750 x .062) Stainless Steel, PROPELLER SHAFT
SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & BelowWASHER, (.453 x .750 x .062) Stainless Steel, PROPELLER SHAFT
SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & Below -
7011-64075A1 PROP NUT KIT, PROPELLER
SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & BelowPROP NUT KIT, PROPELLER
SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & Below -
7011-64075A1 NUT, PROPELLER
SN# USA-5524660/Aus-8063635/Bel-9246206/Can-7143038 & UpNUT, PROPELLER
SN# USA-5524660/Aus-8063635/Bel-9246206/Can-7143038 & Up -
-27-89014A80 GASKET SETGASKET SET
