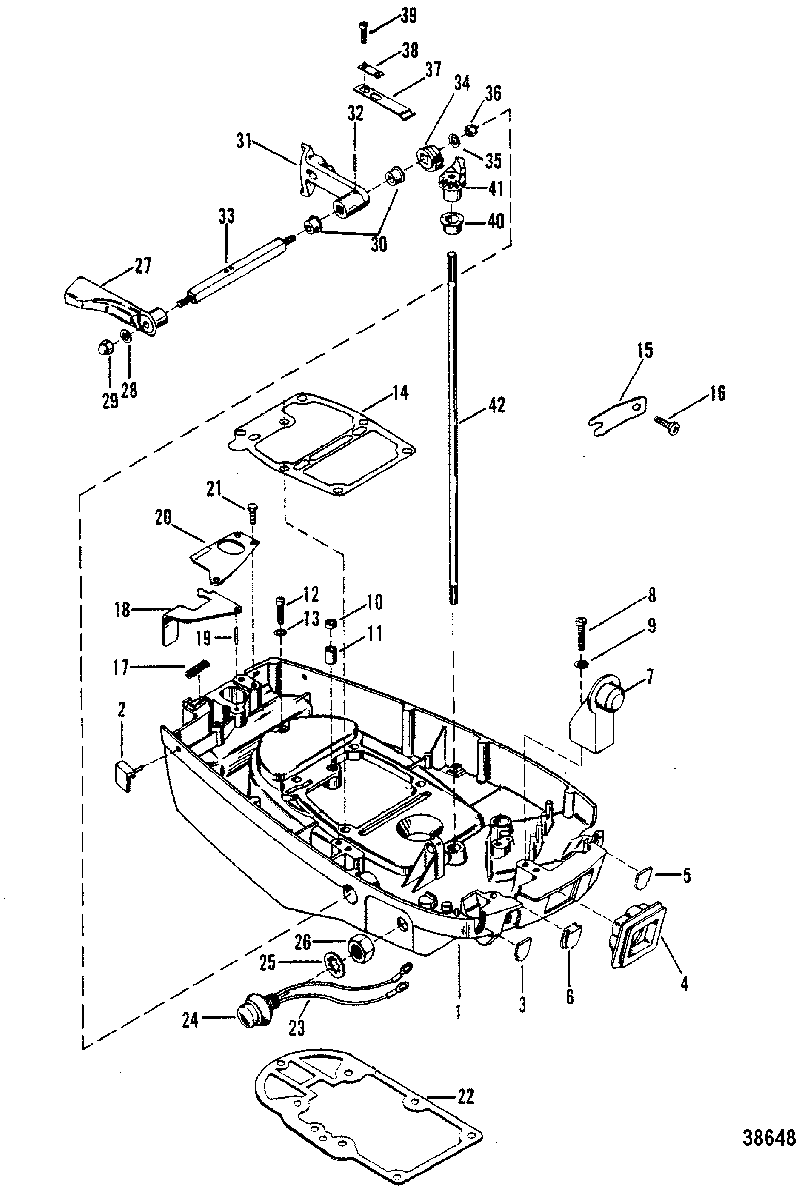

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 7.5 9217756 & Up
-
№АртикулНазвание
-
12159-6587A5 COWL ASSEMBLY, BOTTOMCOWL ASSEMBLY, BOTTOM
-
219-95925 PLUG, BOTTOM COWLPLUG, BOTTOM COWL
-
374360 PLUG, BOTTOM COWLPLUG, BOTTOM COWL
-
439778 GROMMET, CHOKE SHAFT - BOTTOM COWLGROMMET, CHOKE SHAFT - BOTTOM COWL
-
566353 COVER, ACCESS HOLECOVER, ACCESS HOLE
-
665479 COVER, ACCESS HOLECOVER, ACCESS HOLE
-
739474 ANCHOR, LATCH - BOTTOM COWLANCHOR, LATCH - BOTTOM COWL
-
810-22483 SCREW, (.250-28 x 1.12), LATCH ANCHORSCREW, (.250-28 x 1.12), LATCH ANCHOR
-
913-26992 LOCKWASHER, (.250) Stainless Steel, LATCH ANCHOR SCREWLOCKWASHER, (.250) Stainless Steel, LATCH ANCHOR SCREW
-
1023-13127 BEARING, NYLON - WATER OUTLET TUBEBEARING, NYLON - WATER OUTLET TUBE
-
1126-36556 SEAL, (.500 Inch Outside Diameter), RUBBER - WATER OUTLET TUBESEAL, (.500 Inch Outside Diameter), RUBBER - WATER OUTLET TUBE
-
1210-38111 SCREW, BOTTOM COWL (3/4")SCREW, BOTTOM COWL (3/4")
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, BOTTOM COWL SCREWLOCKWASHER, (.250) Stainless Steel, BOTTOM COWL SCREW
-
1427-89937 GASKET, POWERHEAD TO ADOPTOR PLATEGASKET, POWERHEAD TO ADOPTOR PLATE
-
1574354 RETAINER
ELECTRICRETAINER
ELECTRIC -
1610-48408 SCREW, (#10-16 x .500)
ELECTRICSCREW, (#10-16 x .500)
ELECTRIC -
1724-78810 SPRING, CALBE TO ARM LATCHSPRING, CALBE TO ARM LATCH
-
1878809 LATCH, ARM - BOTTOM COWLLATCH, ARM - BOTTOM COWL
-
1929-714221 BEARING, Needle, ARM LOCATINGBEARING, Needle, ARM LOCATING
-
2078808 LATCH, BODY - BOTTOM COWLLATCH, BODY - BOTTOM COWL
-
2110-32228 SCREW, (#10-32 x .625), LATCH TO BOTTOM COWLSCREW, (#10-32 x .625), LATCH TO BOTTOM COWL
-
2227-39050 GASKETGASKET
-
2387-69508A31 SWITCH ASSEMBLY, Stop
MANUALSWITCH ASSEMBLY, Stop
MANUAL -
2487-99525A1 COVER ASSEMBLY, STOP SWITCH
MANUALCOVER ASSEMBLY, STOP SWITCH
MANUAL -
2513-69845 LOCKWASHER, STOP SWITCH
MANUALLOCKWASHER, STOP SWITCH
MANUAL -
2611-69844 NUT, STOP SWITCH
MANUALNUT, STOP SWITCH
MANUAL -
2793730T HANDLE, SHIFT CONTROL
(MANUAL)HANDLE, SHIFT CONTROL
(MANUAL) -
2793730T HANDLE, SHIFT CONTROL
(ELECTRIC)HANDLE, SHIFT CONTROL
(ELECTRIC) -
2812-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT CONTROL SHAFTWASHER, (.281 x .500 x .060) Stainless Steel, SHIFT CONTROL SHAFT
-
2911-826709109 NUT, SHIFT HANDLE TO SHIFT CONTROL SHAFTNUT, SHIFT HANDLE TO SHIFT CONTROL SHAFT
-
3023-66375 BUSHING, NYLON - SHIFT CONTROL SHAFTBUSHING, NYLON - SHIFT CONTROL SHAFT
-
3174350 LEVER, SHIFT CONTROL (REMOTE)LEVER, SHIFT CONTROL (REMOTE)
-
3217-25905 PIN, SHIFT LEVER TO SHIFT CONTROL SHAFTPIN, SHIFT LEVER TO SHIFT CONTROL SHAFT
-
3366379 SHAFT, SHIFT CONTROLSHAFT, SHIFT CONTROL
-
3443-66377 SECTOR GEARSECTOR GEAR
-
3512-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT CONTROL SHAFTWASHER, (.281 x .500 x .060) Stainless Steel, SHIFT CONTROL SHAFT
-
3611-8267089 NUT, (.250-28), SECTOR GEAR TO SHIFT CONTROL SHAFTNUT, (.250-28), SECTOR GEAR TO SHIFT CONTROL SHAFT
-
3724-39627 SPRING, DETENT - SHIFT CONTROL LEVERSPRING, DETENT - SHIFT CONTROL LEVER
-
3839601 PLATE, DETENT SPRINGPLATE, DETENT SPRING
-
3910-25764 SCREW, (.190-32 x .50)SCREW, (.190-32 x .50)
-
4023-27132 BUSHING, NYLON - UPPER SHIFT SHAFTBUSHING, NYLON - UPPER SHIFT SHAFT
-
4143-86686A1 SECTOR GEAR, SHIFT SHAFTSECTOR GEAR, SHIFT SHAFT
-
4271660 SHIFT SHAFTSHIFT SHAFT
-
-27-89014A80 GASKET SETGASKET SET
