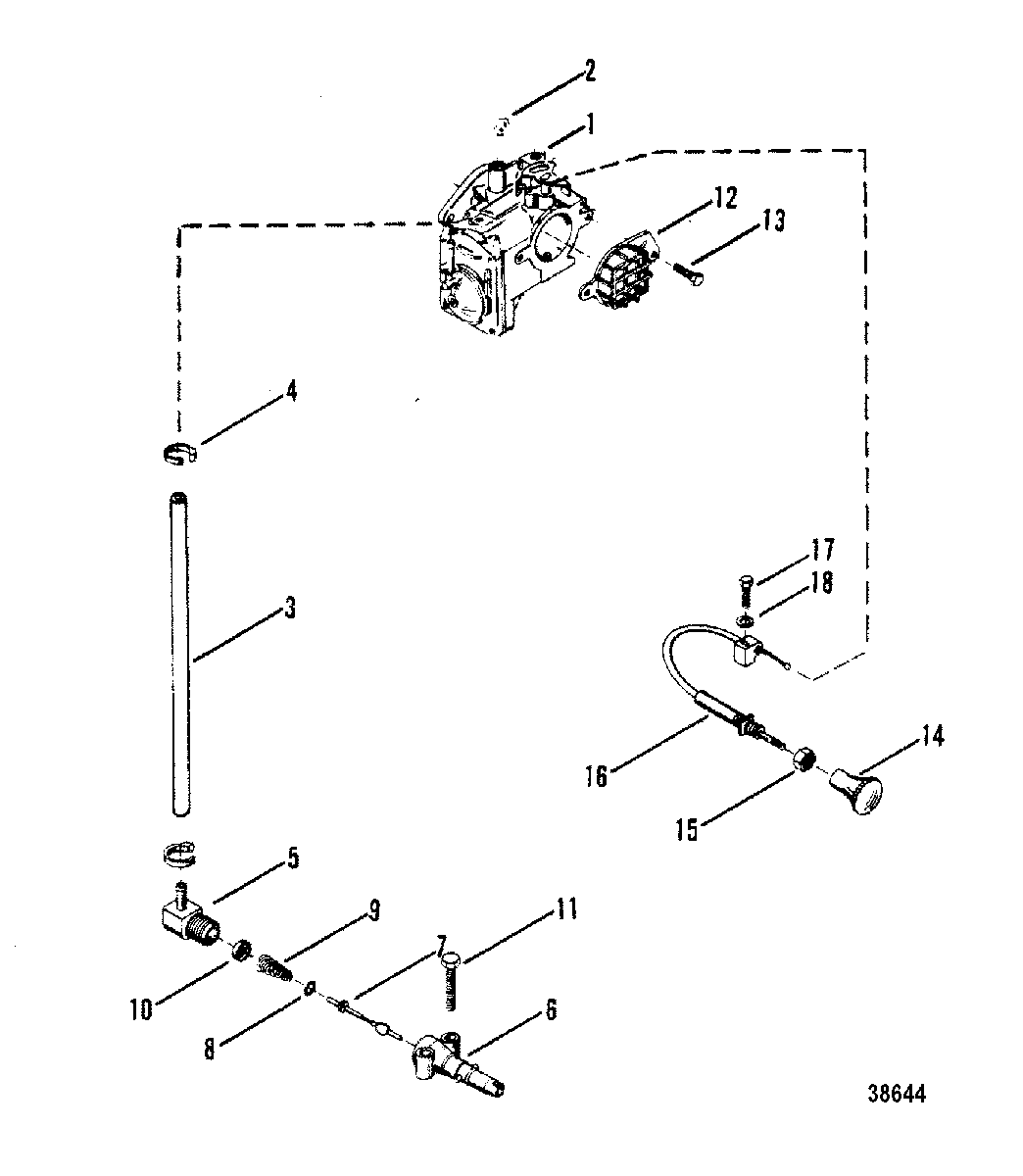

CARBURETOR AND CHOKE ASSEMBLY для Mercury - 7.5 9217756 & Up

  • №
    Артикул
    Название
  • 1
    1364-8783A14 CARBURETOR ASSEMBLY
    (TILLOTSON) MERC 7.5
    CARBURETOR ASSEMBLY
    (TILLOTSON) MERC 7.5
  • 1
    1364-8783A14 CARBURETOR ASSEMBLY
    (WALBRO) MERC 7.5
    CARBURETOR ASSEMBLY
    (WALBRO) MERC 7.5
  • 1
    1364-8782A13 CARBURETOR ASSEMBLY
    (TILLOTSON) MERC 9.8
    CARBURETOR ASSEMBLY
    (TILLOTSON) MERC 9.8
  • 1
    1364-8782A13 CARBURETOR ASSEMBLY
    (WALBRO) MERC 9.8
    CARBURETOR ASSEMBLY
    (WALBRO) MERC 9.8
  • 2
    11-24652 NUT, (.250-28), CARBURETOR ATTACHING
    NUT, (.250-28), CARBURETOR ATTACHING
  • 3
    32-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO CARBURETOR
    LINE, (57.00 Inches Bulk), ADAPTOR TO CARBURETOR
  • 4
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 5
    22-63981 FITTING, FUEL LINE TO ADAPTOR
    FITTING, FUEL LINE TO ADAPTOR
  • 6
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 7
    23069 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 8
    25-16524 O-RING, ADAPTOR STEM
    O-RING, ADAPTOR STEM
  • 9
    24-23067T SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 10
    30188 WASHER, ADAPTOR
    WASHER, ADAPTOR
  • 11
    10-37923 SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
    SCREW, (.250-28 x 1.250), ADAPTOR TO BOTTOM COWL
  • 12
    65552 SCREEN, CARBURETOR
    (Use where applicable)
    SCREEN, CARBURETOR
    (Use where applicable)
  • 13
    10-69022 SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR
    (Use where applicable)
    SCREW, (#10-32 x .500) Stainless Steel, SCREEN TO CARBURETOR
    (Use where applicable)
  • 14
    86381 KNOB, CHOKE
    KNOB, CHOKE
  • 15
    11-73710 NUT, CHOKE CABLE TO BOTTOM COWL
    NUT, CHOKE CABLE TO BOTTOM COWL
  • 16
    72465 CABLE, Choke
    CABLE, Choke
  • 17
    10-45862 SCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETOR
    SCREW, (#10-32 x .875), CHOKE CABLE TO CARBURETOR
  • 18
    12-34680 WASHER, CHOKE CABLE SCREW
    WASHER, CHOKE CABLE SCREW
  • -
    27-89014A80 GASKET SET
    GASKET SET
