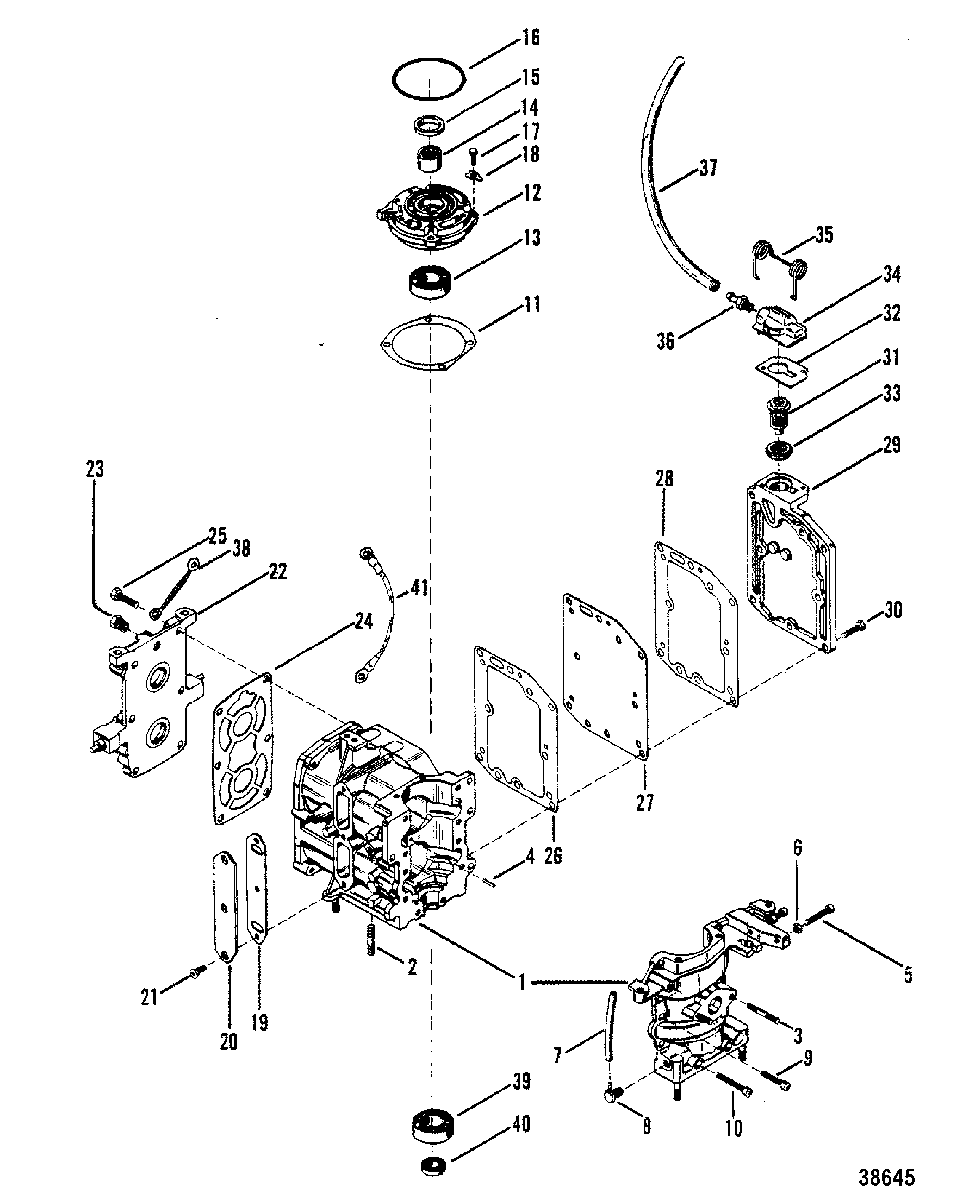

CYLINDER BLOCK AND CRANKCASE для Mercury - 7.5 9217756 & Up
-
№АртикулНазвание
-
1837-7693A2 CYLINDER BLOCK ASSEMBLY
(MERC 7.5)CYLINDER BLOCK ASSEMBLY
(MERC 7.5) -
1837-7694A2 CYLINDER BLOCK ASSEMLBY
(MERC 9.8)CYLINDER BLOCK ASSEMLBY
(MERC 9.8) -
216-728091 STUD, (.250-20/.250-28 x 1.620), BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSINGSTUD, (.250-20/.250-28 x 1.620), BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
-
310-657461 STUD, (.250-28 x 1.00), CARBURETOR MOUNTINGSTUD, (.250-28 x 1.00), CARBURETOR MOUNTING
-
417-8M0084726 PIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCKPIN, Dowel (.187 x .530), CRANKCASE TO CYLINDER BLOCK
-
510-69560 SCREW, ADJ - THROTTLE CONTROL (1-1/4")SCREW, ADJ - THROTTLE CONTROL (1-1/4")
-
611-68219 NUT, (#10-32) Stainless Steel, THROTTLE CONTROL ADJUSTING SCREWNUT, (#10-32) Stainless Steel, THROTTLE CONTROL ADJUSTING SCREW
-
732-892024122 TUBING, (20.00 Feet Bulk), BLEED DRAIN (4")TUBING, (20.00 Feet Bulk), BLEED DRAIN (4")
-
821-42863 CHECK VALVE, BLEED - CRANKCASE (BOTTOM)CHECK VALVE, BLEED - CRANKCASE (BOTTOM)
-
910-76621 SCREW, CRANKCASE TO CYLINDER BLOCKSCREW, CRANKCASE TO CYLINDER BLOCK
-
1010-73280 SCREW, CRANKCASE TO CYLINDER BLOCKSCREW, CRANKCASE TO CYLINDER BLOCK
-
1115-31412A1 SHIMSHIM
-
121164-6413A1 HOUSING ASSEMBLY, Bearing, UPPERHOUSING ASSEMBLY, Bearing, UPPER
-
1330-72961 BEARING, Ball, UPPER BEARING HOUSINGBEARING, Ball, UPPER BEARING HOUSING
-
1431-31410 BEARING, Roller, UPPER BEARING HOUSINGBEARING, Roller, UPPER BEARING HOUSING
-
1526-66301 SEAL, Oil, UPPER BEARING HOUSINGSEAL, Oil, UPPER BEARING HOUSING
-
1625-20863 O-RING, UPPER BEARING HOUSINGO-RING, UPPER BEARING HOUSING
-
1710-76611 SCREW, (.216-24 x .500), UPPER BEARING HOUSINGSCREW, (.216-24 x .500), UPPER BEARING HOUSING
-
1814-78102 TAB WASHERTAB WASHER
-
1927-780321 GASKET, INTAKE COVER
SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & BelowGASKET, INTAKE COVER
SN# USA-5524659/Aus-8063634/Bel-9246205/Can-7143037 & Below -
1927-43336 GASKET, INTAKE COVER
SN# USA-5524660/Aus-8063635/Bel-9246206/Can-7143038 & UpGASKET, INTAKE COVER
SN# USA-5524660/Aus-8063635/Bel-9246206/Can-7143038 & Up -
2078033 COVER, INTAKECOVER, INTAKE
-
2110-26537 SCREW, (#10-24 x .500), INTAKE COVER TO CYLINDER BLOCKSCREW, (#10-24 x .500), INTAKE COVER TO CYLINDER BLOCK
-
221019-7465A1 COVER ASSEMBLY, CYLINDER BLOCKCOVER ASSEMBLY, CYLINDER BLOCK
-
2322-328022 PLUG, Pipe (.125-27), CYLINDER COVER
(THERMOSTAT ENGINES)PLUG, Pipe (.125-27), CYLINDER COVER
(THERMOSTAT ENGINES) -
2322-996642 ELBOW, CYLINDER COVER
(NON-THERMOSTAT ENGINES)ELBOW, CYLINDER COVER
(NON-THERMOSTAT ENGINES) -
2427-41382 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2510-76630 SCREW, (.250-20 x 1.00)SCREW, (.250-20 x 1.00)
-
2627-41383 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2785935 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
2827-41383 GASKET, BAFFLE PLATE
(NON-THERMOSTAT ENGINES)GASKET, BAFFLE PLATE
(NON-THERMOSTAT ENGINES) -
2974919T COVER, EXHAUST MANIFOLD
(NON-THERMOSTAT ENGINES)COVER, EXHAUST MANIFOLD
(NON-THERMOSTAT ENGINES) -
2827-89014 GASKET, BAFFLE PLATE
(THERMOSTAT ENGINES)GASKET, BAFFLE PLATE
(THERMOSTAT ENGINES) -
2989013A1 COVER, EXHAUST MANIFOLD
(THERMOSTAT ENGINES)COVER, EXHAUST MANIFOLD
(THERMOSTAT ENGINES) -
3010-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
3175692 THERMOSTAT
(THERMOSTAT ENGINES)THERMOSTAT
(THERMOSTAT ENGINES) -
3227-88346 GASKET, THERMOSTAT COVER
(THERMOSTAT ENGINES)GASKET, THERMOSTAT COVER
(THERMOSTAT ENGINES) -
3327-62386001 GASKET, THERMOSTAT
(THERMOSTAT ENGINES)GASKET, THERMOSTAT
(THERMOSTAT ENGINES) -
3485920 COVER, THERMOSTAT
(THERMOSTAT ENGINES)COVER, THERMOSTAT
(THERMOSTAT ENGINES) -
3524-88464 SPRING, RETAINER - THERMOSTAT COVER
(THERMOSTAT ENGINES)SPRING, RETAINER - THERMOSTAT COVER
(THERMOSTAT ENGINES) -
3622-291112 CONNECTOR, THERMOSTAT COVER
(THERMOSTAT ENGINES)CONNECTOR, THERMOSTAT COVER
(THERMOSTAT ENGINES) -
3732-8M0108355 HOSE, TELL-TALEHOSE, TELL-TALE
-
3846933A1 GROUND WIREGROUND WIRE
-
3930-72961 BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
4026-66301 SEAL, Oil, CRANKCASE (LOWER)SEAL, Oil, CRANKCASE (LOWER)
-
4184-63415A6 WIRE ASSEMBLY, BLACK (ELECTRIC)WIRE ASSEMBLY, BLACK (ELECTRIC)
