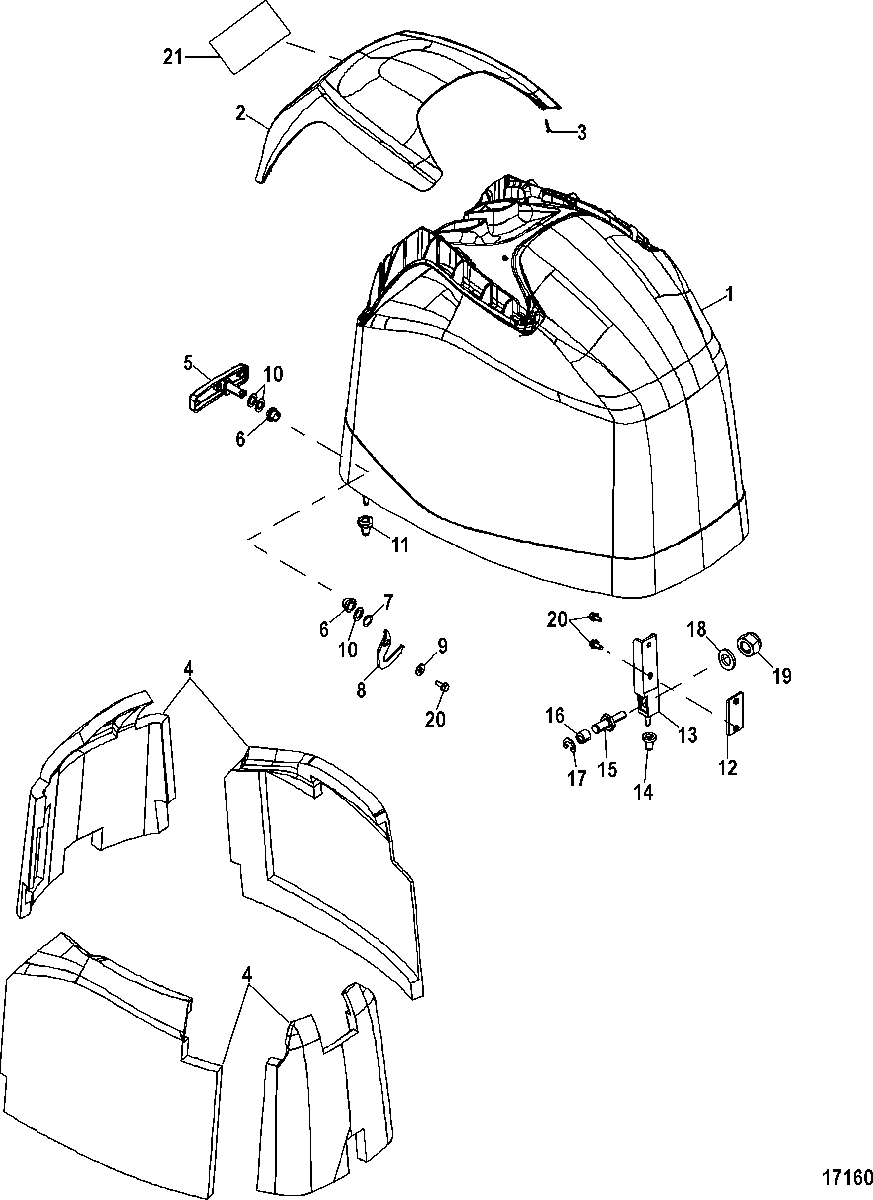

Top Cowl, 1B943219 and above для Mercury - 75 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
1100-8M0075361 TOP COWL ASSEMBLY, MarinerTOP COWL ASSEMBLY, Mariner
-
1100-8M0074089 TOP COWL ASSEMBLY, MercuryTOP COWL ASSEMBLY, Mercury
-
1100-8M0075360 TOP COWL ASSEMBLY, Mercury, Without decalsTOP COWL ASSEMBLY, Mercury, Without decals
-
1100-8M0075361 TOP COWL ASSEMBLY, Mariner, Without decalsTOP COWL ASSEMBLY, Mariner, Without decals
-
2897529T CAP, Air Dam - MercuryCAP, Air Dam - Mercury
-
2897529T01 CAP, Air Dam - MarinerCAP, Air Dam - Mariner
-
310-888950020 SCREW, (M4 x 20 mm)SCREW, (M4 x 20 mm)
-
48M0000346 SOUND BLANKET ASSEMBLYSOUND BLANKET ASSEMBLY
-
5831207A16 HANDLE KIT, Cowl Latch
PlasticHANDLE KIT, Cowl Latch
Plastic -
623-812707 BUSHINGBUSHING
-
713-12134 WASHER, WaveWASHER, Wave
-
88M0001081 CAMCAM
-
912-4002316 WASHERWASHER
-
1012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
11815477 BUMPER, LatchBUMPER, Latch
-
12897975 PLATE, BackingPLATE, Backing
-
138M0036792 BRACKET, FrontBRACKET, Front
-
14815477 BUMPER, LatchBUMPER, Latch
-
158155381 PIN, RollPIN, Roll
-
16815263 ROLLERROLLER
-
1753-8237951 RING, RetainingRING, Retaining
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2010-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
21NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
-37-8M0107468 DECAL SET, 80/100DECAL SET, 80/100
-
-37-8M0063366 DECAL, Horsepower (80)DECAL, Horsepower (80)
-
-37-8M0063368 DECAL, Horsepower (100)DECAL, Horsepower (100)
-
-37-8M0107468 DECAL SET, 75/90/115DECAL SET, 75/90/115
-
-37-8M0063365 DECAL, Horsepower (75)DECAL, Horsepower (75)
-
-37-8M0063367 DECAL, Horsepower (90)DECAL, Horsepower (90)
-
-37-8M0063369 DECAL, Horsepower (115)DECAL, Horsepower (115)
-
-37-898822001 DECAL, Wrap Mariner 75DECAL, Wrap Mariner 75
-
-37-898822002 DECAL, Wrap Mariner 80DECAL, Wrap Mariner 80
-
-37-898822003 DECAL, Wrap Mariner 90DECAL, Wrap Mariner 90
-
-37-898822004 DECAL, Wrap Mariner 100DECAL, Wrap Mariner 100
-
-37-898822005 DECAL, Wrap Mariner 115DECAL, Wrap Mariner 115
-
-37-8M0043706 DECAL, M Icon, 60mm-BlackDECAL, M Icon, 60mm-Black
