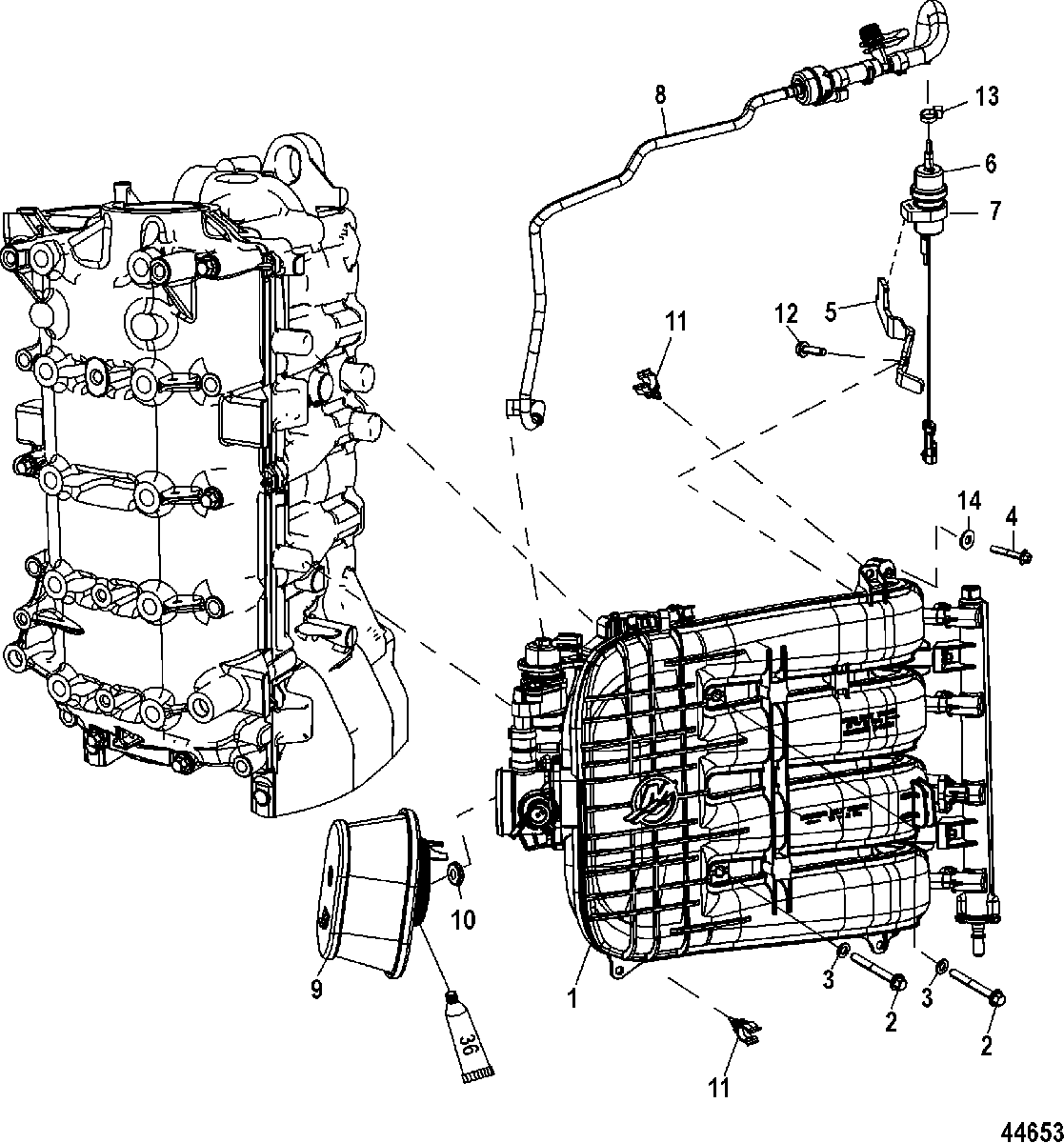

Integrated Air Fuel Module для Mercury - 75 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
1892952T06 IAFM ASSEMBLY
SN# 1B587015 & BelowIAFM ASSEMBLY
SN# 1B587015 & Below -
1892952T06 IAFM ASSEMBLY
SN# 1B587016 & UpIAFM ASSEMBLY
SN# 1B587016 & Up -
-8M6002790 MANIFOLD, IntakeMANIFOLD, Intake
-
210-88552550 SCREW, (M6 x 50 MM) Stainless SteelSCREW, (M6 x 50 MM) Stainless Steel
-
312-4002316 WASHERWASHER
-
410-8M0048051 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
5897646001 BRACKET, Vent CanisterBRACKET, Vent Canister
-
6884545A02 CANISTER ASSEMBLY, VentCANISTER ASSEMBLY, Vent
-
725-897434 GROMMETGROMMET
-
88M0126307 PURGE VENT ASSEMBLYPURGE VENT ASSEMBLY
-
935-8M0082911 FILTER, AirFILTER, Air
-
108M0032134 RESTRICTOR PLATE
75/80EU SN# 1B521878 & BelowRESTRICTOR PLATE
75/80EU SN# 1B521878 & Below -
108M0032134 RESTRICTOR PLATE
75/80EU SN# 1B521879 & UpRESTRICTOR PLATE
75/80EU SN# 1B521879 & Up -
1154-897559 CLIPCLIP
-
1210-897445501 SCREW, (M6 x 20 MM)SCREW, (M6 x 20 MM)
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1412-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
