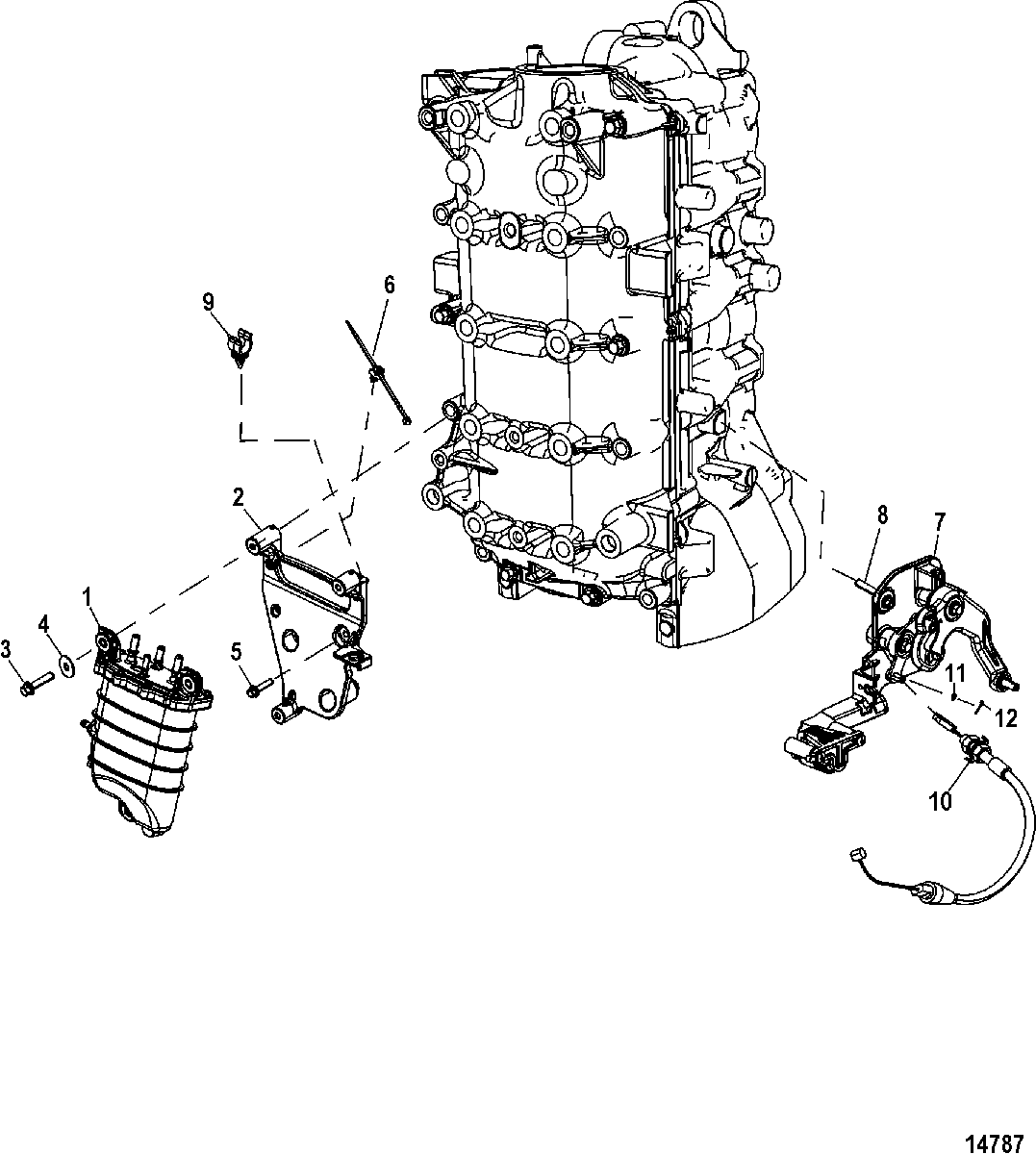

Fuel Supply Module Mounting для Mercury - 75 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
18M0130897 MODULE, Fuel Supply
See Fuel Supply Module Page For Service Parts BreakdownMODULE, Fuel Supply
See Fuel Supply Module Page For Service Parts Breakdown -
2897567T BRACKET, Fuel Supply ModuleBRACKET, Fuel Supply Module
-
310-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
412-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
510-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
654-899145 CLIP, Tie StrapCLIP, Tie Strap
-
7897763T03 BRACKET ASSEMBLY, Throttle
SN# 1B418905 & BelowBRACKET ASSEMBLY, Throttle
SN# 1B418905 & Below -
7897763T03 BRACKET ASSEMBLY, Throttle
SN# 0P472784 & BelowBRACKET ASSEMBLY, Throttle
SN# 0P472784 & Below -
7897763T03 BRACKET ASSEMBLY, Throttle
SN# 1B418906 & UpBRACKET ASSEMBLY, Throttle
SN# 1B418906 & Up -
7897763T03 BRACKET ASSEMBLY, Throttle
SN# 0P472785 & UpBRACKET ASSEMBLY, Throttle
SN# 0P472785 & Up -
810-88552620 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
954-897559 CLIPCLIP
-
108M0005986 CABLE ASSEMBLYCABLE ASSEMBLY
-
1112-35459 WASHERWASHER
-
1218-210711 COTTER PINCOTTER PIN
