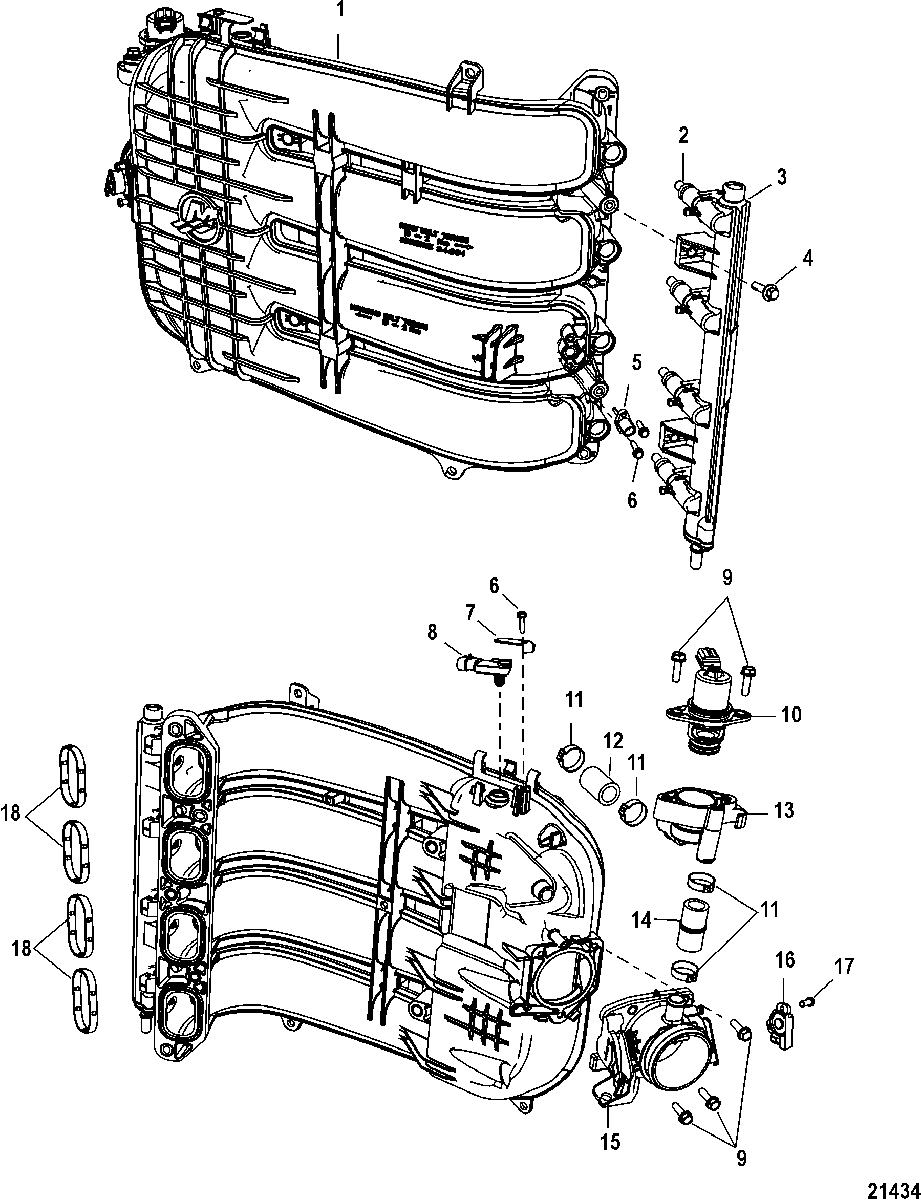

Intergrated Air Fuel Module Components для Mercury - 75 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • -
    892952T06 IAFM ASSEMBLY
    SN# 1B587015 & Below
    IAFM ASSEMBLY
    SN# 1B587015 & Below
  • -
    892952T06 IAFM ASSEMBLY
    SN# 1B587016 & Up
    IAFM ASSEMBLY
    SN# 1B587016 & Up
  • 1
    8M6002790 MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    8M0041571 INJECTOR, Fuel
    INJECTOR, Fuel
  • 3
    25-851889 O-RING
    O-RING
  • 4
    898103T97 FUEL RAIL ASSEMBLY
    FUEL RAIL ASSEMBLY
  • 5
    10-897445502 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 6
    891663001 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 7
    10-895054 SCREW, (M4 x 16 MM)
    SCREW, (M4 x 16 MM)
  • 8
    897445503 BRACKET, Retaining
    BRACKET, Retaining
  • 9
    854445 SENSOR, MAP
    SENSOR, MAP
  • 10
    10-897445501 SCREW, (M6 x 20 MM)
    SCREW, (M6 x 20 MM)
  • 11
    897526T IAC VALVE
    IAC VALVE
  • 12
    54-8M0005933 CLAMP KIT
    CLAMP KIT
  • 13
    32-8M0005528 HOSE, Idle Air Discharge
    HOSE, Idle Air Discharge
  • 14
    8M0005529 HOUSING, Manifold
    HOUSING, Manifold
  • 15
    32-8M0005527 HOSE, Idle Air Feed
    HOSE, Idle Air Feed
  • 16
    898103T98 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 17
    8M0125617 SENSOR, Position
    SENSOR, Position
  • 18
    10-8M0009542 SCREW KIT, (M5 x 17), Contains 2 Screws
    SCREW KIT, (M5 x 17), Contains 2 Screws
  • 19
    26-897445505 SEAL, Bulk Pack of 4 seals.
    SEAL, Bulk Pack of 4 seals.
