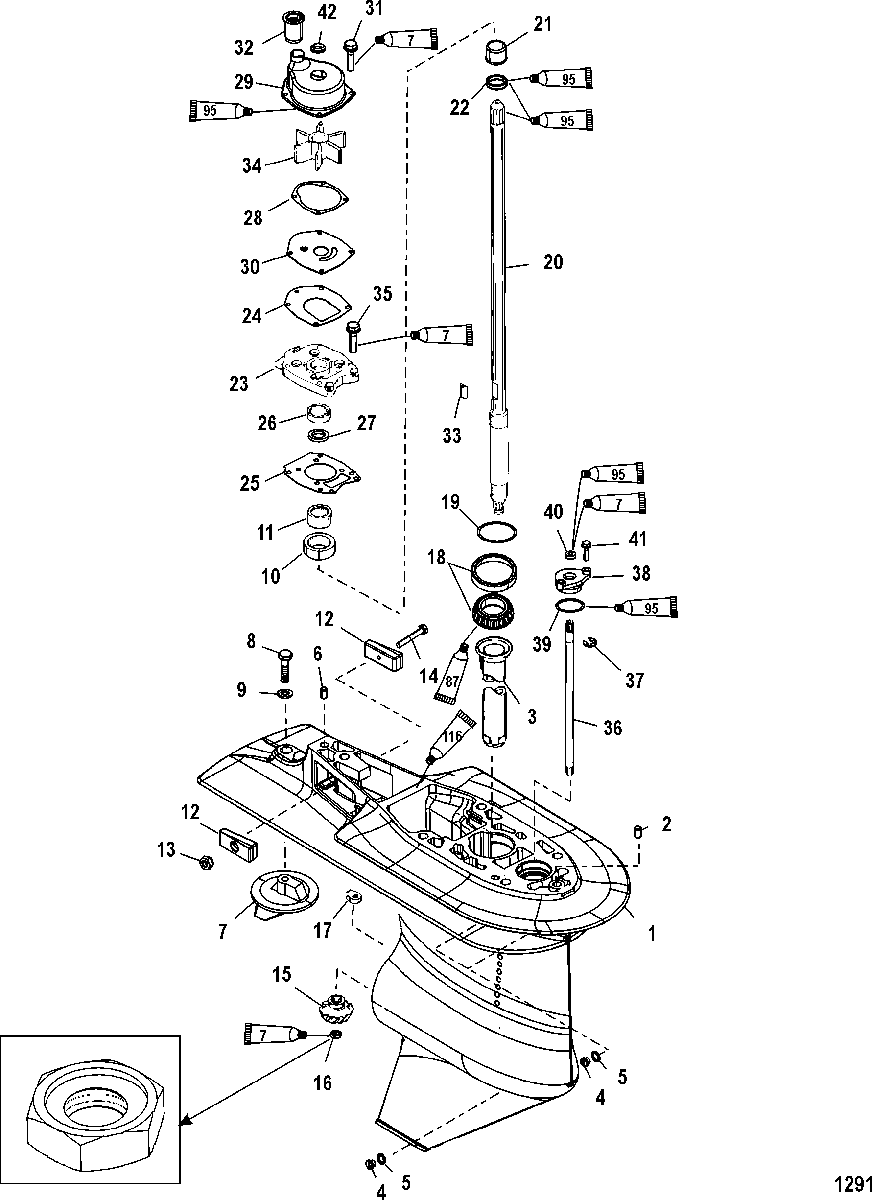

Gear Housing, Driveshaft - 2.07:1 Gear Ratio для Mercury - 75 DFI (3 CYL.)(1.5L) 1B417702 THRU 1B736885

  • №
    Артикул
    Название
  • -
    1667-9011J33 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    Long
    GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    Long
  • -
    1667-9011J35 GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    X-Long
    GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter)
    X-Long
  • 1
    1667-9011G59 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) , Front
    PIN, Dowel - With Hole (.375 x .625) , Front
  • 3
    43046 TUBE, Oiler
    TUBE, Oiler
  • 4
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 5
    26-830749 SEAL
    SEAL
  • 6
    17-43044 PIN, Dowel - Without Hole (.375 x .625), Rear
    PIN, Dowel - Without Hole (.375 x .625), Rear
  • 7
    31640T07 TRIM TAB
    TRIM TAB
  • 8
    10-825427 SCREW, (.437-14 x 1.250) Stainless Steel
    SCREW, (.437-14 x 1.250) Stainless Steel
  • 9
    12-451761 WASHER, (.453 x .812 x .105) Black Oxide
    WASHER, (.453 x .812 x .105) Black Oxide
  • 10
    43040T1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 11
    NSS NOT SOLD SEPARATE, Needle Bearing
    NOT SOLD SEPARATE, Needle Bearing
  • 12
    97-826134Q ANODE
    ANODE
  • 13
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 15
    43-881259T GEAR, Pinion - 14 Teeth
    Also Part of 43-881260A3
    GEAR, Pinion - 14 Teeth
    Also Part of 43-881260A3
  • 16
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 17
    850307 CAM, Shift Control
    CAM, Shift Control
  • 18
    31-883047A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 19
    15-8M0063265 SHIM SET
    SHIM SET
  • 20
    45-888933A1 DRIVESHAFT ASSEMBLY
    Long
    DRIVESHAFT ASSEMBLY
    Long
  • 20
    45-888934A1 DRIVESHAFT ASSEMBLY
    X-Long
    DRIVESHAFT ASSEMBLY
    X-Long
  • 21
    42461A1 SLEEVE/RING KIT
    SLEEVE/RING KIT
  • 22
    NSS NOT SOLD SEPARATE, Seal Ring
    NOT SOLD SEPARATE, Seal Ring
  • 23
    46-8M0113262 COVER ASSEMBLY, Water Pump
    COVER ASSEMBLY, Water Pump
  • 24
    27-430331 GASKET
    GASKET
  • 25
    27-430472 GASKET
    GASKET
  • 26
    26-43036 SEAL, Oil, Lower
    SEAL, Oil, Lower
  • 27
    26-43035 SEAL, Oil, Upper
    SEAL, Oil, Upper
  • 28
    27-8172771 GASKET
    GASKET
  • 29
    817275A2 HOUSING KIT, Upper Water Pump
    HOUSING KIT, Upper Water Pump
  • 30
    8172761 FACEPLATE
    FACEPLATE
  • 31
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 32
    430232 SEAL
    SEAL
  • 33
    28-8M0032833 KEY
    KEY
  • 34
    47-43026T2 IMPELLER
    IMPELLER
  • 35
    10-82684425 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 36
    853906A1 SHIFT SHAFT ASSEMBLY
    Long -12 Inches
    SHIFT SHAFT ASSEMBLY
    Long -12 Inches
  • 36
    853908A1 SHIFT SHAFT ASSEMBLY
    X-Long - 17 Inches
    SHIFT SHAFT ASSEMBLY
    X-Long - 17 Inches
  • 37
    53-29641 E RING
    E RING
  • 38
    23-43052A4 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 39
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 40
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 41
    10-82684425 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 42
    26-816575A2 SEAL, Face
    SEAL, Face
  • -
    26-43035A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    46-8M0113799 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    47-8M0100526 REPAIR KIT, Water Pump Impeller
    REPAIR KIT, Water Pump Impeller
  • -
    52-803489T1 REPAIR KIT, Clutch/Cam
    REPAIR KIT, Clutch/Cam
  • -
    31-803496T2 BEARING/SEAL KIT, Without Forward Bearing
    BEARING/SEAL KIT, Without Forward Bearing
