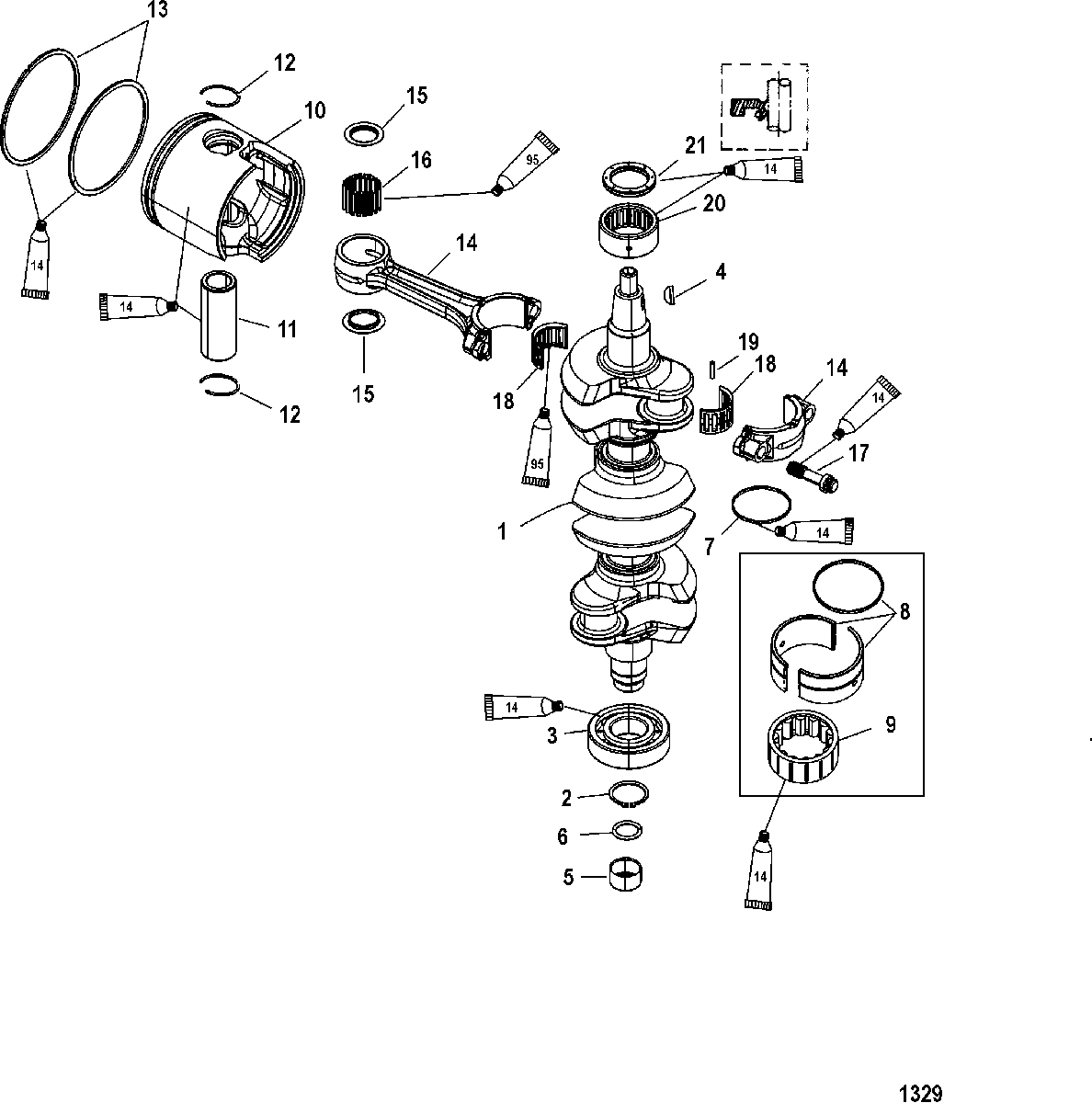

Crankshaft, Pistons and Connecting Rods для Mercury - 75 DFI (3 CYL.)(1.5L) 1B417702 THRU 1B736885

  • №
    Артикул
    Название
  • 1
    400-879633T01 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    53-880119 RING, Retaining
    RING, Retaining
  • 3
    30-43011T BEARING, Ball, Lower
    BEARING, Ball, Lower
  • 4
    28-91800 KEY, Woodruff
    KEY, Woodruff
  • 5
    786611 WEAR SLEEVE
    WEAR SLEEVE
  • 6
    25-35126 O-RING, (.859 x .139)
    O-RING, (.859 x .139)
  • 7
    39-8M0071643 RING, Seal
    RING, Seal
  • 8
    31-879848A02 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 9
    NSS NOT SOLD SEPARATE, Needle Bearing
    NOT SOLD SEPARATE, Needle Bearing
  • 10
    700-879858T08 PISTON ASSEMBLY
    Standard
    PISTON ASSEMBLY
    Standard
  • 10
    700-896961A02 PISTON ASSEMBLY
    .015 Oversize
    PISTON ASSEMBLY
    .015 Oversize
  • 10
    700-896962A02 PISTON ASSEMBLY
    .030 Oversize
    PISTON ASSEMBLY
    .030 Oversize
  • 11
    NSS NOT SOLD SEPARATE, Piston Pin
    NOT SOLD SEPARATE, Piston Pin
  • 12
    40-841202 RING
    RING
  • 13
    39-827179A12 RING SET, Piston
    Standard
    RING SET, Piston
    Standard
  • 13
    39-875252A12 RING SET, Piston
    .015 Oversize
    RING SET, Piston
    .015 Oversize
  • 13
    39-875257A12 RING SET, Piston
    .030 Oversize
    RING SET, Piston
    .030 Oversize
  • 14
    600-888470T08 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 15
    12-88263 THRUST WASHER
    THRUST WASHER
  • 16
    29-88258001 BEARING, Needle
    BEARING, Needle
  • 17
    10-94320 SCREW, (.375-24 x 1.250)
    SCREW, (.375-24 x 1.250)
  • 18
    31-844338A01 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 19
    NSS NOT SOLD SEPARATE, Roller Bearing
    NOT SOLD SEPARATE, Roller Bearing
  • 20
    31-879853A01 BEARING ASSEMBLY, Roller, Upper
    BEARING ASSEMBLY, Roller, Upper
  • 21
    26-879635 SEAL, Oil
    SEAL, Oil
  • -
    27-879855A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • 895233A07 POWERHEAD ASSEMBLY, 75 DFI
    POWERHEAD ASSEMBLY, 75 DFI
  • 891767A07 POWERHEAD ASSEMBLY, 90/115 DFI
    POWERHEAD ASSEMBLY, 90/115 DFI
