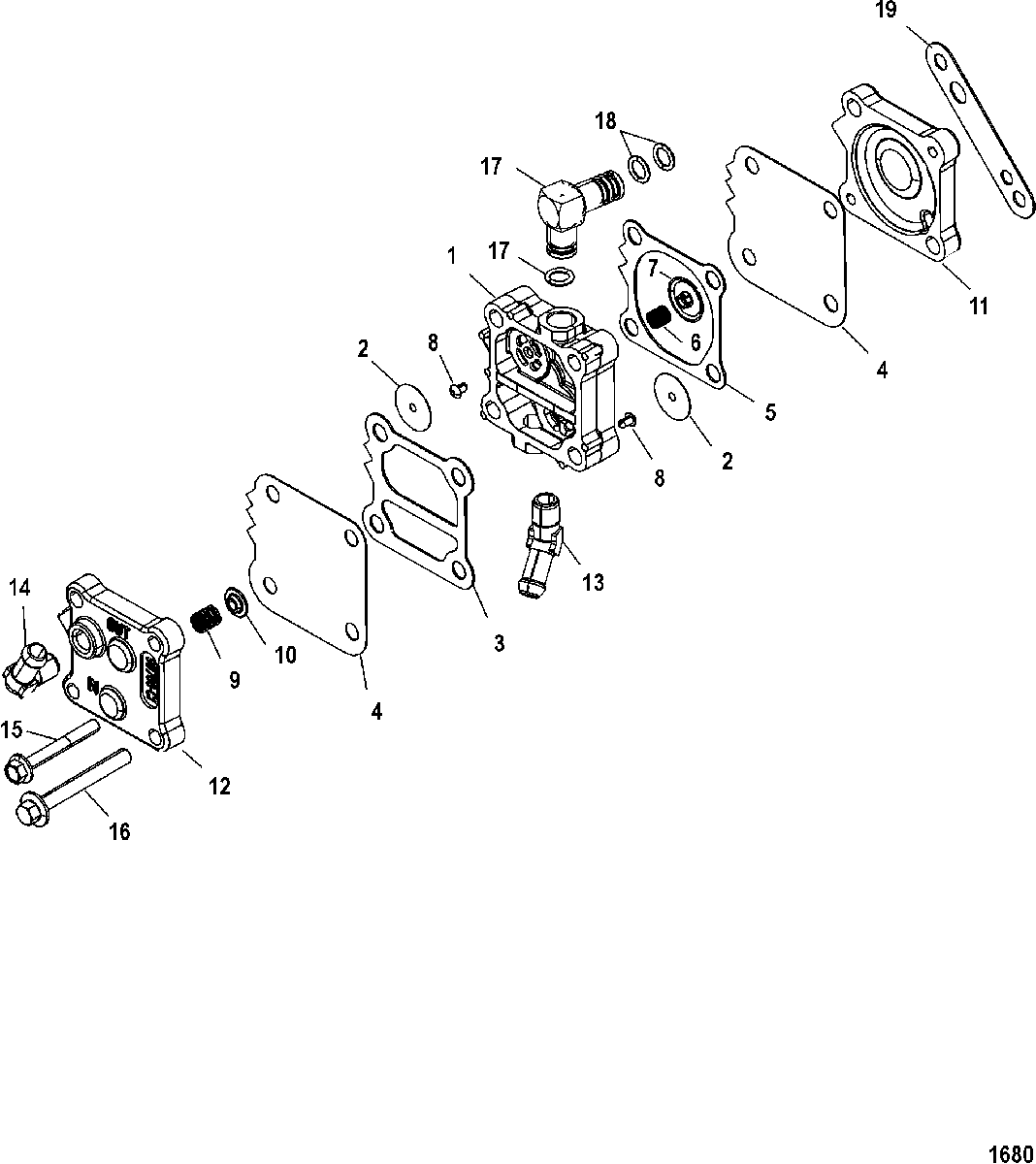

Fuel Pump для Mercury - 75 DFI (3 CYL.)(1.5L) 1B417702 THRU 1B736885

  • №
    Артикул
    Название
  • 1
    14360T74 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 4
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 5
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 9
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 10
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 11
    144303 BASE
    BASE
  • 12
    987752 PLATE
    PLATE
  • 13
    22-782792 FITTING, Elbow 45 Degree (1.25)
    FITTING, Elbow 45 Degree (1.25)
  • 14
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 15
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 16
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 17
    22-888493 ELBOW
    ELBOW
  • 18
    25-805063 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 19
    27-987691 GASKET
    GASKET
  • -
    27-879855A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
