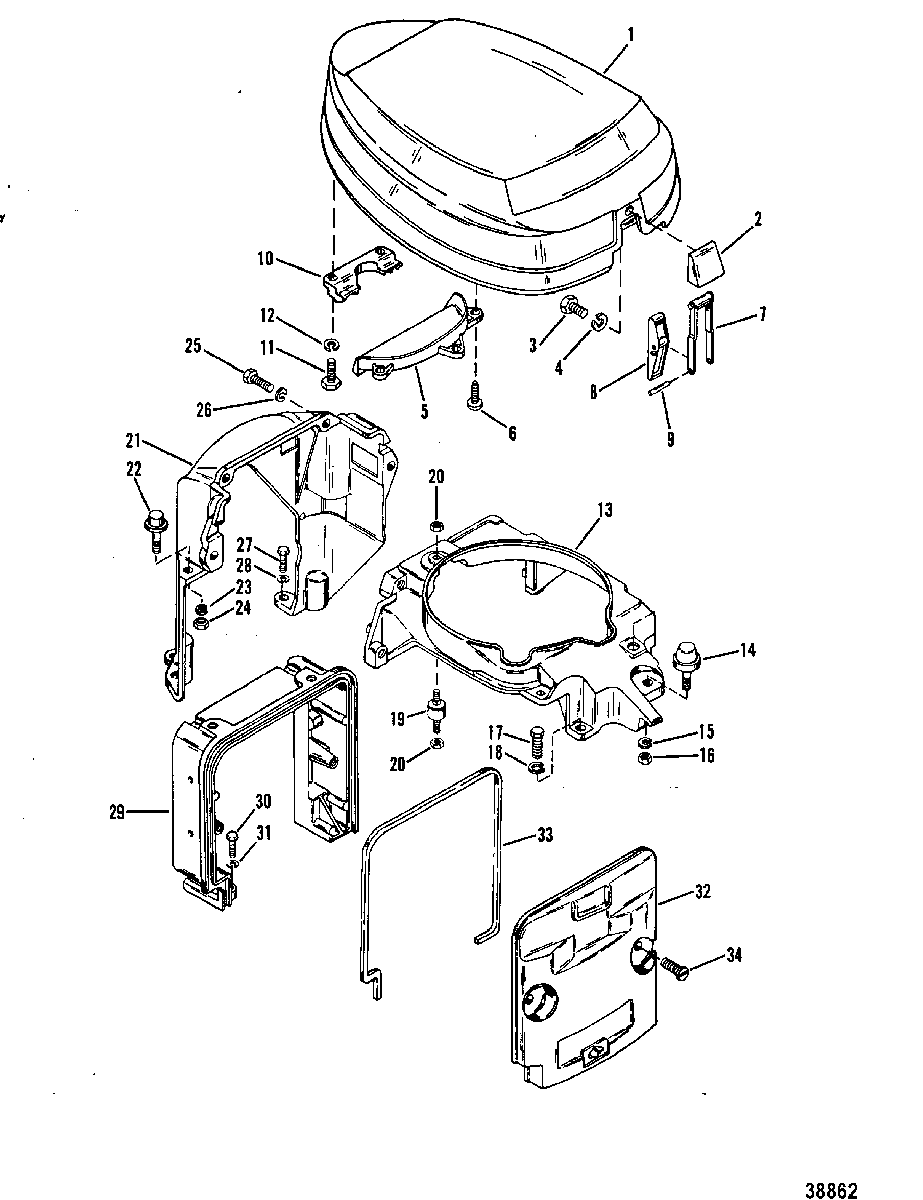

TOP COWL AND SUPPORT BRACKETS для Mercury - 75 (4 CYL.) 7208573 & Up

  • №
    Артикул
    Название
  • 1
    2114-7934T TOP COWL ASSEMBLY
    MERCURY
    TOP COWL ASSEMBLY
    MERCURY
  • 1
    2162-6392T6 TOP COWL ASSEMBLY, Mariner
    TOP COWL ASSEMBLY, Mariner
  • 2
    93122A1 RETAINER ASSEMBLY
    MERCURY
    RETAINER ASSEMBLY
    MERCURY
  • 2
    76440 RETAINER ASSEMBLY
    MARINER
    RETAINER ASSEMBLY
    MARINER
  • 3
    10-53167T SCREW, (.312-18 x .880)
    MERCURY
    SCREW, (.312-18 x .880)
    MERCURY
  • 3
    10-25299 SCREW, (.312-18 x .75)
    MARINER
    SCREW, (.312-18 x .75)
    MARINER
  • 4
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 5
    76370 SHIELD
    MERCURY
    SHIELD
    MERCURY
  • 5
    76433 SHIELD
    MARINER
    SHIELD
    MARINER
  • 6
    10-48409 SCREW, (#10-16 x .625) Stainless Steel
    SCREW, (#10-16 x .625) Stainless Steel
  • 7
    52739 HINGE, COWL LATCH-TOP COWL
    HINGE, COWL LATCH-TOP COWL
  • 8
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 9
    17-58998 PIN, COWL LATCH LEVER TO HINGE
    PIN, COWL LATCH LEVER TO HINGE
  • 10
    55455 HOOK, TOP COWL LTECH-REAR
    HOOK, TOP COWL LTECH-REAR
  • 11
    10-22956 SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
    SCREW, (.250-28 x .880), REAR HOOK TO TOP COWL
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW
    LOCKWASHER, (.250) Stainless Steel, REAR HOOK SCREW
  • 13
    73401T FRAME, SUPPORT-TOP COWL
    FRAME, SUPPORT-TOP COWL
  • 14
    37640 MOUNT, RUBBER-SUPPORT FRAME
    MOUNT, RUBBER-SUPPORT FRAME
  • 15
    13-26993 LOCKWASHER, (.312), RUBBER MOUNT
    LOCKWASHER, (.312), RUBBER MOUNT
  • 16
    11-28770 NUT, (.312-24) Stainless Steel, RUBBER MOUNT
    NUT, (.312-24) Stainless Steel, RUBBER MOUNT
  • 17
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel
    SCREW, (.312-18 x 1.00) Stainless Steel
  • 18
    13-26993 LOCKWASHER, (.312), SUPPORT FRAME SCREW
    LOCKWASHER, (.312), SUPPORT FRAME SCREW
  • 19
    90435 MOUNT, RUBBER-TOP COWL FRAME
    MOUNT, RUBBER-TOP COWL FRAME
  • 20
    11-20184 NUT, (1/4-28X7/32), RUBBR MOUNT (UPPER)
    NUT, (1/4-28X7/32), RUBBR MOUNT (UPPER)
  • 21
    52468 BRACKET, TOP COWL SUPPORT-REAR
    BRACKET, TOP COWL SUPPORT-REAR
  • 22
    31014 MOUNT, RUBBER-REAR SUPPORT BRACKET
    MOUNT, RUBBER-REAR SUPPORT BRACKET
  • 23
    13-26992 LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
    LOCKWASHER, (.250) Stainless Steel, RUBBER MOUNT
  • 24
    11-29598 NUT, (.250-28) Stainless Steel, RUBBER MOUNT
    NUT, (.250-28) Stainless Steel, RUBBER MOUNT
  • 25
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
    SCREW, (.312-18 x 1.00) Stainless Steel, REAR BRACKET TO FRAME
  • 26
    13-26993 LOCKWASHER, (.312), REAR BRACKET SCREW
    LOCKWASHER, (.312), REAR BRACKET SCREW
  • 27
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel
    SCREW, (.312-18 x 1.00) Stainless Steel
  • 28
    13-26993 LOCKWASHER, (.312), REAR BRACKET SCREW
    LOCKWASHER, (.312), REAR BRACKET SCREW
  • 29
    99649T FRAME, FRONT SUPPORT
    FRAME, FRONT SUPPORT
  • 30
    10-37562 SCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVER
    SCREW, (.312-18 x 1.00) Stainless Steel, SILENCER COVER
  • 31
    13-26993 LOCKWASHER, (.312), FRAME SCREW
    LOCKWASHER, (.312), FRAME SCREW
  • 32
    89590 COVER, SILENCER
    COVER, SILENCER
  • 33
    27-76168A2 GASKET, SILENCER COVER
    GASKET, SILENCER COVER
  • 34
    10-28638 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
