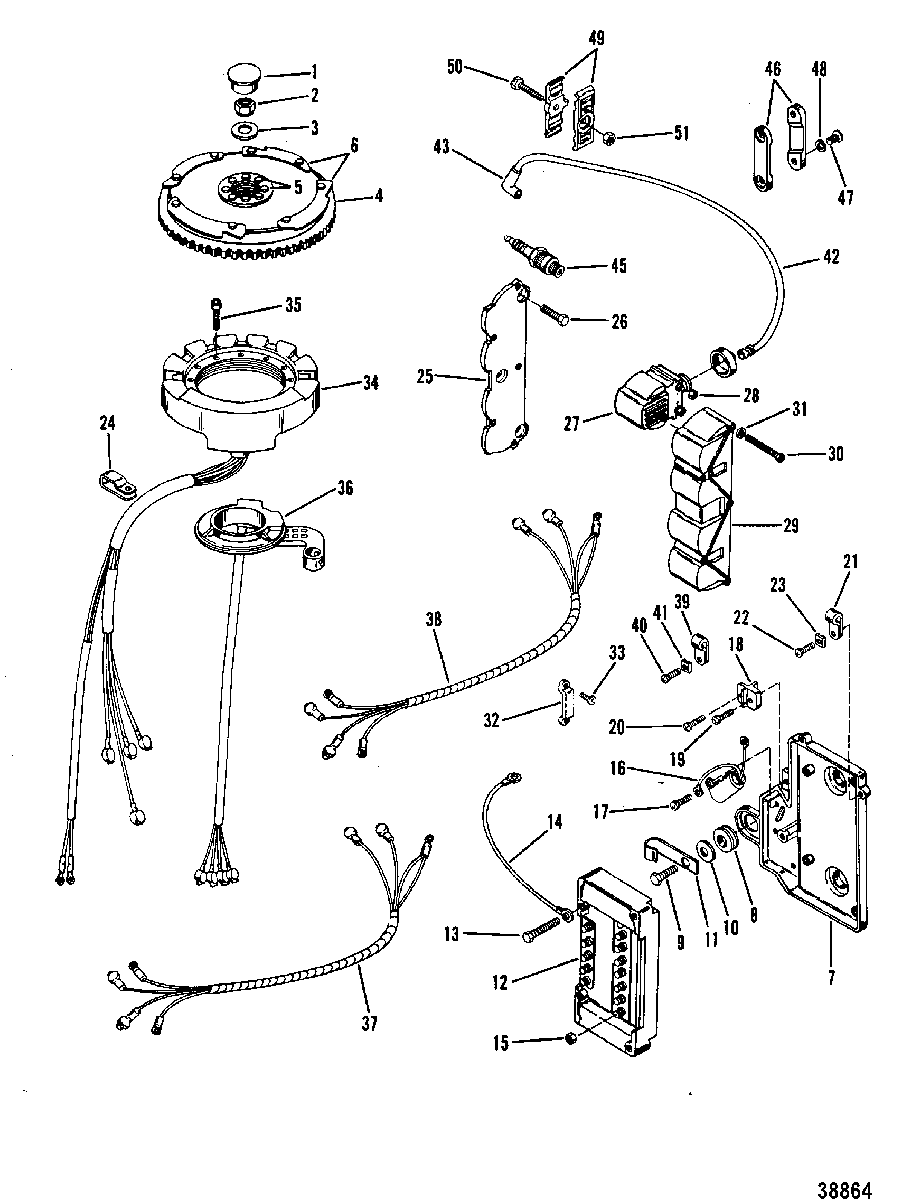

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 75 (4 CYL.) 7208573 & Up
-
№АртикулНазвание
-
119-45907 PLUG, Yellow, FLYWHEEL PULLER THREADSPLUG, Yellow, FLYWHEEL PULLER THREADS
-
211-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
312-33001 WASHER, (.641 x 1.250 x .190), FLYWHEEL NUTWASHER, (.641 x 1.250 x .190), FLYWHEEL NUT
-
4248-8722A6 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
510-68997 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
610-32417 SCREW, (.250-28 x .625)SCREW, (.250-28 x .625)
-
790332 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
825-57009001 GROMMET, SWITCH BOXGROMMET, SWITCH BOX
-
910-824941 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
1012-56720 WASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREWWASHER, (.330 x .750 x .060) Stainless Steel, SWITCH BOX PLATE SCREW
-
1154-47483 J CLIP, SWITCH BOX WIRES AND FUEL LINEJ CLIP, SWITCH BOX WIRES AND FUEL LINE
-
12332-5772A7 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1310-20619 SCREW, (#12-24 x 1.25)SCREW, (#12-24 x 1.25)
-
1484-65999A5 WIRE ASSEMBLYWIRE ASSEMBLY
-
1511-45076 NUT, (#10-32) Brass, SWITCH BOX TERMINALNUT, (#10-32) Brass, SWITCH BOX TERMINAL
-
1658124A19 MERCURY SWITCH ASSEMBLYMERCURY SWITCH ASSEMBLY
-
1710-37571 SCREW, (.190-32 x .500)SCREW, (.190-32 x .500)
-
1886-66986 TERMINAL BLOCKTERMINAL BLOCK
-
1910-38055 SCREW, (.190-32 x .62)SCREW, (.190-32 x .62)
-
2010-42813 SCREW, (#10-32 X .380)SCREW, (#10-32 X .380)
-
2154-22875 CLIP, WIRES AND HARNESSCLIP, WIRES AND HARNESS
-
2210-35519 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
238M0084613 C WASHER, CLIP SCREWC WASHER, CLIP SCREW
-
2454-47483 J CLIP, TRIGGER PLATE HARNESSJ CLIP, TRIGGER PLATE HARNESS
-
2573395 PLATE, MOUNTING-IGNITION COILPLATE, MOUNTING-IGNITION COIL
-
2610-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
27339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
2811-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
2987554 COVER, IGNITION COILCOVER, IGNITION COIL
-
3010-88856 SCREW, (.190-32 x 2.00)SCREW, (.190-32 x 2.00)
-
3112-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, COVER SCREW
-
3277672 STRAP, PRIMARY HARNESSSTRAP, PRIMARY HARNESS
-
3310-48408 SCREW, (#10-16 x .500), STRAP ATTACHINGSCREW, (#10-16 x .500), STRAP ATTACHING
-
34398-5454A26 STATOR ASSEMBLYSTATOR ASSEMBLY
-
3510-75840 SCREW, (#10-24 x .880)SCREW, (#10-24 x .880)
-
3696453A2 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
3784-77617 HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)HARNESS ASSEMBLY, PRIMARY (CYLINDERS 1 AND 2)
-
3884-77618 HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)HARNESS ASSEMBLY, PRIMARY (CYLINDERS 3 AND 4)
-
3954-45806 CLAMP, HARNESS ATTACHINGCLAMP, HARNESS ATTACHING
-
4010-35519 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
418M0084613 C WASHER, HARNESS CLAMP SCREWC WASHER, HARNESS CLAMP SCREW
-
4284-813715A1 LEAD ASSEMBLY, SPARK PLUGLEAD ASSEMBLY, SPARK PLUG
-
4385-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
4533-97182Q SPARK PLUG (NGK-BUHW-2)SPARK PLUG (NGK-BUHW-2)
-
4533-14103Q SPARK PLUG
CANADA AND BELGIUMSPARK PLUG
CANADA AND BELGIUM -
4678278 RETAINER, WIRERETAINER, WIRE
-
4710-35519 SCREW, (#10-16 x .500), WIRE RETAINERSCREW, (#10-16 x .500), WIRE RETAINER
-
4812-21273 WASHER, WIRE RETAINER SCREWWASHER, WIRE RETAINER SCREW
-
4963319 RETAINER, SPARK PLUG WIRERETAINER, SPARK PLUG WIRE
-
5010-46378 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
5111-20013 NUT, (.250-28), RETAINER SCREWNUT, (.250-28), RETAINER SCREW
