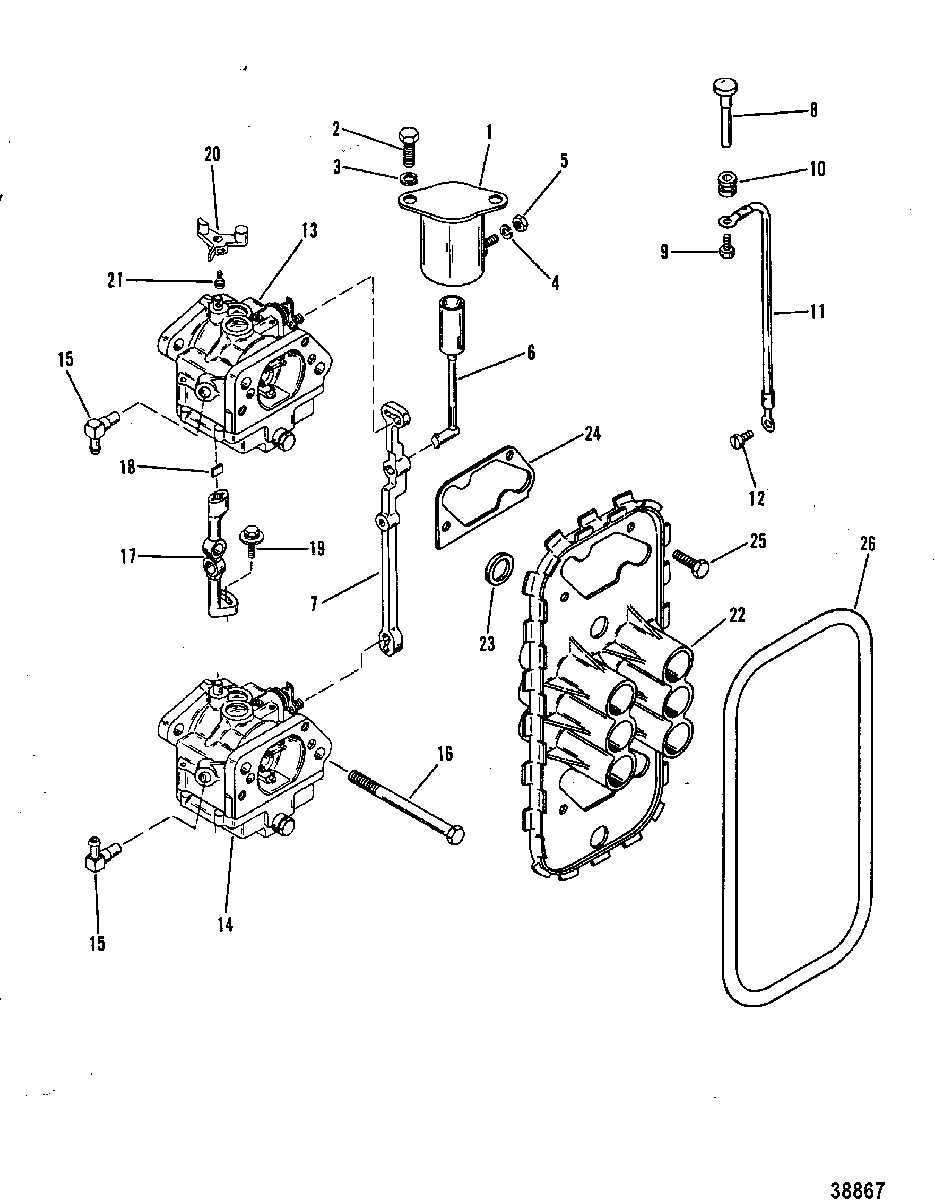

CARBURETOR LINKAGE для Mercury - 75 (4 CYL.) 7208573 & Up

  • №
    Артикул
    Название
  • 1
    54293A10 SOLENOID ASSEMBLY, Choke
    SOLENOID ASSEMBLY, Choke
  • 2
    10-824941 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 3
    13-26993 LOCKWASHER, (.312), CHOKE SOLENOID SCREW
    LOCKWASHER, (.312), CHOKE SOLENOID SCREW
  • 4
    13-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
  • 5
    11-68219 NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
    NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
  • 6
    89008A2 PLUNGER ASSEMBLY
    PLUNGER ASSEMBLY
  • 7
    73400 ROD, Choke
    ROD, Choke
  • 8
    90242A1 KNOB ASSEMBLY
    KNOB ASSEMBLY
  • 9
    10-77137 SCREW, (.190-16 x .620), WIRE TO CHOKE KNOB
    SCREW, (.190-16 x .620), WIRE TO CHOKE KNOB
  • 10
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 11
    84-74263 WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)
    WIRE, CHOKE KNOB TO CHOKE ROD (BLACK)
  • 12
    10-62568 SCREW, (#10-16 x .375), WIRE TO CHOKE ROD
    SCREW, (#10-16 x .375), WIRE TO CHOKE ROD
  • 13
    1379-6071A57 CARBURETOR ASSEMBLY (TOP)
    CARBURETOR ASSEMBLY (TOP)
  • 14
    1379-6071A58 CARBURETOR ASSEMBLY (BOTTOM)
    CARBURETOR ASSEMBLY (BOTTOM)
  • 15
    22-19688 FITTING, CARBURETOR
    FITTING, CARBURETOR
  • 16
    10-52743 SCREW, (.312-18 x 3.750)
    SCREW, (.312-18 x 3.750)
  • 17
    53720A2 COUPLING ASSEMBLY, LOWER CARBURETOR
    COUPLING ASSEMBLY, LOWER CARBURETOR
  • 18
    28-89694 KEY, COUPLING
    KEY, COUPLING
  • 19
    10-66104 SCREW, (#8-32 x .790)
    SCREW, (#8-32 x .790)
  • 20
    73847 ACTUATOR, THROTTLE (UPPER CARBURETOR)
    ACTUATOR, THROTTLE (UPPER CARBURETOR)
  • 21
    10-60293 SCREW, (#5-40 x .500)
    SCREW, (#5-40 x .500)
  • 22
    73408 PLATE, CARBURETOR
    PLATE, CARBURETOR
  • 23
    27-73398 GASKET, CARBURETOR PLATE
    GASKET, CARBURETOR PLATE
  • 24
    27-76952 GASKET, CARBURETOR PLATE TO CARBURETOR
    GASKET, CARBURETOR PLATE TO CARBURETOR
  • 25
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETOR
    SCREW, (.250-20 x .620) Stainless Steel, PLATE TO CARBURETOR
  • 26
    73647 SEAL, CARBURETOR PLATE
    SEAL, CARBURETOR PLATE
