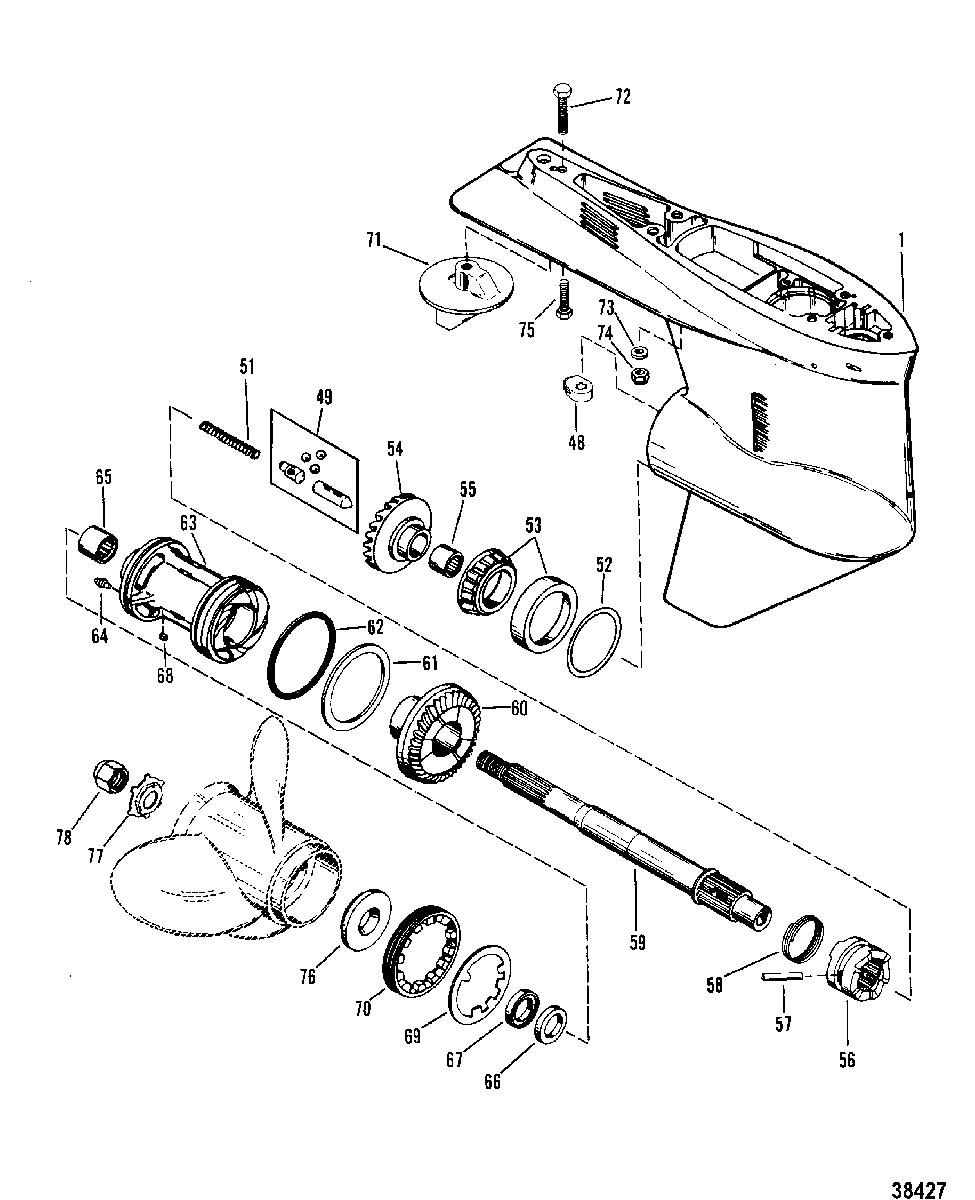

GEAR HOUSING(PROPELLER SHAFT) для Mercury - 75 (4 CYL.) 7208573 & Up

  • №
    Артикул
    Название
  • -
    1655-7333A25 GEAR HOUSING ASSEMBLY
    (MERCURY)
    GEAR HOUSING ASSEMBLY
    (MERCURY)
  • -
    1655-7333A41 GEAR HOUSING ASSEMBLY
    (MARINER)
    GEAR HOUSING ASSEMBLY
    (MARINER)
  • 1
    1655-7333T23 GEAR HOUSING ASSEMBLY (BASIC)
    (MERCURY)
    GEAR HOUSING ASSEMBLY (BASIC)
    (MERCURY)
  • 1
    1655-7333A43 GEAR HOUSING ASSEMBLY (BASIC)
    (MARINER)
    GEAR HOUSING ASSEMBLY (BASIC)
    (MARINER)
  • 48
    760394 CAM, Shift Control
    CAM, Shift Control
  • 49
    44532A1 FOLLOWER ASSEMBLY, Cam
    FOLLOWER ASSEMBLY, Cam
  • 51
    24-30622 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 52
    15-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING
    (.002-3-5-10)
    SHIM, BEARING OUTER RACE TO GEAR HOUSING
    (.002-3-5-10)
  • 53
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 54
    43-75314T2 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 55
    31-30895T BEARING, Needle, FORWARD GEAR
    BEARING, Needle, FORWARD GEAR
  • 56
    52-822539T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 57
    17-8M0100263 PIN, Cross, RATCHET TO PROPELLER SHAFT
    PIN, Cross, RATCHET TO PROPELLER SHAFT
  • 58
    24-30893 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 59
    44-93003 PROPELLER SHAFT
    PROPELLER SHAFT
  • 60
    43-77562T GEAR, Reverse
    GEAR, Reverse
  • 61
    12-76358 THRUST WASHER
    THRUST WASHER
  • 62
    25-29976 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 63
    41529T2 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 64
    22-98727 FITTING, Grease
    FITTING, Grease
  • 65
    31-30956T BEARING, Needle, BEARING CARRIER
    BEARING, Needle, BEARING CARRIER
  • 66
    26-76868 SEAL, BEARING CARRIER - INNER
    SEAL, BEARING CARRIER - INNER
  • 67
    26-70081 SEAL, Oil, BEARING CARRIER - OUTER
    SEAL, Oil, BEARING CARRIER - OUTER
  • 68
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 69
    14-52700 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 70
    52699 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 71
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 72
    10-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
    SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
  • 73
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
    WASHER, (.453 x .812 x .105) Stainless Steel, DRIVESHAFT HOUSING STUDS
  • 74
    11-34933 NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
    NUT, (.437-20) Stainless Steel, DRIVESHAFT HOUSING STUDS
  • 75
    10-65210 SCREW, (.375-16 x 1.00), GEAR HOUSING
    SCREW, (.375-16 x 1.00), GEAR HOUSING
  • 76
    13191Q01 THRUST HUB
    THRUST HUB
  • 77
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 78
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • -
    27-73645A87 GASKET SET
    GASKET SET
  • -
    26-55682A1 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
