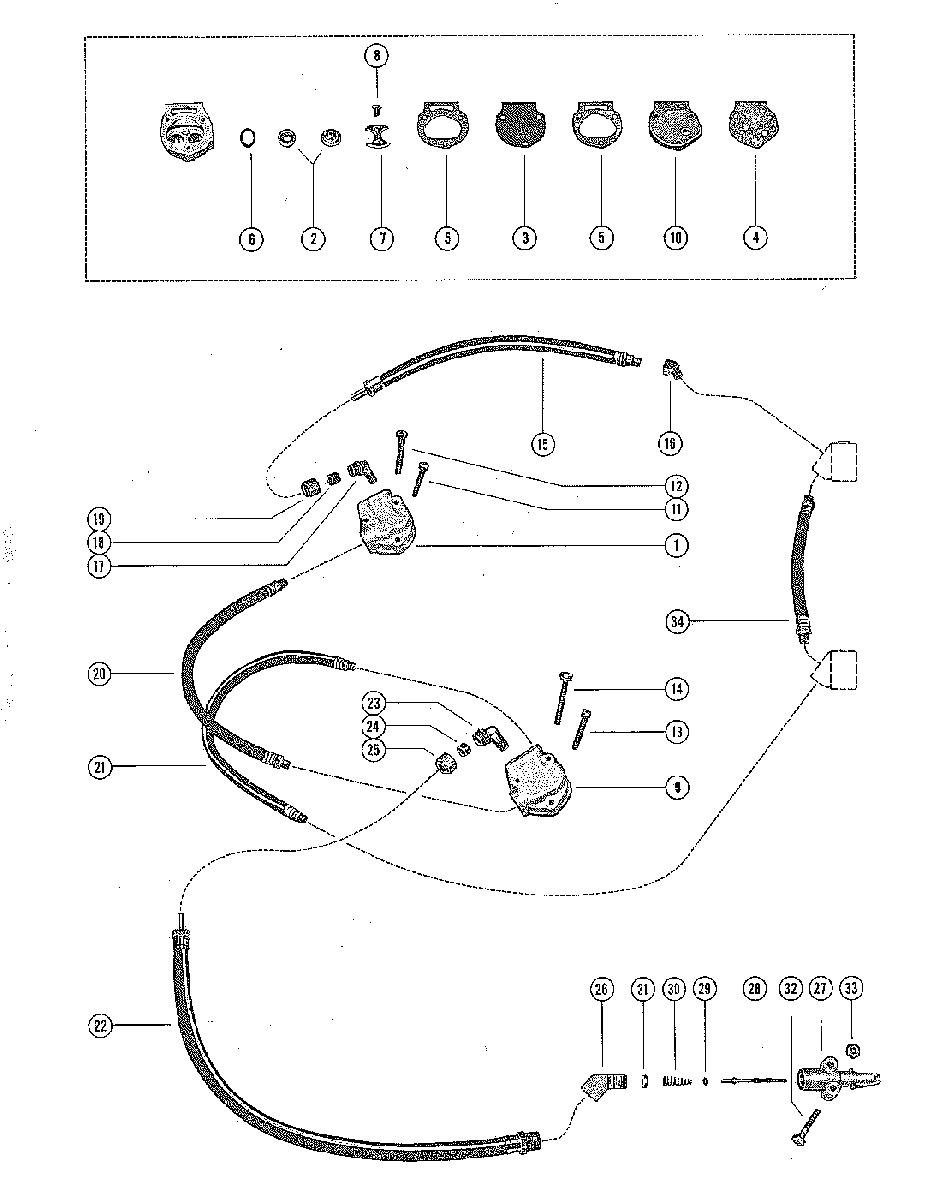

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 650 (4 CYL.) 2119749 THRU 2309310

  • №
    Артикул
    Название
  • 1
    30269A2 FUEL PUMP ASSEMBLY - UPPER
    FUEL PUMP ASSEMBLY - UPPER
  • 2
    21-30430A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    23014A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 4
    90-8M0143356 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 5
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 6
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 7
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 8
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 9
    30461A2 FUEL PUMP ASSEMBLY - LOWER
    FUEL PUMP ASSEMBLY - LOWER
  • 2
    21-30430A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    23014A1 DIAPHRAGM KIG
    DIAPHRAGM KIG
  • 4
    90-8M0143356 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 5
    90-8M0143356 GASKET, FUEL PUMP COVER
    GASKET, FUEL PUMP COVER
  • 6
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 7
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 8
    10-43725 SCREW, RETAINER TO HOUSING
    SCREW, RETAINER TO HOUSING
  • 10
    30275 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 11
    10-29878 SCREW, PUMP MOUNTING (1 1/2") - UPPER PUMP
    SCREW, PUMP MOUNTING (1 1/2") - UPPER PUMP
  • 12
    10-30274 SCREW, PUMP MOUNTING (1 3/4") - UPPER PUMP
    SCREW, PUMP MOUNTING (1 3/4") - UPPER PUMP
  • 13
    10-73013 SCREW, PUMP MOUNTING (1 1/2") - LOWER PUMP
    SCREW, PUMP MOUNTING (1 1/2") - LOWER PUMP
  • 14
    10-30273 SCREW, PUMP MOUNTING (1 7/8") - LOWER PUMP
    SCREW, PUMP MOUNTING (1 7/8") - LOWER PUMP
  • 15
    32-33154A1 FUEL LINE ASSY, PUMP TO CARBURETOR (13 1/2")
    FUEL LINE ASSY, PUMP TO CARBURETOR (13 1/2")
  • 16
    22-8M0123050 ELBOW (45), UPPER CARBURETOR
    ELBOW (45), UPPER CARBURETOR
  • 17
    22-30174 ELBOW, UPPER FUEL PUMP OUTLET
    ELBOW, UPPER FUEL PUMP OUTLET
  • 18
    22-30175 SLEEVE, FUEL PUMP OUTLET ELBOW
    SLEEVE, FUEL PUMP OUTLET ELBOW
  • 19
    22-30177 NUT, FUEL PUMP OUTLET ELBOW
    NUT, FUEL PUMP OUTLET ELBOW
  • 20
    32-31552A1 FUEL LINE ASSY, PUMP TO PUMP (12 3/8")
    FUEL LINE ASSY, PUMP TO PUMP (12 3/8")
  • 21
    32-31553A1 FUEL LINE ASSY, PUMP TO CARBURETOR (19 3/4")
    FUEL LINE ASSY, PUMP TO CARBURETOR (19 3/4")
  • 22
    32-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET
    FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET
  • 23
    22-30174 ELBOW, LOWER FUEL PUMP INLET
    ELBOW, LOWER FUEL PUMP INLET
  • 24
    22-30175 SLEEVE, FUEL PUMP INLET ELBOW
    SLEEVE, FUEL PUMP INLET ELBOW
  • 25
    22-30177 NUT, FUEL PUMP INLET ELBOW
    NUT, FUEL PUMP INLET ELBOW
  • 26
    22-37682 ELBOW, FUEL LINE TO ADAPTOR
    ELBOW, FUEL LINE TO ADAPTOR
  • 27
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    ADAPTOR, CHECK UNIT (FUEL LINE)
  • 28
    30185Q3 STEM, CHECK UNIT ADAPTOR
    STEM, CHECK UNIT ADAPTOR
  • 29
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 30
    24-30189 SPRING, ADAPTOR STEM
    SPRING, ADAPTOR STEM
  • 31
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 32
    10-69029 SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
    SCREW, ADAPTOR TO BOTTOM COWL (1 3/4")
  • 32
    10-37561 SCREW, ADAPTOR TO BOTTOM COWL (2")
    SCREW, ADAPTOR TO BOTTOM COWL (2")
  • 33
    11-20184 NUT, ADAPTOR FASTENING SCREW
    NUT, ADAPTOR FASTENING SCREW
  • 34
    32-31550A1 FUEL LINE ASSY, UPPER TO LOWER CARBURETOR (6")
    FUEL LINE ASSY, UPPER TO LOWER CARBURETOR (6")
