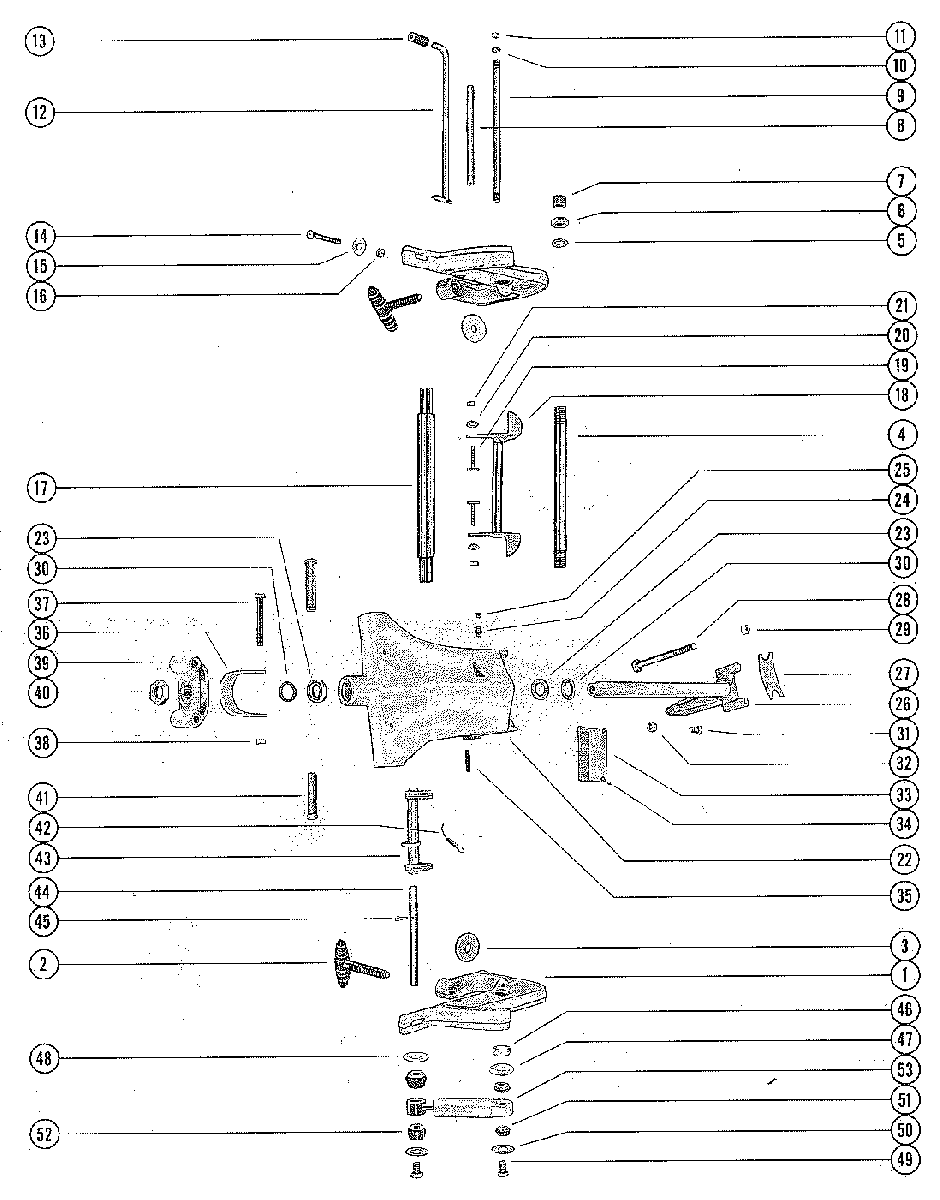

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 650 (4 CYL.) 2119749 THRU 2309310
-
№АртикулНазвание
-
11440-3296A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 SHIM, CLAMP BRACKET TILT TUBE (.010 - .020)SHIM, CLAMP BRACKET TILT TUBE (.010 - .020)
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-22053 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER - TILT LOCK PIN BUMPERSLEEVE, RUBBER - TILT LOCK PIN BUMPER
-
1410-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOMBOLT, CLAMP BRACKET TO BOAT TRANSOM
-
1512-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1611-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1755-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1830126A1 TILT STOP ASSEMBLYTILT STOP ASSEMBLY
-
1910-30128 SCREW, TILT STOP LEVER ANCHORSCREW, TILT STOP LEVER ANCHOR
-
2013-31030 WASHER, WAVE - LEVER ANCHOR SCREWWASHER, WAVE - LEVER ANCHOR SCREW
-
2111-29250 NUT, LEVER ANCHOR SCREWNUT, LEVER ANCHOR SCREW
-
221490-7256A2 SWIVEL BRACKET ASSEMBLY(SHORT SHAFT)SWIVEL BRACKET ASSEMBLY(SHORT SHAFT)
-
221482-6386A4 SWIVEL BRACKET ASSEMBLY(LONG SHAFT)SWIVEL BRACKET ASSEMBLY(LONG SHAFT)
-
2326-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
2422-69059 FITTING, GREASEFITTING, GREASE
-
2519-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
2617-49841A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (1 3/16" O.D.)
SHORT SHAFTSWIVEL PIN AND STEERING ARM ASSEMBLY (1 3/16" O.D.)
SHORT SHAFT -
2617-49840A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (1 3/16" O.D.)
LONG SHAFTSWIVEL PIN AND STEERING ARM ASSEMBLY (1 3/16" O.D.)
LONG SHAFT -
2728203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
2810-30453 BOLT, STEERING ARM TO UPPER MOUNTBOLT, STEERING ARM TO UPPER MOUNT
-
2911-34933 NUT, STEERING ARM BOLT FASTENINGNUT, STEERING ARM BOLT FASTENING
-
3012-37429 WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL)
-
3110-31830 SCREW, RIDE-GUIDE ATTACHINGSCREW, RIDE-GUIDE ATTACHING
-
3211-8M0042636 NUT, RIDE-GUIDE ATTACHING SCREWNUT, RIDE-GUIDE ATTACHING SCREW
-
3338-56267 SERIAL PLATESERIAL PLATE
-
3410-25612 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKETSCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
-
3517-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
3628205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
3710-28200 SCREW, STRAP STOP TO DRIVE SHAFT HOUSINGSCREW, STRAP STOP TO DRIVE SHAFT HOUSING
-
3811-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
3973984T YOKE, BOTTOMYOKE, BOTTOM
-
4011-37424 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
4155-696531 PIN, LOWER SHOCK MOUNTING(SHORT SHAFT)PIN, LOWER SHOCK MOUNTING(SHORT SHAFT)
-
4155-28414 PIN, LOWER SHOCK MOUNTING LONG SHAFTPIN, LOWER SHOCK MOUNTING LONG SHAFT
-
--10-28424 SCREW, LOWER SHOCK PINSCREW, LOWER SHOCK PIN
-
--11-20184 NUT, LOWER SHOCK PIN SCREWNUT, LOWER SHOCK PIN SCREW
-
4224-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
4387431 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
4456349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
4518-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4623-28199 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
4712-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
4812-840400 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
4910-28450 SCREW, NYLOK - UPPER AND LOWER SHOCK MOUNTING PINSCREW, NYLOK - UPPER AND LOWER SHOCK MOUNTING PIN
-
5012-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
5134762A1 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
-
5223-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
-
5355-58780A7 SHOCK ABSORBERSHOCK ABSORBER
