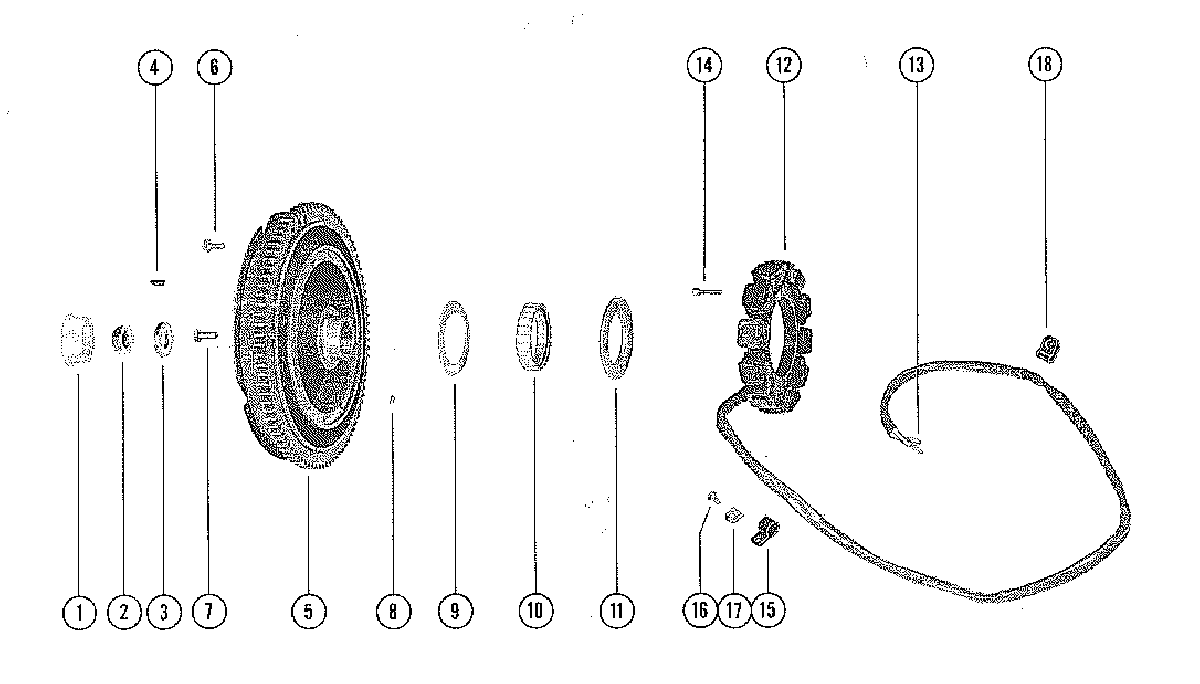

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 650 (4 CYL.) 2119749 THRU 2309310

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 2
    11-22339 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    28-45554 KEY, FLYWHEEL DRIVE
    KEY, FLYWHEEL DRIVE
  • 5
    225-2498A9 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 5
    225-2498A9 FLYWHEEL ASSEMBLY, COMPLETE
    FLYWHEEL ASSEMBLY, COMPLETE
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL
    SCREW, FLEXIBLE PLATE TO FLYWHEEL
  • 7
    10-32417 SCREW, PLATE AND HUB TO FLEXIBLE PLATE
    SCREW, PLATE AND HUB TO FLEXIBLE PLATE
  • 8
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 9
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 10
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 11
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 12
    398-2997 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 13
    30050 TERMINAL, STATOR LEAD WIRE
    TERMINAL, STATOR LEAD WIRE
  • 14
    10-57021 SCREW, STATOR TO UPPER END CAP
    SCREW, STATOR TO UPPER END CAP
  • 15
    54-22740 CLIP, STATOR LEAD TO UPPER END CAP
    CLIP, STATOR LEAD TO UPPER END CAP
  • 16
    10-41228 SCREW, STATOR LEAD CLIP FASTENING (1/2")
    SCREW, STATOR LEAD CLIP FASTENING (1/2")
  • 17
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 18
    54-46409 CLIP, STATOR LEAD CLIP TO TOP MOUNT
    CLIP, STATOR LEAD CLIP TO TOP MOUNT
