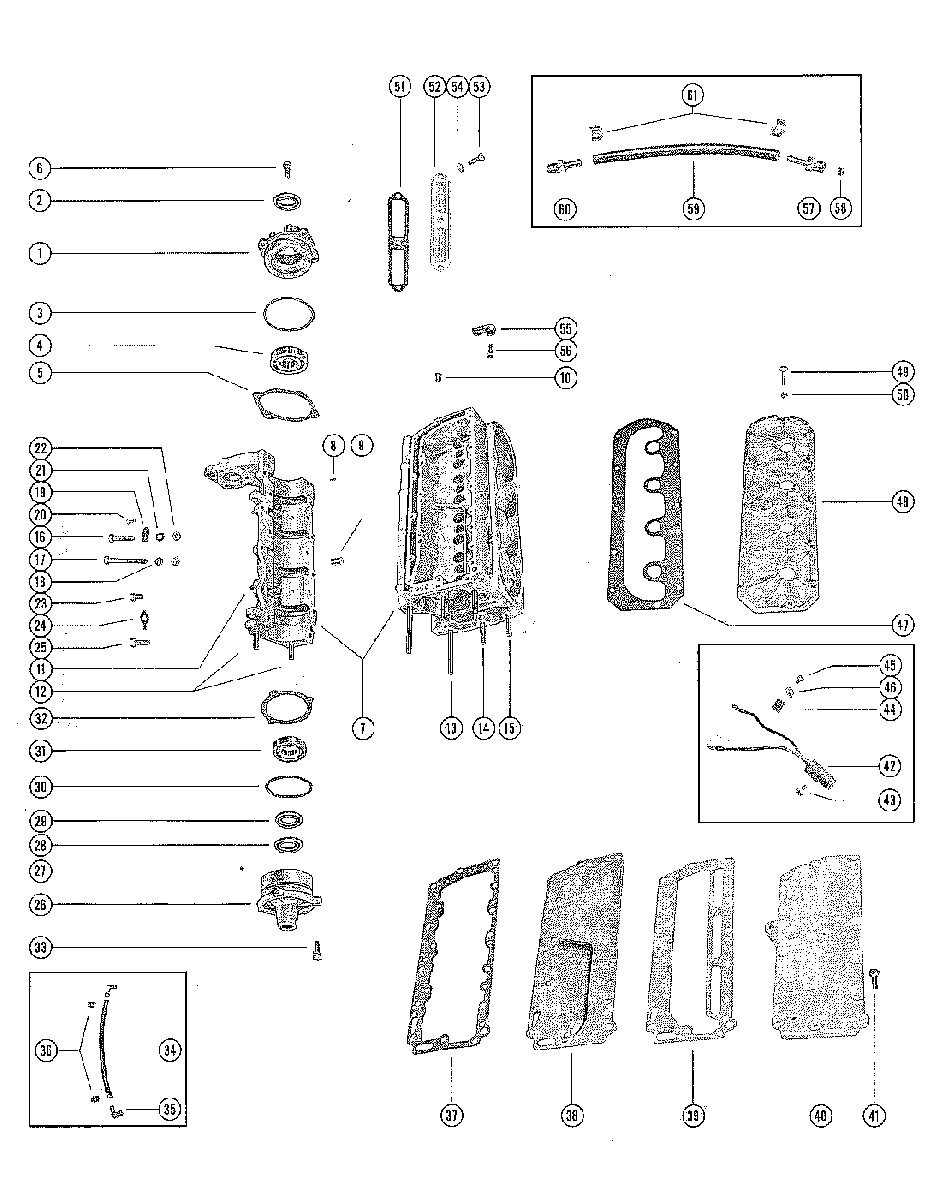

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 650 (4 CYL.) 2119749 THRU 2309310

  • №
    Артикул
    Название
  • 1
    1128-1890A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 2
    26-41953 OIL SEAL
    OIL SEAL
  • 3
    25-31305 "O" RING
    "O" RING
  • 4
    30-62567T BALL BEARING
    BALL BEARING
  • 5
    15-31283A1 SHIM, UPPER END CAP TO CRANKCASE (.002-3-5-10)
    SHIM, UPPER END CAP TO CRANKCASE (.002-3-5-10)
  • 6
    10-30225 SCREW, UPPER END CAP MOUNTING
    SCREW, UPPER END CAP MOUNTING
  • 7
    834-2758A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 8
    17-20032 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
  • 9
    17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 10
    22-328022 PLUG, PIPE - WATER PRESSURE HOLE (CYLINDER BLOCK)
    PLUG, PIPE - WATER PRESSURE HOLE (CYLINDER BLOCK)
  • 11
    16-64936 STUD, CARBURETOR MOUNTING (1 1/4")
    STUD, CARBURETOR MOUNTING (1 1/4")
  • 12
    16-64281 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 7/8")
  • 13
    16-26134 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (4 1/16")
  • 14
    16-26135 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
  • 15
    16-376531 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 11/16")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 11/16")
  • 16
    10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
  • 16
    10-32293 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
  • 16
    10-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
  • 17
    10-33008 SCREW, CRANKCASE AND STARTER MOTOR BRACKET TO CYLINDER BLOCK
    (3 1/2")
    SCREW, CRANKCASE AND STARTER MOTOR BRACKET TO CYLINDER BLOCK
    (3 1/2")
  • 18
    12-26825 WASHER, CRANKCASE AND STARTER MOTOR BRACKET SCREW
    WASHER, CRANKCASE AND STARTER MOTOR BRACKET SCREW
  • 19
    53-78201 BRACKET, GROUND STRAP TO CRANKCASE
    BRACKET, GROUND STRAP TO CRANKCASE
  • 20
    10-62568 SCREW, GROUND STRAP TO BRACKET
    SCREW, GROUND STRAP TO BRACKET
  • 21
    12-20583 WASHER, GROUND STRAP AND CRANKCASE SCREW
    WASHER, GROUND STRAP AND CRANKCASE SCREW
  • 22
    11-29250 NUT, CRANKCASE TO CYLINDER BLOCK SCREW
    NUT, CRANKCASE TO CYLINDER BLOCK SCREW
  • 23
    10-36351 SCREW, MAIN BEARING LOCKING
    SCREW, MAIN BEARING LOCKING
  • 24
    14-20091 TAB WASHER, BEARING LOCKING SCREW
    TAB WASHER, BEARING LOCKING SCREW
  • 25
    10-20359 SCREW, CENTER MAIN BEARING LOCKING
    SCREW, CENTER MAIN BEARING LOCKING
  • 26
    1126-1751A1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 27
    21-28481A1 CHECK VALVE ASSEMBLY, END CAP
    CHECK VALVE ASSEMBLY, END CAP
  • 28
    26-29478 OIL SEAL, LOWER
    OIL SEAL, LOWER
  • 29
    26-41953 OIL SEAL, UPPER
    OIL SEAL, UPPER
  • 30
    25-20081 "O" RING
    "O" RING
  • 31
    30-63742T BALL BEARING
    BALL BEARING
  • 32
    15-20085A1 SHIM, LOWER END CAP TO CRANKCASE (.002-3-5-10)
    SHIM, LOWER END CAP TO CRANKCASE (.002-3-5-10)
  • 33
    10-30225 SCREW, LOWER END CAP MOUNTING
    SCREW, LOWER END CAP MOUNTING
  • 34
    32-8M0108355 TUBE, BALANCE - MAIN BEARING
    TUBE, BALANCE - MAIN BEARING
  • 35
    22-996642 ELBOW, BALANCE TUBE TO MAIN BEARING
    ELBOW, BALANCE TUBE TO MAIN BEARING
  • 36
    54-20386 CLAMP, BALANCE TUBE TO ELBOW
    CLAMP, BALANCE TUBE TO ELBOW
  • 37
    27-37449 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 38
    37447 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
  • 39
    27-37414 GASLET, BAFFLE PLATE TO MAINFOLD COVER
    GASLET, BAFFLE PLATE TO MAINFOLD COVER
  • 40
    46298 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 41
    10-38837 SCREW, BAFFLE PLATE AND COVER MOUNTING
    SCREW, BAFFLE PLATE AND COVER MOUNTING
  • 42
    58124A1 SWITCH, MERCURY
    SWITCH, MERCURY
  • 42
    33385A5 SWITCH, MERCURY
    SWITCH, MERCURY
  • 43
    10-28708 SCREW, MERCURY SWITCH TO MANIFOLD COVER
    SCREW, MERCURY SWITCH TO MANIFOLD COVER
  • 44
    54-648552 CLIP, MERCURY SWITCH LEAD TO CRANKCASE
    CLIP, MERCURY SWITCH LEAD TO CRANKCASE
  • 45
    10-41228 SCREW, MERCURY SWITCH LEAD CLIP TO CRANKCASE
    SCREW, MERCURY SWITCH LEAD CLIP TO CRANKCASE
  • 46
    8M0084613 "D" WASHER, MERCURY SWITCH LEAD CLIP SCREW
    "D" WASHER, MERCURY SWITCH LEAD CLIP SCREW
  • 47
    27-33015 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 48
    1012-2445 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 49
    10-56500 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")
    SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")
  • 50
    11-20184 NUT, COVER MOUNTING SCREW
    NUT, COVER MOUNTING SCREW
  • 51
    27-31304 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 52
    31288 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 53
    10-20540 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
  • 53
    10-76621 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (7/8")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (7/8")
  • 53
    10-28635 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
  • 54
    12-22937 WASHER, TRANSFER PORT COVER SCREW
    WASHER, TRANSFER PORT COVER SCREW
  • 55
    37440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
  • 56
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 57
    22-62365A1 CHECK VALVE ASSEMBLY, UPPER - BLEED HOSE
    CHECK VALVE ASSEMBLY, UPPER - BLEED HOSE
  • 58
    21-28481A1 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 59
    32-9912688 HOSE, CYLINDER BLEED (8 1/2")
    HOSE, CYLINDER BLEED (8 1/2")
  • 60
    22-67902 CONNECTOR, LOWER - BLEED HOSE
    CONNECTOR, LOWER - BLEED HOSE
  • 61
    54-20387 CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR
    CLAMP, BLEED HOSE TO CHECK VALVE AND CONNECTOR
