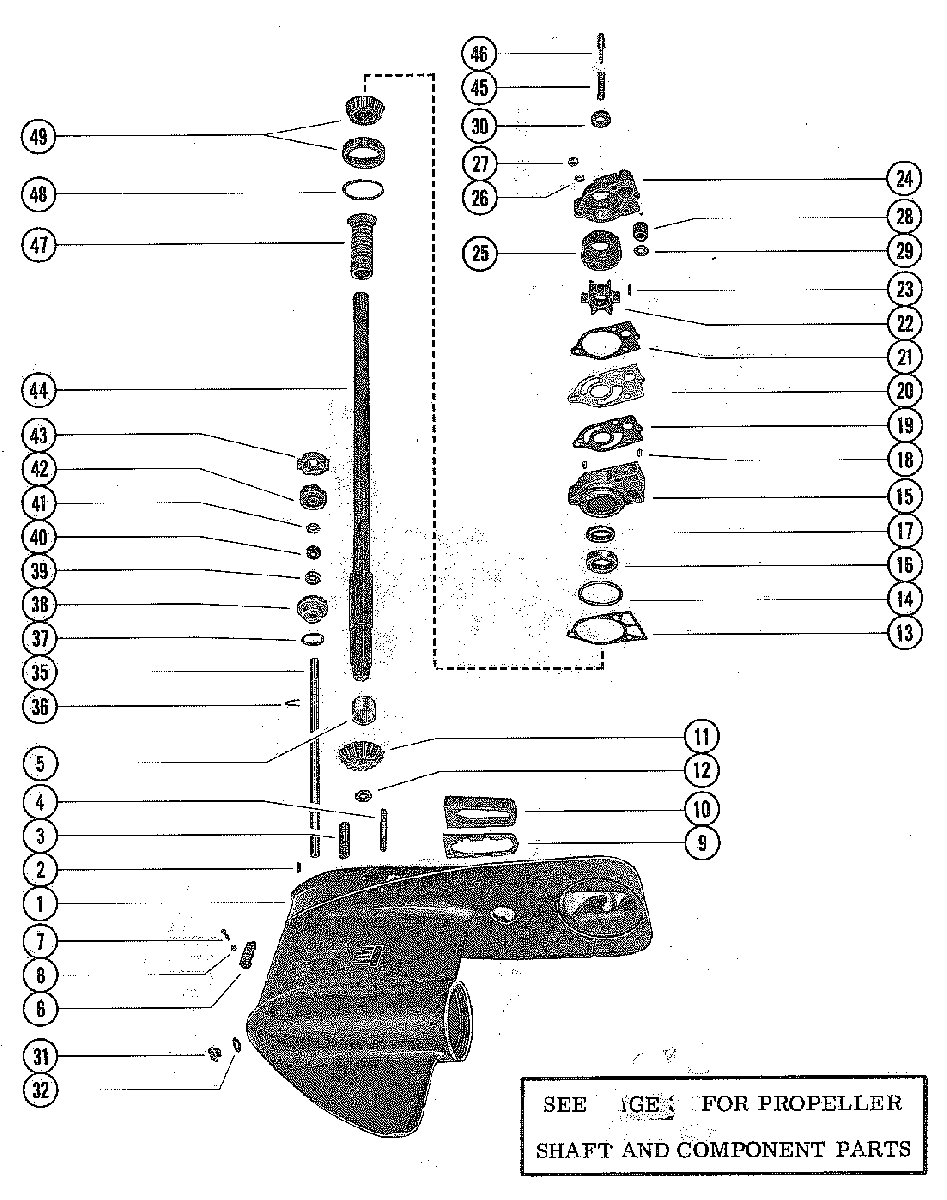

GEAR HOUSING ASSEMBLY, COMPLETE (G6) для Mercury - 650 (3 CYL.) 9112989 THRU 9135824
-
№АртикулНазвание
-
-1643-6038A9 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE FOOTNOTEGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)-SEE FOOTNOTE
-
-1643-6038A10 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE FOOTNOTEGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) -SEE FOOTNOTE
-
11643-6038A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-21438 PIN, DOWEL-GEAR HOUSINGPIN, DOWEL-GEAR HOUSING
-
316-33778 STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")STUD, WATER PUMP BODY/BASE TO GEAR HOUSING (2 5/8")
-
416-8M0034453 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 3/16")
-
531-62091T BEARING, ROLLER-DRIVE SHAFTBEARING, ROLLER-DRIVE SHAFT
-
672849A1 SCREEN ASSEMBLY, PORT AND STARBOARD (SHORT SHAFT)SCREEN ASSEMBLY, PORT AND STARBOARD (SHORT SHAFT)
-
672849A1 SCREEN, WATER INTAKE-STARBOARD -LONG SHAFTSCREEN, WATER INTAKE-STARBOARD -LONG SHAFT
-
672849A1 SCREEN, WATER INTAKE-PORT -LONG SHAFTSCREEN, WATER INTAKE-PORT -LONG SHAFT
-
710-36070 SCREW, SCREENS TO GEAR HOUSING (1 1/4")SCREW, SCREENS TO GEAR HOUSING (1 1/4")
-
811-859124 NUT, SCREEN TO GEAR HOUSING SCREWNUT, SCREEN TO GEAR HOUSING SCREW
-
992815 PLATE, SUPPORT-EXHAUST TUBE SEALPLATE, SUPPORT-EXHAUST TUBE SEAL
-
1037721001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
1143-60245 GEAR, PINION-DRIVE SHAFTGEAR, PINION-DRIVE SHAFT
-
1211-55910 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1327-32771 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1425-26855 "O"RING, WATER PUMP BASE"O"RING, WATER PUMP BASE
-
1546-73640T01 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1626-79831 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1726-90562 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1817-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
1927-19553 GASKET, LOWER-WATER PUMP BASE TO FACE PLATEGASKET, LOWER-WATER PUMP BASE TO FACE PLATE
-
2032768 PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY
-
2127-19551 GASKET, UPPER-FACE PLATE TO WATER PUMP BODYGASKET, UPPER-FACE PLATE TO WATER PUMP BODY
-
2247-89983T IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2328-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2446-77822A1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2548753 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2612-29245 WASHER, WATER PUMP BODY AND BASE STUDSWASHER, WATER PUMP BODY AND BASE STUDS
-
2711-36069 NUT, WATER PUMP BODY AND BASE STUDSNUT, WATER PUMP BODY AND BASE STUDS
-
2826-38452 SEAL, WATER PUMP BODY TO WATER TUBESEAL, WATER PUMP BODY TO WATER TUBE
-
2912-38453 WASHER, CUPPED-WATER TUBE SEALWASHER, CUPPED-WATER TUBE SEAL
-
3025-20273 RING, RUBBER-CENTRIFUGAL SLINGERRING, RUBBER-CENTRIFUGAL SLINGER
-
3110-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
3212-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
3569787A1 SHAFT ASSEMBLY, SHIFT-LOWERSHAFT ASSEMBLY, SHIFT-LOWER
-
3653-29641 CLIP, RETAINING-SHIFT SHAFTCLIP, RETAINING-SHIFT SHAFT
-
3725-25439 "O"RING, SHIFT SHAFT BUSHING"O"RING, SHIFT SHAFT BUSHING
-
3823-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
3926-24590 OIL SEAL, SHIFT SHAFT BUSHING (LOWER)OIL SEAL, SHIFT SHAFT BUSHING (LOWER)
-
4026-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
4112-31266 WASHER, RUBBER-SHIFT SHAFT BUSHINGWASHER, RUBBER-SHIFT SHAFT BUSHING
-
4278036 BASE, LOWER-REVERSE LOCKINGBASE, LOWER-REVERSE LOCKING
-
4369542 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
4445-76089A2 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
-
4445-76088A2 DRIVE SHAFT ASSEMBLY (LONG SHAFT)DRIVE SHAFT ASSEMBLY (LONG SHAFT)
-
4524-20254 SPRING, COMPRESSION-DRIVE SHAFTSPRING, COMPRESSION-DRIVE SHAFT
-
4617-30545 PIN, DRIVE SHAFTPIN, DRIVE SHAFT
-
4788181 SLEEVE, LUBRICATION-DRIVE SHAFTSLEEVE, LUBRICATION-DRIVE SHAFT
-
4815-20929A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
-
4931-38146A1 ROLLER BEARING ASSEMBLY, TAPERED-DRIVE SHAFTROLLER BEARING ASSEMBLY, TAPERED-DRIVE SHAFT
