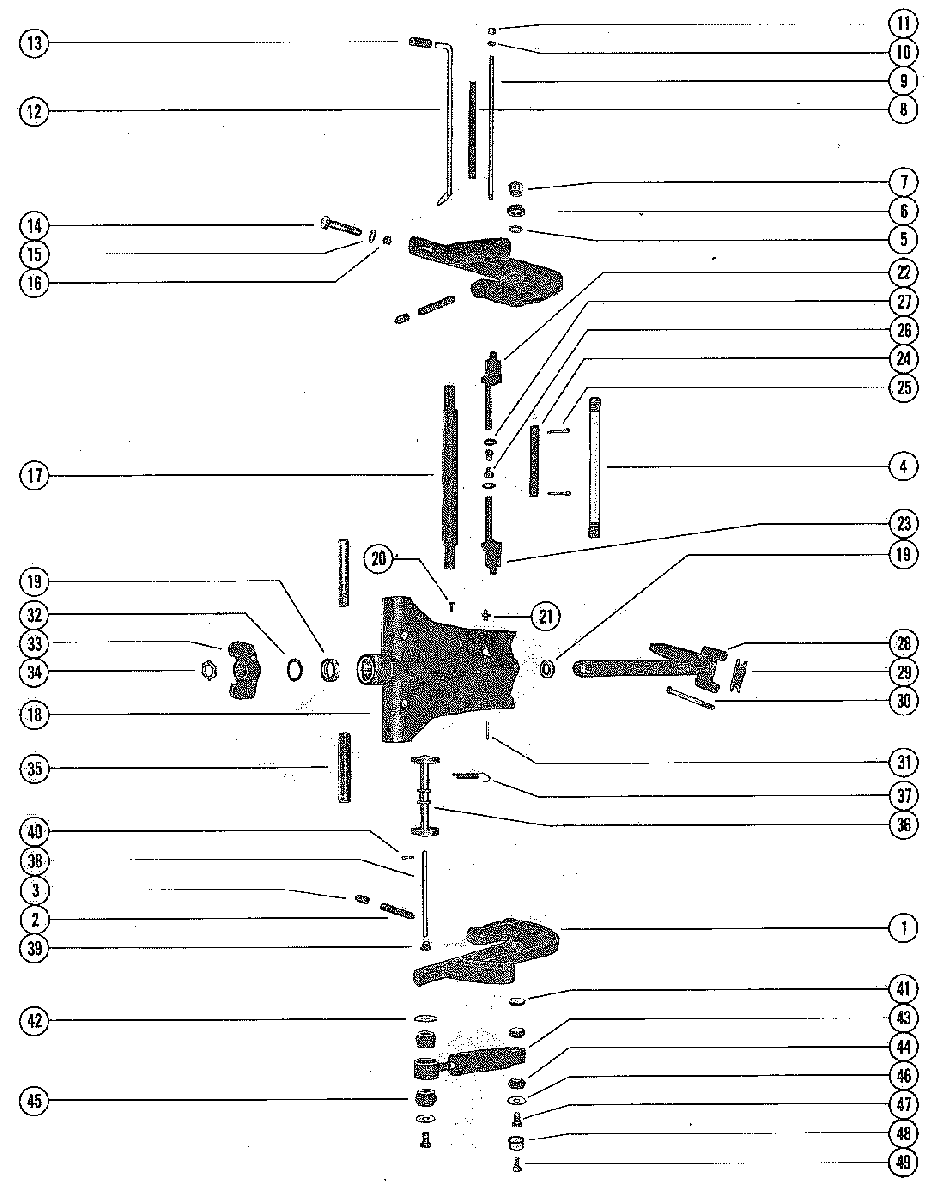

CLAMP AND SWIVEL BRACKET ASSEMBLY (G2) для Mercury - 650 (3 CYL.) 9112989 THRU 9135824

№

Артикул

Название
1

1440-8394A1 CLAMP BRACKET ASSEMBLY

CLAMP BRACKET ASSEMBLY

0 ₽
2

10-78492A1 THUMB SCREW ASSEMBLY

THUMB SCREW ASSEMBLY

0 ₽
3

75043 CAP, THUMB SCREW

CAP, THUMB SCREW

0 ₽
4

8M0041936 TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET

TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET

2 820 ₽
5

12-52864 WASHER, CLAMP BRACKET TILT TUBE

WASHER, CLAMP BRACKET TILT TUBE

0 ₽
6

11-858869 NUT, TILT TUBE FASTENING

NUT, TILT TUBE FASTENING

330 ₽
7

53078 CAP, PLASTIC -TILT TUBE

CAP, PLASTIC -TILT TUBE

0 ₽
8

23-59624 SPACER, CLAMP BRACKET STUD

SPACER, CLAMP BRACKET STUD

0 ₽
9

16-59625 STUD, CLAMP BRACKET (9 1/2")

STUD, CLAMP BRACKET (9 1/2")

0 ₽
10

13-26993 LOCKWASHER, CLAMP BRACKET STUD

LOCKWASHER, CLAMP BRACKET STUD

140 ₽
11

11-28770 NUT, CLAMP BRACKET STUD

NUT, CLAMP BRACKET STUD

110 ₽
12

17-8M0026068 TILT LOCK PIN ASSEMBLY

TILT LOCK PIN ASSEMBLY

4 970 ₽
13

32-28052 SLEEVE, RUBBER-TILT LOCK PIN BUMPER

SLEEVE, RUBBER-TILT LOCK PIN BUMPER

0 ₽
14

10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")

BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")

0 ₽
15

12-46765 WASHER, CLAMP BRACKET BOLT

WASHER, CLAMP BRACKET BOLT

570 ₽
14

10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")

BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")

500 ₽
15

12-68300 WASHER, CLAMP BRACKET BOLT

WASHER, CLAMP BRACKET BOLT

0 ₽
16

11-82670912 NUT, CLAMP BRACKET BOLT

NUT, CLAMP BRACKET BOLT

410 ₽
17

55-28416 PIN, UPPER SHOCK MOUNTING

PIN, UPPER SHOCK MOUNTING

6 970 ₽
18

1489-8597A4 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)

SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)

0 ₽
18

1490-8599A6 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)

SWIVEL BRACKET ASSEMBLY (LONG SHAFT)

0 ₽
19

26-32911 OIL SEAL, SWIVEL BRACKET

OIL SEAL, SWIVEL BRACKET

560 ₽
20

10-47828 SCREW, DRIVE-SWIVEL BRACKET

SCREW, DRIVE-SWIVEL BRACKET

0 ₽
21

22-74036 FITTING, GREASE

FITTING, GREASE

340 ₽
22

76386 TILT LOCK ASSEMBLY, STARBOARD

TILT LOCK ASSEMBLY, STARBOARD

0 ₽
23

76385T TILT LOCK ASSEMBLY, PORT

TILT LOCK ASSEMBLY, PORT

3 480 ₽
24

47802 TUBE, TILT LOCK

TUBE, TILT LOCK

0 ₽
25

18-47959 COTTER PIN, TILT LOCK

COTTER PIN, TILT LOCK

280 ₽
26

23-71574 BUSHING, TILT LOCK TUBE

BUSHING, TILT LOCK TUBE

0 ₽
27

13-69150 WASHER, WAVE-TILT LOCK TUBE

WASHER, WAVE-TILT LOCK TUBE

270 ₽
28

69540A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)

SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)

0 ₽
28

69540A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)

SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)

0 ₽
29

30711 BUMPER, STEERING ARM

BUMPER, STEERING ARM

0 ₽
30

10-66897 BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")

BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")

3 410 ₽
31

17-25598 PIN, REVERSE LOCK SPRING ATTACHING

PIN, REVERSE LOCK SPRING ATTACHING

0 ₽
32

12-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)

WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)

0 ₽
32

12-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)

WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)

0 ₽
33

77416T1 YOKE, BOTTOM

YOKE, BOTTOM

4 320 ₽
34

11-71956 NUT, SWIVEL PIN RETAINING

NUT, SWIVEL PIN RETAINING

0 ₽
35

55-696531 PIN, LOWER SHOCK MOUNTING

PIN, LOWER SHOCK MOUNTING

0 ₽
36

87432 REVERSE LOCK

REVERSE LOCK

0 ₽
37

24-29821 SPRING, REVERSE LOCK TENSION

SPRING, REVERSE LOCK TENSION

0 ₽
38

56349 SHAFT, REVERSE LOCK PIVOT

SHAFT, REVERSE LOCK PIVOT

0 ₽
39

23-69132 BUSHING, REVERSE PIVOT SHAFT

BUSHING, REVERSE PIVOT SHAFT

0 ₽
40

18-45882 COTTER PIN, REVERSE LOCK TO SHAFT

COTTER PIN, REVERSE LOCK TO SHAFT

280 ₽
41

23-73203 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET

SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET

0 ₽
42

12-59378 WASHER, LOWER BUSHING RETAINER (INNER)

WASHER, LOWER BUSHING RETAINER (INNER)

220 ₽
43

55-58780A7 SHOCK ABSORBER

SHOCK ABSORBER

32 410 ₽
44

23-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)

BUSHING, RUBBER-SHOCK ABSORBER (UPPER)

0 ₽
45

23-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)

BUSHING, RUBBER-SHOCK ABSORBER (LOWER)

0 ₽
46

12-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)

WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)

260 ₽
47

10-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")

SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")

0 ₽
48

70679 COVER, UPPER AND LOWER SHOCK MOUNTING PIN

COVER, UPPER AND LOWER SHOCK MOUNTING PIN

0 ₽
49

10-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")

SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")

150 ₽
