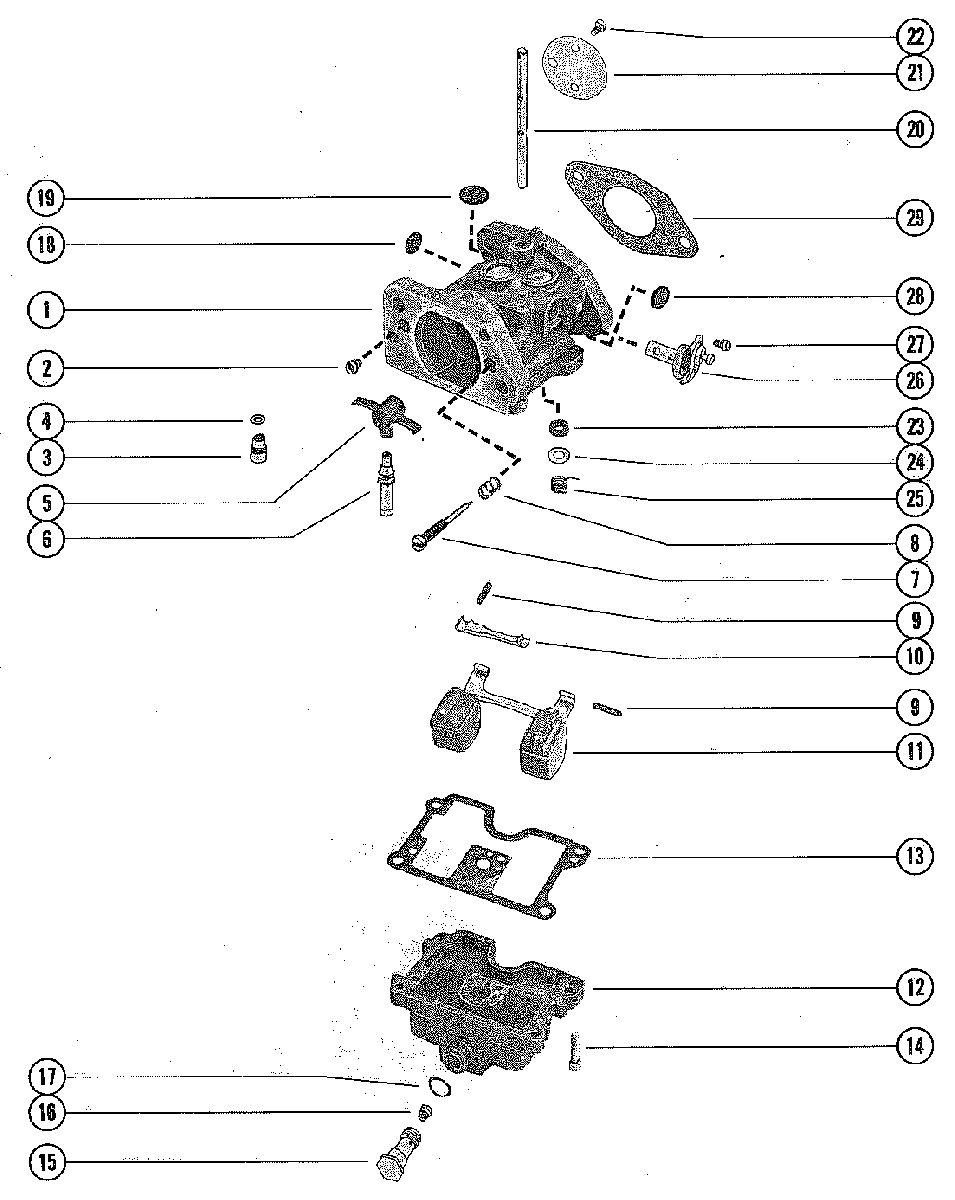

CARBURETOR ASSEMBLY для Mercury - 650 (3 CYL.) 9112989 THRU 9135824

  • №
    Артикул
    Название
  • 1
    1379-6071A5 CARBURETOR ASSEMBLY, COMPLETE (SHORT SHAFT)
    CARBURETOR ASSEMBLY, COMPLETE (SHORT SHAFT)
  • 1
    1379-6071A9 CARBURETOR ASSEMBLY, COMPLETE (LONG SHAFT)
    CARBURETOR ASSEMBLY, COMPLETE (LONG SHAFT)
  • 2
    1395-6207 JET, VENT BOWL (.072)-SHORT SHAFT
    JET, VENT BOWL (.072)-SHORT SHAFT
  • 2
    1395-6359 JET, VENT BOWL (.052) LONG SHAFT
    JET, VENT BOWL (.052) LONG SHAFT
  • 3
    1395-83181 INLET NEEDLE AND SEAT
    INLET NEEDLE AND SEAT
  • 4
    90-8M0143356 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 5
    1395-6685 VENTURI ASSEMBLY
    VENTURI ASSEMBLY
  • 6
    90-8M0143356 NOZZLE
    NOZZLE
  • 7
    90-8M0143356 SCREW, IDLE MIXTURE
    SCREW, IDLE MIXTURE
  • 8
    90-8M0143356 SPRING, IDLE MIXTURE
    SPRING, IDLE MIXTURE
  • 9
    90-8M0143356 PIN, FLOAT
    PIN, FLOAT
  • 10
    90-8M0143356 LEVER, FLOAT
    LEVER, FLOAT
  • 11
    19273 FLOAT
    FLOAT
  • 12
    1395-6206 FUEL BOWL
    FUEL BOWL
  • 13
    90-8M0143356 GASKET, FUEL BOWL
    GASKET, FUEL BOWL
  • 14
    90-8M0143356 SCREW, FUEL BOWL
    SCREW, FUEL BOWL
  • 15
    1395-6199 PLUG, MAIN JET
    PLUG, MAIN JET
  • 16
    1395-6201 JET, MAIN (.080)-SHORT SHAFT
    JET, MAIN (.080)-SHORT SHAFT
  • 16
    1395-6202 JET, MAIN (.088)-LONG SHAFT
    JET, MAIN (.088)-LONG SHAFT
  • 17
    90-8M0143356 GASKET, MAIN JET PLUG
    GASKET, MAIN JET PLUG
  • 18
    90-8M0143356 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 19
    90-8M0143356 WELCH PLUG (9/16")
    WELCH PLUG (9/16")
  • 20
    1395-4807 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 21
    1395-6196 VALVE, THROTTLE
    VALVE, THROTTLE
  • 22
    90-8M0143356 SCREW, VALVE TO THROTTLE SHAFT
    SCREW, VALVE TO THROTTLE SHAFT
  • 23
    1395-6204 SEAL, THROTTLE SHAFT
    SEAL, THROTTLE SHAFT
  • 24
    1395-6203 WASHER, THROTTLE SHAFT
    WASHER, THROTTLE SHAFT
  • 25
    90-8M0143356 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 26
    1395-6198 VALVE ASSEMBLY, ENRICHMENT
    VALVE ASSEMBLY, ENRICHMENT
  • 27
    90-8M0143356 SCREW, ENRICHMENT BRACKET
    SCREW, ENRICHMENT BRACKET
  • 28
    90-8M0143356 WELCH PLUG (7/16")
    WELCH PLUG (7/16")
  • 29
    27-733771 GASKET, CARBURETORO
    GASKET, CARBURETORO
  • --
    1395-6200 GASKET KIT
    GASKET KIT
  • --
    1395-6208 REPAIR PARTS KIT (SHORT SHAFT)
    REPAIR PARTS KIT (SHORT SHAFT)
  • --
    812953 REPAIR PARTS KIT (LONG SHAFT)
    REPAIR PARTS KIT (LONG SHAFT)
