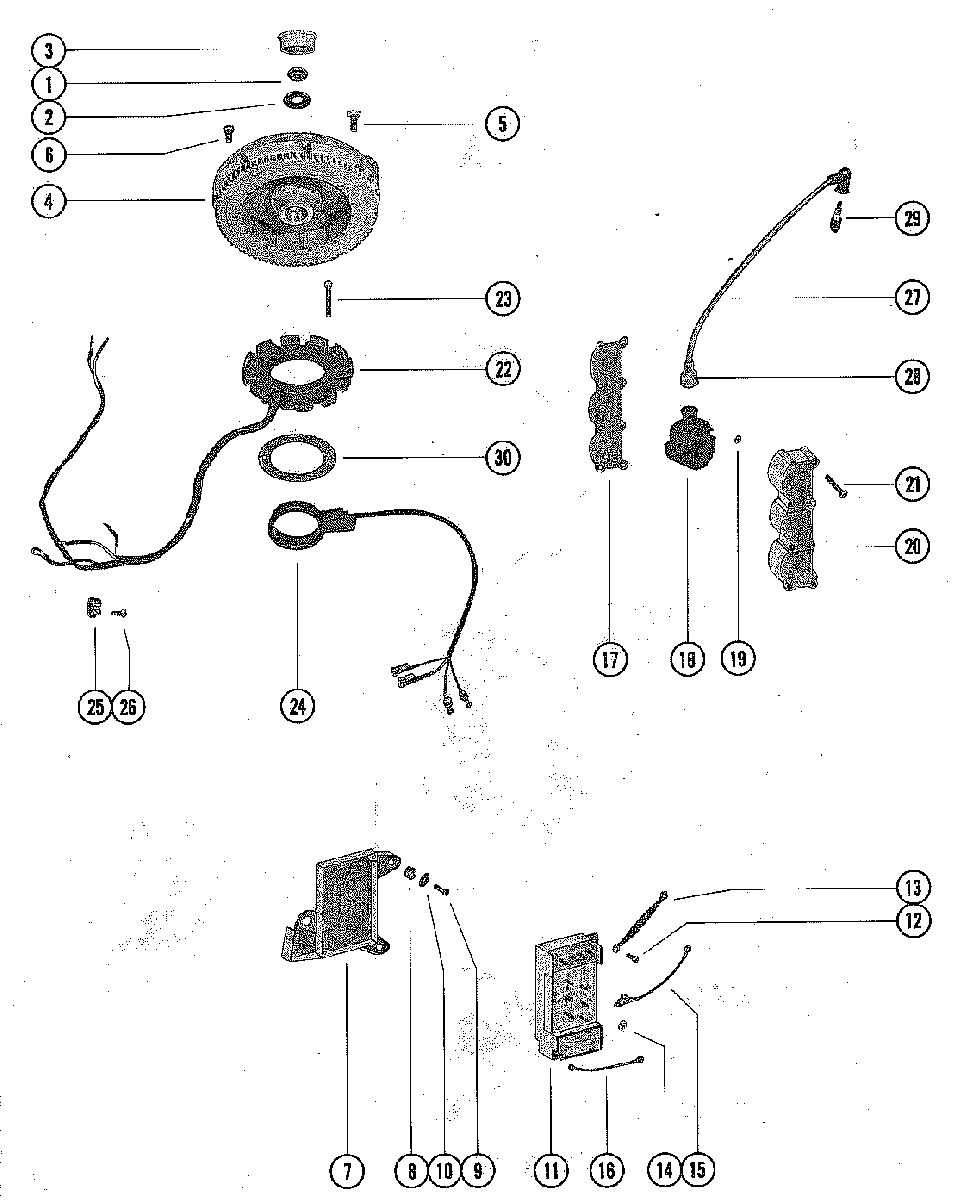

FLYWHEEL, SWITCH BOX, IGNITION COIL AND STATOR ASSEMBLY для Mercury - 650 (3 CYL.) 9112989 THRU 9135824

  • №
    Артикул
    Название
  • 1
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 2
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 3
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 4
    248-8722A5 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 5
    10-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
    SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
  • 6
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 7
    889351 PLATE, SWITCH
    PLATE, SWITCH
  • 8
    25-57009001 GROMMET, SWITCH BOX PLATE
    GROMMET, SWITCH BOX PLATE
  • 9
    10-824941 SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
    SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
  • 10
    12-56720 WASHER, SWITCH BOX PLATE SCREW
    WASHER, SWITCH BOX PLATE SCREW
  • 11
    332-7778A12 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 12
    10-26251 SCREW, SWITCH BOX TO PLATE (13/16")
    SCREW, SWITCH BOX TO PLATE (13/16")
  • 13
    46933A6 WIRE ASSEMBLY, SWITCH BOX SCREW
    WIRE ASSEMBLY, SWITCH BOX SCREW
  • 14
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 15
    84-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
  • 15
    84-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)
  • 15
    84-68896A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)
  • 16
    84-60466A17 WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
    WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
  • 17
    73439 PLATE, MOUNTING-IGNITION COIL
    PLATE, MOUNTING-IGNITION COIL
  • 18
    339-5288T2 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 19
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 20
    43542 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 21
    10-46368 SCREW, COVER TO MOUNTING PLATE (2")
    SCREW, COVER TO MOUNTING PLATE (2")
  • 22
    398-5704A7 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 23
    10-63136 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 24
    96455A8 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 25
    54-28700 CLAMP, STATOR LEADS ATTACHING
    CLAMP, STATOR LEADS ATTACHING
  • 26
    10-98253 SCREW, CLAMP TO CRANKCASE (1/2")
    SCREW, CLAMP TO CRANKCASE (1/2")
  • 27
    84-813715A1 WIRE ASSEMBLY, SPARK PLUG
    WIRE ASSEMBLY, SPARK PLUG
  • 28
    332-2854T01 BOOT, IGNITION COIL END
    BOOT, IGNITION COIL END
  • 29
    33-97180Q SPARK PLUG (AC#V40FFM)
    SPARK PLUG (AC#V40FFM)
  • 30
    15-74049 SHIM, STATOR
    SHIM, STATOR
