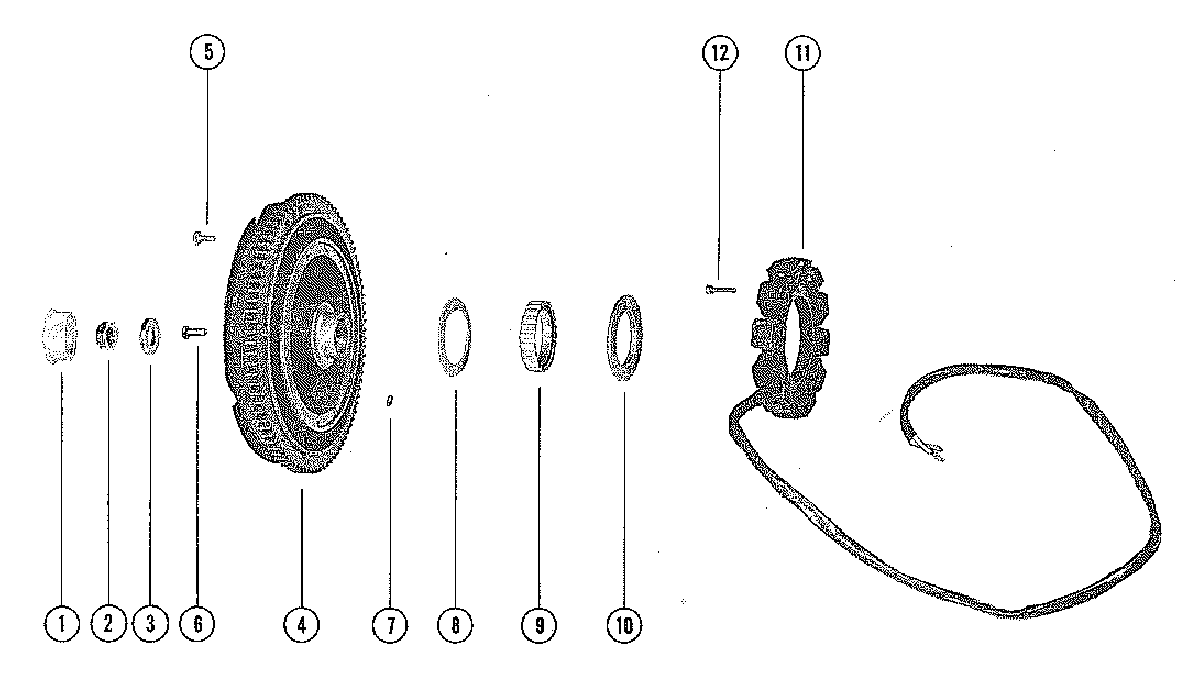

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 650 (3 CYL.) 9020074 THRU 9112988

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 2
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    225-4591A7 FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
    FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
  • 4
    225-4591A7 FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 5
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (3/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (3/8")
  • 6
    10-68997 SCREW, PLATE AND HUB (3/4")
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
    SCREW, PLATE AND HUB (3/4")
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
  • 6
    10-69088 SCREW, PLATE AND HUB (7/8")
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    SCREW, PLATE AND HUB (7/8")
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 7
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 8
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 9
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 10
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 11
    398-4634 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 12
    10-57021 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
