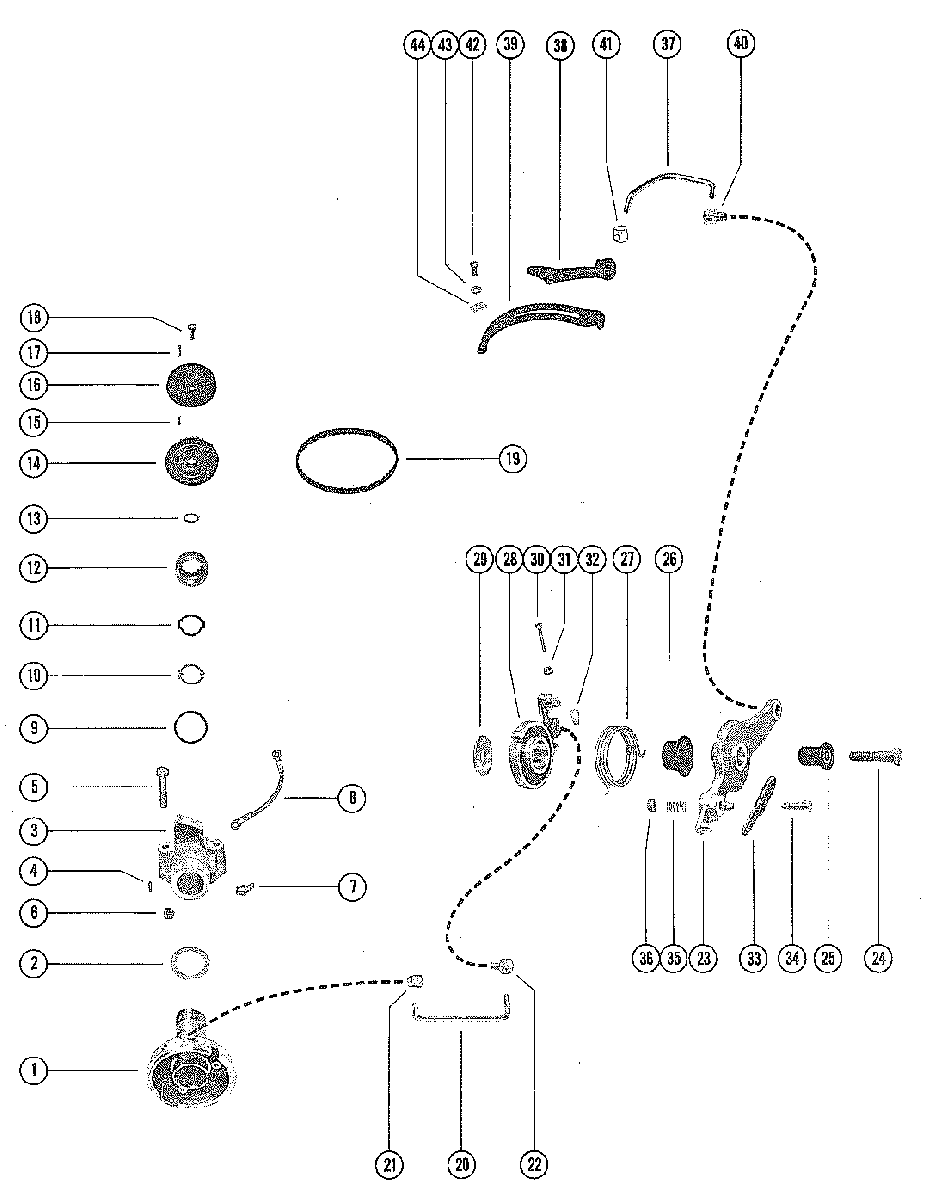

DISTRIBUTOR ADAPTOR AND THROTTLE LINKAGE для Mercury - 650 (3 CYL.) 9020074 THRU 9112988

  • №
    Артикул
    Название
  • 1
    332-4797A9 HOUSING ASSEMBLY, DISTRIBUTOR
    HOUSING ASSEMBLY, DISTRIBUTOR
  • 2
    12-60569 WASHER, DISTRIBUTOR ADAPTOR TO DISTRIBUTOR HOUSING
    WASHER, DISTRIBUTOR ADAPTOR TO DISTRIBUTOR HOUSING
  • 3
    60576 ADAPTOR, DISTRIBUTOR
    UNITED STATES 3807832 AND BELOW
    AUSTRALIA 8015539 AND BELOW
    BELGIUM 9046298 AND BELOW
    CANADA 7029947 AND BELOW
    ADAPTOR, DISTRIBUTOR
    UNITED STATES 3807832 AND BELOW
    AUSTRALIA 8015539 AND BELOW
    BELGIUM 9046298 AND BELOW
    CANADA 7029947 AND BELOW
  • 3
    67304 ADAPTOR, DISTRIBUTOR
    UNITED STATES 3807833 AND UP
    AUSTRALIA 8015540 AND UP
    BELGIUM 9046299 AND UP
    CANADA 9029948 AND UP
    ADAPTOR, DISTRIBUTOR
    UNITED STATES 3807833 AND UP
    AUSTRALIA 8015540 AND UP
    BELGIUM 9046299 AND UP
    CANADA 9029948 AND UP
  • 4
    17-8M0084726 PIN, DISTRIBUTOR ADAPTOR TO CRANKCASE LOCATING
    PIN, DISTRIBUTOR ADAPTOR TO CRANKCASE LOCATING
  • 5
    10-34438 SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE (2 3/8")
    SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE (2 3/8")
  • 6
    11-29250 NUT, DISTRIBUTOR ADAPTOR SCREW
    NUT, DISTRIBUTOR ADAPTOR SCREW
  • 7
    22-25094 FITTING, GREASE - DISTRIBUTOR ADAPTOR
    FITTING, GREASE - DISTRIBUTOR ADAPTOR
  • 8
    84-60871A3 CABLE ASSEMBLY, ADAPTOR TO FRONT SUPPORT BRACKET
    CABLE ASSEMBLY, ADAPTOR TO FRONT SUPPORT BRACKET
  • 9
    12-27939 WASHER, DISTRIBUTOR ADAPTOR
    WASHER, DISTRIBUTOR ADAPTOR
  • 10
    14-27960 TAB WASHER, ADAPTOR CAP FASTENING
    TAB WASHER, ADAPTOR CAP FASTENING
  • 11
    13-27959 WASHER, WAVE - DISTRIBUTOR ADAPTOR
    WASHER, WAVE - DISTRIBUTOR ADAPTOR
  • 12
    54567 CAP, DISTRIBUTOR HOUSING
    CAP, DISTRIBUTOR HOUSING
  • 13
    23-29909 SPACER, DRIVE PULLEY
    SPACER, DRIVE PULLEY
  • 14
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 15
    17-29908 PIN, ROLL - FLANGE LOCATING
    PIN, ROLL - FLANGE LOCATING
  • 16
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 17
    28-29910 KEY, DISTRIBUTOR DRIVER
    KEY, DISTRIBUTOR DRIVER
  • 18
    10-68554 SCREW, PULLEY CLAMPING (1/2")
    SCREW, PULLEY CLAMPING (1/2")
  • 19
    20140 BELT, TIMING
    BELT, TIMING
  • 20
    64868 ROD, LINK - SPARK ADVANCE
    ROD, LINK - SPARK ADVANCE
  • 21
    60572 BARREL, NYLON - LINK ROD TO DISTRIBUTOR HOUSING
    BARREL, NYLON - LINK ROD TO DISTRIBUTOR HOUSING
  • 22
    27947 SWIVEL, LINK ROD TO SPARK ADVANCE LEVER
    SWIVEL, LINK ROD TO SPARK ADVANCE LEVER
  • 23
    60578 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 24
    10-818165 SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
    SCREW, THROTTLE CONTROL LEVER TO CYLINDER BLOCK (1 3/4")
  • 25
    23-55164 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 26
    23-55171 BUSHING, THROTTLE CONTROL LEVER SCREW
    BUSHING, THROTTLE CONTROL LEVER SCREW
  • 27
    24-55162 SPRING, RETURN - SPARK ADVANCE LEVER
    SPRING, RETURN - SPARK ADVANCE LEVER
  • 28
    60579 LEVER, SPARK ADVANCE
    LEVER, SPARK ADVANCE
  • 29
    12-46765 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 30
    10-69003 SCREW, SPARK ADVANCE ADJUSTING (1 1/4")
    SCREW, SPARK ADVANCE ADJUSTING (1 1/4")
  • 31
    11-68219 NUT, SPARK ADVANCE ADJUSTING SCREW
    NUT, SPARK ADVANCE ADJUSTING SCREW
  • 32
    48039 CAP, SPARK ADJUSTING SCREW
    CAP, SPARK ADJUSTING SCREW
  • 33
    39483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
    LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
  • 34
    10-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
    SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
  • 35
    24-20099 SPRING, COMPRESSION - LATCH SCREW
    SPRING, COMPRESSION - LATCH SCREW
  • 36
    11-826709109 NUT, LATCH ATTACHING SCREW
    NUT, LATCH ATTACHING SCREW
  • 37
    64869 ROD, LINK - THROTTLE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
    ROD, LINK - THROTTLE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
  • 38
    65914 CAM, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
    CAM, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
  • 39
    76864 HOUSING, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
    HOUSING, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
  • 37
    66287 ROD, LINK - THROTTLE
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
    ROD, LINK - THROTTLE
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
  • 38
    65914 CAM, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
    CAM, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
  • 39
    76864 HOUSING, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
    HOUSING, NYLON - THROTTLE ACTUATOR
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
  • 40
    27947 SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, LINK ROD TO THROTTLE CONTROL LEVER
  • 41
    60572 BARREL, NYLON - THROTTLE LINK ROD TO ACTUATOR CAM
    BARREL, NYLON - THROTTLE LINK ROD TO ACTUATOR CAM
  • 42
    10-37571 SCREW, HOUSING TO CRANKCASE (1/2")
    SCREW, HOUSING TO CRANKCASE (1/2")
  • 43
    13-26996 LOCKWASHER, HOUSING TO CRANKCASE SCREW
    LOCKWASHER, HOUSING TO CRANKCASE SCREW
  • 44
    60570 PLATE, RETAINER - ACTUATOR HOUSING
    PLATE, RETAINER - ACTUATOR HOUSING
