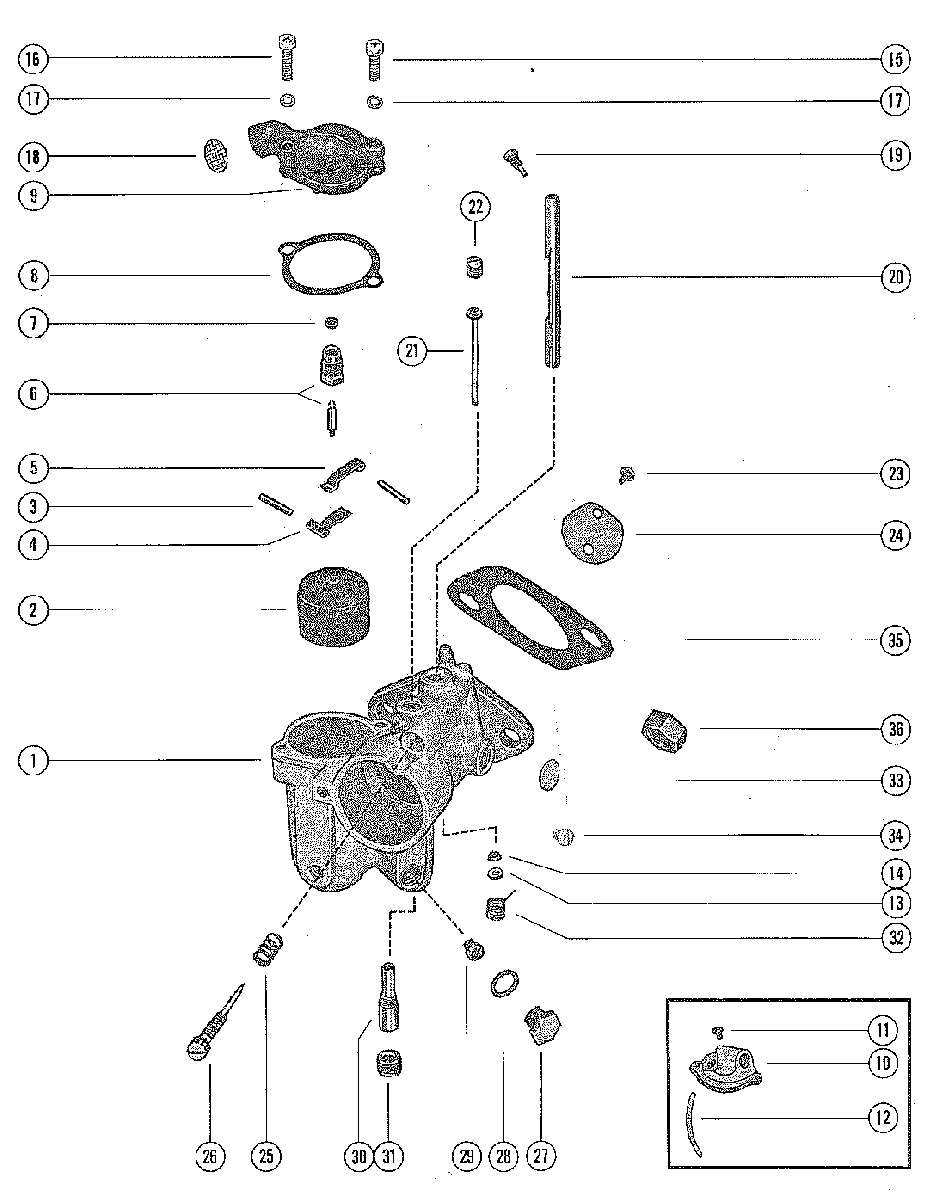

CARBURETOR ASSEMBLY для Mercury - 650 (3 CYL.) 9020074 THRU 9112988

  • №
    Артикул
    Название
  • 1
    1360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
  • 1
    1360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660088 THRU 4136684
    AUSTRALIA 8009825 THRU 8029189
    BELGIUM 9031354 THRU 9082138
    CANADA 7019758 THRU 7051132
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660088 THRU 4136684
    AUSTRALIA 8009825 THRU 8029189
    BELGIUM 9031354 THRU 9082138
    CANADA 7019758 THRU 7051132
  • 1
    1360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 2
    1395-8673 FLOAT ASSEMBLY
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
    FLOAT ASSEMBLY
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
  • 2
    1395-8673 FLOAT ASSEMBLY
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    FLOAT ASSEMBLY
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-83181 INLET NEEDLE, SEAT AND GASKET
    INLET NEEDLE, SEAT AND GASKET
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 9
    1399-5152 COVER, FLOAT BOWL
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
    COVER, FLOAT BOWL
    UNITED STATES 4136684 AND BELOW
    AUSTRALIA 8029189 AND BELOW
    BELGIUM 9082138 AND BELOW
    CANADA 7051132 AND BELOW
  • 10
    1395-5680 COVER, FLOAT BOWL
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    COVER, FLOAT BOWL
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 11
    1395-5815 JET, GOWL VENT (.086)
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    JET, GOWL VENT (.086)
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 12
    32-892024122 HOSE, ECONOMIZER
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    HOSE, ECONOMIZER
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 13
    12-71052 WASHER, SEAL RETAINER
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    WASHER, SEAL RETAINER
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 14
    1395-6204 SEAL, THROTTLE SHAFT
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    SEAL, THROTTLE SHAFT
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 15
    10-52195 SCREW, FLOAT BOWL COVER (SHORT)
    SCREW, FLOAT BOWL COVER (SHORT)
  • 16
    1395-4804 SCREW, FLOAT BOWL COVER (LONG)
    SCREW, FLOAT BOWL COVER (LONG)
  • 17
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 18
    1395-4805 SCREEN, FILTER
    SCREEN, FILTER
  • 19
    90-8M0143356 SCREW, THROTTLE STOP LEVER
    SCREW, THROTTLE STOP LEVER
  • 20
    1395-4807 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 21
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 22
    1395-4540 SCREW, BODY (IDLE TUBE)
    SCREW, BODY (IDLE TUBE)
  • 23
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 24
    1395-5200 SHUTTER, THROTTLE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
    SHUTTER, THROTTLE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
  • 24
    1395-9017 SHUTTER, THROTTLE
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
    SHUTTER, THROTTLE
    UNITED STATES 3660088 AND UP
    AUSTRALIA 8009835 AND UP
    BELGIUM 9031354 AND UP
    CANADA 7019758 AND UP
  • 25
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 26
    1399-3515 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 27
    1395-4541 SCREW, PLUG - MAIN FUEL JET CHANNEL
    SCREW, PLUG - MAIN FUEL JET CHANNEL
  • 28
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 29
    1399-3796 JET, MAIN FUEL (.076)
    JET, MAIN FUEL (.076)
  • 29
    1399-3794 JET, MAIN FUEL (.074) - STANDARD
    JET, MAIN FUEL (.074) - STANDARD
  • 29
    1395-6207 JET, MAIN FUEL (.072)
    JET, MAIN FUEL (.072)
  • 29
    1395-6030 JET, MAIN FUEL (.070)
    JET, MAIN FUEL (.070)
  • 30
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
  • 31
    1395-4542 SCREW, PLUG - MAIN NOZZLE
    SCREW, PLUG - MAIN NOZZLE
  • 32
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 33
    90-8M0143356 WELCH PLUG, BOY CHANNEL
    WELCH PLUG, BOY CHANNEL
  • 34
    1395-4543 SCREW, BODY CHANNEL
    SCREW, BODY CHANNEL
  • --
    1395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)
    GASKET AND PACKING SET (1 PER CARBURETOR)
  • --
    1395-51091 REPAIR PARTS KIT (1 PER CARBURETOR)
    REPAIR PARTS KIT (1 PER CARBURETOR)
  • 35
    27-481641 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 36
    11-862902 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
