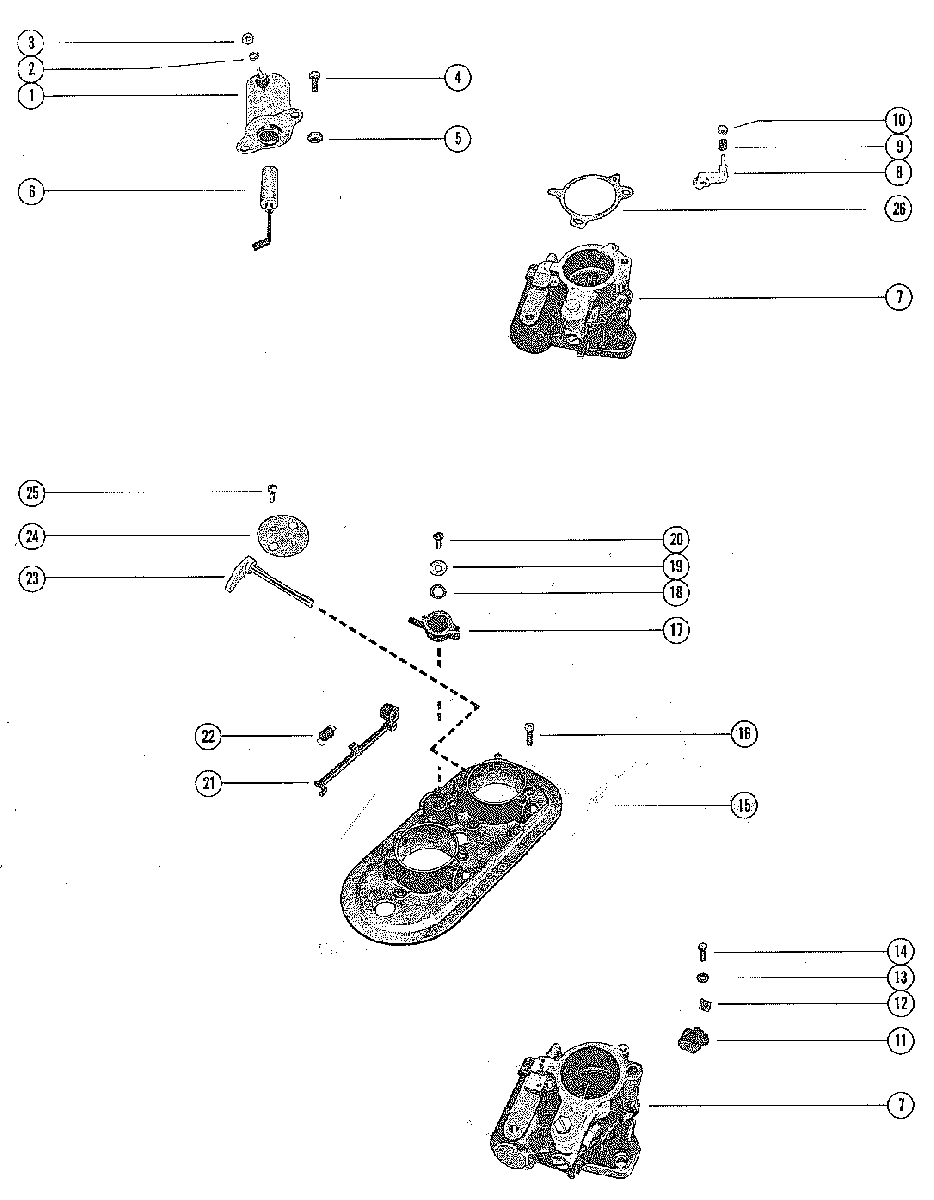

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 650 (3 CYL.) 9020074 THRU 9112988

  • №
    Артикул
    Название
  • 1
    60549A7 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
    LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
  • 3
    11-68219 NUT, HARNESS LEAD TO CHOKE SOLENOID ATTACHING
    NUT, HARNESS LEAD TO CHOKE SOLENOID ATTACHING
  • 4
    10-33524 SCREW, CHOKE SOLENOID ATTACHING (5/8")
    SCREW, CHOKE SOLENOID ATTACHING (5/8")
  • 5
    11-29250 NUT, CHOKE SOLENOID ATTACHING SCREWS
    NUT, CHOKE SOLENOID ATTACHING SCREWS
  • 6
    56074A5 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 7
    1360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660087 AND BELOW
    AUSTRALIA 8009824 AND BELOW
    BELGIUM 9031353 AND BELOW
    CANADA 7019757 AND BELOW
  • 7
    1360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660088 THRU 4136684
    AUSTRALIA 8009825 THRU 8029189
    BELGIUM 9031354 THRU 9082138
    CANADA 7019758 THRU 7051132
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 3660088 THRU 4136684
    AUSTRALIA 8009825 THRU 8029189
    BELGIUM 9031354 THRU 9082138
    CANADA 7019758 THRU 7051132
  • 7
    1360-5615A4 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
  • 8
    63985A1 LEVER, THROTTLE
    LEVER, THROTTLE
  • 9
    63987 CAM, THROTTLE LEVER
    CAM, THROTTLE LEVER
  • 10
    11-63983 NUT, CAM TO THROTTLE LEVER
    NUT, CAM TO THROTTLE LEVER
  • 11
    60292A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 12
    28-89694 INSERT, THROTTLE SHAFT COUPLING
    INSERT, THROTTLE SHAFT COUPLING
  • 13
    11-92500 WASHER, ROLLED - COUPLING
    WASHER, ROLLED - COUPLING
  • 14
    10-60293 SCREW, ROLLED WASHER TO COUPLING
    SCREW, ROLLED WASHER TO COUPLING
  • 15
    60120 HOUSING, CHOKE
    HOUSING, CHOKE
  • 16
    10-38055 SCREW, CHOKE HOUSING MOUNTING (5/8")
    SCREW, CHOKE HOUSING MOUNTING (5/8")
  • 17
    60312 LEVER, MANUAL CHOKE
    LEVER, MANUAL CHOKE
  • 18
    13-34632 WASHER, WAVE - CHOKE LEVER TO CHOKE HOUSING SCREW
    WASHER, WAVE - CHOKE LEVER TO CHOKE HOUSING SCREW
  • 19
    12-34392 WASHER, CHOKE LEVER TO CHOKE HOUSING SCREW
    WASHER, CHOKE LEVER TO CHOKE HOUSING SCREW
  • 20
    10-20597 SCREW, CHOKE LEVER TO CHOKE HOUSING (3/8")
    SCREW, CHOKE LEVER TO CHOKE HOUSING (3/8")
  • 21
    60305 ROD, CHOKE
    ROD, CHOKE
  • 22
    24-60288 SPRING, TENSION - CHOKE ROD
    SPRING, TENSION - CHOKE ROD
  • 23
    60290A1 CHOKE ARM LEVER ASSEMBLY
    CHOKE ARM LEVER ASSEMBLY
  • 24
    60291 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 25
    10-60846 SCREW, CHOKE SHUTTER TO CHOKE LEVER (1/4")
    SCREW, CHOKE SHUTTER TO CHOKE LEVER (1/4")
  • 26
    27-71827 GASKET, CARBURETOR TO CHOKE PLATE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
    GASKET, CARBURETOR TO CHOKE PLATE
    UNITED STATES 4136685 AND UP
    AUSTRALIA 8029190 AND UP
    BELGIUM 9082139 AND UP
    CANADA 7051133 AND UP
