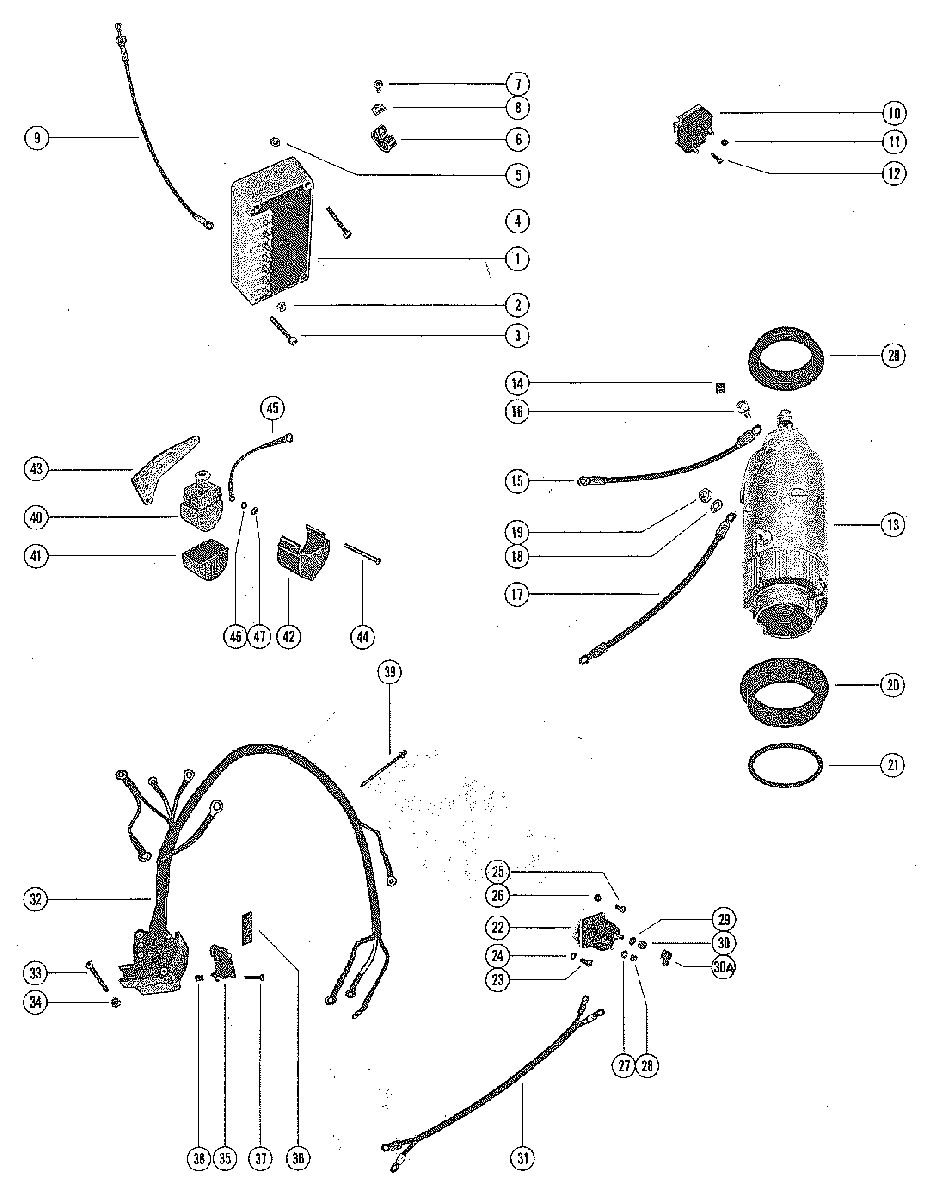

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS для Mercury - 650 (3 CYL.) 8006640 THRU 8042349
-
№АртикулНазвание
-
1332-4796A6 SWITCH BOX ASSEMBLY, COMPLETE
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOWSWITCH BOX ASSEMBLY, COMPLETE
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOW -
1332-4796A6 SWITCH BOX ASSEMBLY, COMPLETE
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UPSWITCH BOX ASSEMBLY, COMPLETE
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UP -
211-45076 NUT, SWITCH TERMINALNUT, SWITCH TERMINAL
-
310-64022 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")
-
410-63506 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2 1/8")
-
511-20184 NUT, SWITCH BOX SCREW ATTACHINGNUT, SWITCH BOX SCREW ATTACHING
-
654-22627 CLAMP, ELECTRIAL LEADS TO SWITCH BOXCLAMP, ELECTRIAL LEADS TO SWITCH BOX
-
710-69079 SCREW, CLAMP TO SWITCH BOX (7/16")SCREW, CLAMP TO SWITCH BOX (7/16")
-
88M0084613 "D" WASHER, CLAMP FASTENING SCREW"D" WASHER, CLAMP FASTENING SCREW
-
956318A5 CABLE ASSEMBLY, COIL TO SWITCH BOX (GREEN)CABLE ASSEMBLY, COIL TO SWITCH BOX (GREEN)
-
108M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1111-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
1210-37571 SCREW, RECTIFIER TO FRONT SUPPORT BRACKER (1/2")SCREW, RECTIFIER TO FRONT SUPPORT BRACKER (1/2")
-
1391-63015 STARTER MOTOR ASSEMBLY
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOWSTARTER MOTOR ASSEMBLY
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOW -
1350-44369A1 STARTER MOTOR ASSEMBLY
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UPSTARTER MOTOR ASSEMBLY
UNITED STATES 3660088 AND UP
AUSTRALIA 8009835 AND UP
BELGIUM 9031354 AND UP
CANADA 7019758 AND UP -
148M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
1584-60872 CABLE, STARTER TO FRONT SUPPORT BRACKET (9/2")CABLE, STARTER TO FRONT SUPPORT BRACKET (9/2")
-
1610-28635 SCREW, CABLE TO STARTER MOTOR (5/8")SCREW, CABLE TO STARTER MOTOR (5/8")
-
1784-68890 CABLE, SOLENOID TO STARTER MOTOR (21 1/4")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOWCABLE, SOLENOID TO STARTER MOTOR (21 1/4")
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW -
1784-68890 CABLE, SOLENOID TO STARTER MOTOR (22 1/2")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UPCABLE, SOLENOID TO STARTER MOTOR (22 1/2")
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP -
1813-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1911-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
2023-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNTCOLLAR, RUBBER - STARTER MOTOR MOUNT
-
2123-56774 SPACER, COLLAR TO MOUNTING BRACKETSSPACER, COLLAR TO MOUNTING BRACKETS
-
2289-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
2310-69054 SCREW, SOLENOID TO FRONT SUPPORT BRACKET (5/8")SCREW, SOLENOID TO FRONT SUPPORT BRACKET (5/8")
-
2413-26992 LOCKWASHER, SOLENOID MOUNTING SCREWLOCKWASHER, SOLENOID MOUNTING SCREW
-
2510-98256 SCREW, SOLENOID TO FRONT SUPPORT BRACKET (1/2")SCREW, SOLENOID TO FRONT SUPPORT BRACKET (1/2")
-
2611-20184 NUT, SOLENOID MOUNTING SCREWNUT, SOLENOID MOUNTING SCREW
-
2713-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
2811-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
2913-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
3011-21908 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
30A46265 BOOT, STARTER SOLENOID TERMINALBOOT, STARTER SOLENOID TERMINAL
-
3184-61378A2 CABLE, BATTERY TO STARTER SOLENOIDCABLE, BATTERY TO STARTER SOLENOID
-
3284-60795 WIRING HARNESS (INTERNAL)WIRING HARNESS (INTERNAL)
-
3310-69560 SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")
-
3411-46438 NUT, WIRING HARNESS SCREWNUT, WIRING HARNESS SCREW
-
3560114A1 BRACKET ASSEMBLY, WIRING HARNESSBRACKET ASSEMBLY, WIRING HARNESS
-
3626-60925 SEAL, WIRING HARNESS BRACKETSEAL, WIRING HARNESS BRACKET
-
3710-69082 SCREW, WIRING HARNESS BRACKET MOUNTING (2 3/8")SCREW, WIRING HARNESS BRACKET MOUNTING (2 3/8")
-
3825-8M0079730 GROMMET, WIRING HARNESS BRACKET SCREWGROMMET, WIRING HARNESS BRACKET SCREW
-
3961990 STA-STRAP, INTERNAL HARNESS AND CABLESSTA-STRAP, INTERNAL HARNESS AND CABLES
-
40332-4895T2 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
4172015 PAD, RUBBER - IGNITION COILPAD, RUBBER - IGNITION COIL
-
4263195 COVER, IGNITION COILCOVER, IGNITION COIL
-
4362094 BRACKET, COIL MOUNTINGBRACKET, COIL MOUNTING
-
4410-88856 SCREW, COIL AND BRACKET TO CYLINDER BLOCK (2")SCREW, COIL AND BRACKET TO CYLINDER BLOCK (2")
-
4584-60466A1 CABLE ASSEMBLY, GROUND - MOUNTING SCREWCABLE ASSEMBLY, GROUND - MOUNTING SCREW
-
4613-26996 LOCKWASHER, IGNITION COIL TERMINAL (#10)LOCKWASHER, IGNITION COIL TERMINAL (#10)
-
4711-45076 NUT, IGNITION COIL TERMINAL (#10)NUT, IGNITION COIL TERMINAL (#10)
