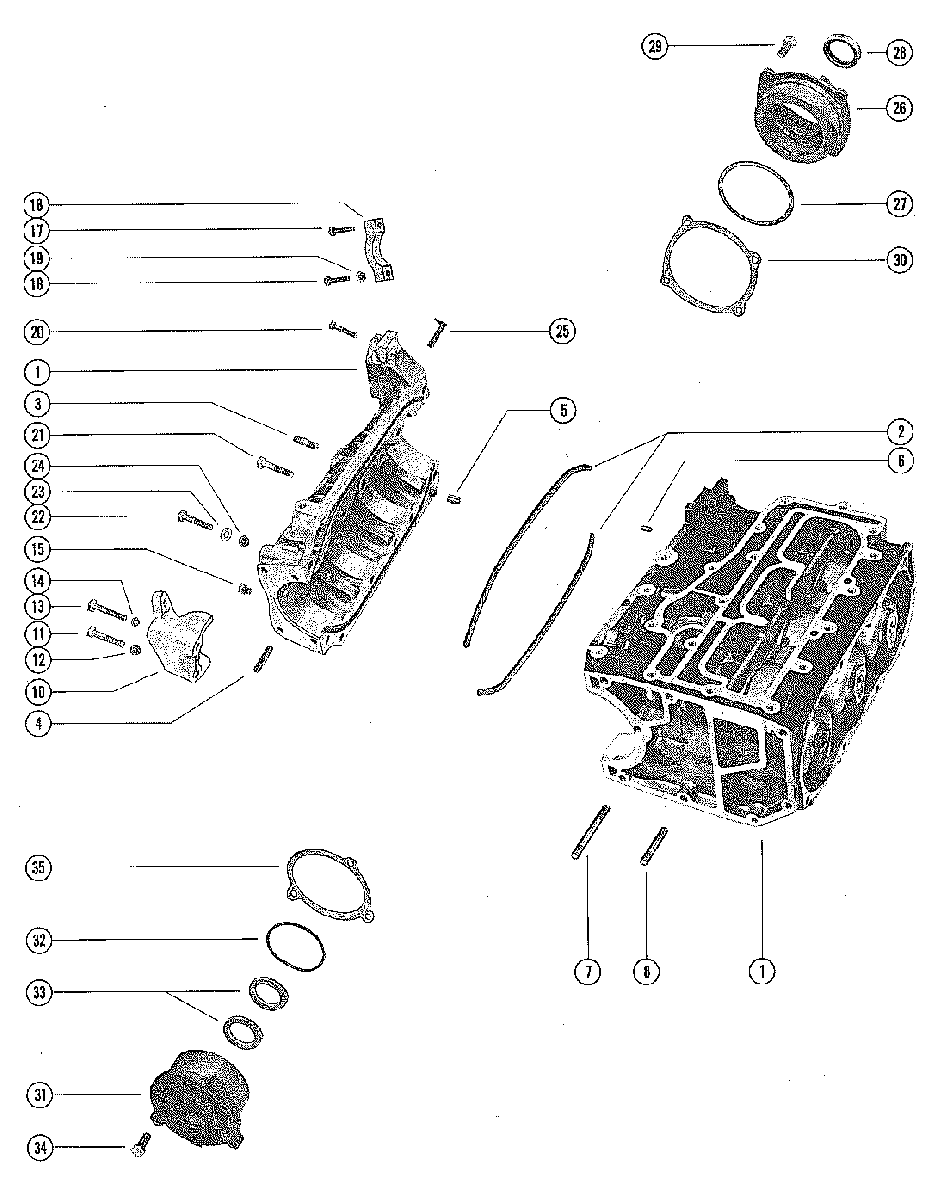

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 650 (3 CYL.) 8006640 THRU 8042349

№

Артикул

Название
1

864-5989A3 CYLINDER BLOCK AND CRANKCASE ASSEMLBY (SHORT SHAFT)

CYLINDER BLOCK AND CRANKCASE ASSEMLBY (SHORT SHAFT)

0 ₽
1

855-5646A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4042111 AND BELOW
AUSTRALIA 8021839 AND BELOW
BELGIUM 9067868 AND BELOW
CANADA 7039237 AND BELOW

0 ₽
1

855-5646A3 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4042112 AND UP
AUSTRALIA 8021840 AND UP
BELGIUM 9067869 AND UP
CANADA 7039238 AND UP

0 ₽
2

27-60286 GASKET, CRANKCASE TO CYLINDER BLOCK

GASKET, CRANKCASE TO CYLINDER BLOCK

340 ₽
3

16-64936 STUD, CARBURETOR MOUNTING (1 1/4")

STUD, CARBURETOR MOUNTING (1 1/4")

0 ₽
4

16-68201 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")

STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")

0 ₽
5

17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK

DOWEL PIN, CRANKCASE TO CYLINDER BLOCK

200 ₽
6

17-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING

DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING

320 ₽
7

16-68203 STUD, BLOCK TO DRIVE SHAFT HSG. (4")

STUD, BLOCK TO DRIVE SHAFT HSG. (4")

0 ₽
8

16-68202 STUD, BLOCK TO DRIVE SHAFT HSG.(3") - EXHAUST SIDE

STUD, BLOCK TO DRIVE SHAFT HSG.(3") - EXHAUST SIDE

2 220 ₽
8

16-68167 STUD, BLOCK TO DRIVE SHAFT HSG.(2 9/16") - TRANSFER SIDE

STUD, BLOCK TO DRIVE SHAFT HSG.(2 9/16") - TRANSFER SIDE

1 940 ₽
10

60115 COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)

COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)

0 ₽
11

10-26132 SCREW, STARTER MOTOR COVER TO CRANKCAE (2 1/2")

SCREW, STARTER MOTOR COVER TO CRANKCAE (2 1/2")

0 ₽
12

11-29250 NUT, STARTER MOTOR COVER SCREW

NUT, STARTER MOTOR COVER SCREW

180 ₽
13

10-57841 SCREW, STARTER MOTOR COVER TO CRANKCASE (2 3/4")

SCREW, STARTER MOTOR COVER TO CRANKCASE (2 3/4")

0 ₽
14

13-26993 LOCKWASHER, STARTER MOTOR COVER SCREW

LOCKWASHER, STARTER MOTOR COVER SCREW

140 ₽
15

22-328022 PIPE PLUG, CRANKCASE

PIPE PLUG, CRANKCASE

600 ₽
16

79735A1 COVER, STARTER MOTOR TO CRANKCASE (TOP)

COVER, STARTER MOTOR TO CRANKCASE (TOP)

0 ₽
17

10-21449 SCREW, STARTER MOTOR COVER TO CRANKCASE (2")

SCREW, STARTER MOTOR COVER TO CRANKCASE (2")

0 ₽
18

10-26132 SCREW, STARTER MOTOR COVER TO CRANKCASE (2 1/2")

SCREW, STARTER MOTOR COVER TO CRANKCASE (2 1/2")

0 ₽
19

11-29250 NUT, STARTER MOTOR COVER SCREW

NUT, STARTER MOTOR COVER SCREW

180 ₽
20

10-69094 SCREW, CRANKCASE TO CYLINDER BLOCK (1 7/8")

SCREW, CRANKCASE TO CYLINDER BLOCK (1 7/8")

0 ₽
21

10-69090 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")

SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")

0 ₽
22

10-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")

SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")

0 ₽
23

12-26020 WASHER, CRANKCASE TO CYLINDER BLOCK SCREW

WASHER, CRANKCASE TO CYLINDER BLOCK SCREW

0 ₽
24

11-29250 NUT, CRANKCASE TO CYLINDER BLOCK SCREW

NUT, CRANKCASE TO CYLINDER BLOCK SCREW

180 ₽
25

62397 INDICATOR, TIMING

INDICATOR, TIMING

0 ₽
26

1143-5063A1 END CAP ASSEMBLY, UPPER

END CAP ASSEMBLY, UPPER

0 ₽
27

25-64966 "O" RING, END CAP

"O" RING, END CAP

300 ₽
28

26-41953 OIL SEAL, END CAP

OIL SEAL, END CAP

1 140 ₽
29

10-30225 SCREW, UPPER END CAP MOUNTING (1")

SCREW, UPPER END CAP MOUNTING (1")

70 ₽
30

15-47248A1 SHIM, UPPER END CAP (.006-8-10)

SHIM, UPPER END CAP (.006-8-10)

0 ₽
31

1144-6691A1 END CAP ASSEMLBY, LOWER

END CAP ASSEMLBY, LOWER

0 ₽
32

25-32546 "O" RING, END CAP

"O" RING, END CAP

480 ₽
33

26-41953 OIL SEAL, END CAP

OIL SEAL, END CAP

1 140 ₽
34

10-30225 SCREW, LOWER END CAP MOUNTING (1")

SCREW, LOWER END CAP MOUNTING (1")

70 ₽
35

15-20085A1 SHIM, LOWER END CAP (.002-3-5-10)

SHIM, LOWER END CAP (.002-3-5-10)

6 050 ₽
