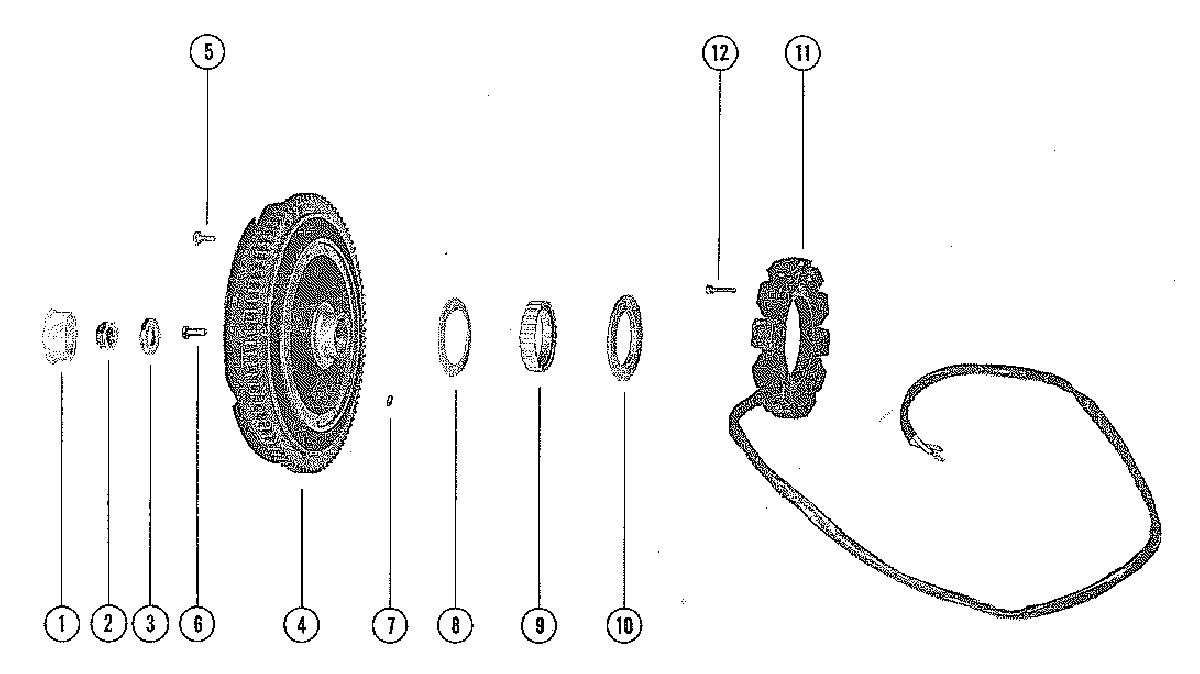

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 650 (3 CYL.) 8006640 THRU 8042349
-
№АртикулНазвание
-
119-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
211-52901 NUT, FLYWHEELNUT, FLYWHEEL
-
312-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
4225-4591A7 FLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWFLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
4225-4591A7 FLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPFLYWHEEL ASSEMBLY, COMPLETE
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (3/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (3/8")
-
610-68997 SCREW, PLATE AND HUB (3/4")
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOWSCREW, PLATE AND HUB (3/4")
UNITED STATES 4136684 AND BELOW
AUSTRALIA 8029189 AND BELOW
BELGIUM 9082138 AND BELOW
CANADA 7051132 AND BELOW -
610-69088 SCREW, PLATE AND HUB (7/8")
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPSCREW, PLATE AND HUB (7/8")
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
717-26618 PIN, DOWEL - PULLEY TO FLYWHEELPIN, DOWEL - PULLEY TO FLYWHEEL
-
829788 FLANGE, FLYWHEEL PULLEYFLANGE, FLYWHEEL PULLEY
-
930306 PULLEY, FLYWHEELPULLEY, FLYWHEEL
-
1029787 HUB, FLYWHEEL PULLEYHUB, FLYWHEEL PULLEY
-
11398-4634 STATOR, ALTERNATORSTATOR, ALTERNATOR
-
1210-57021 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
