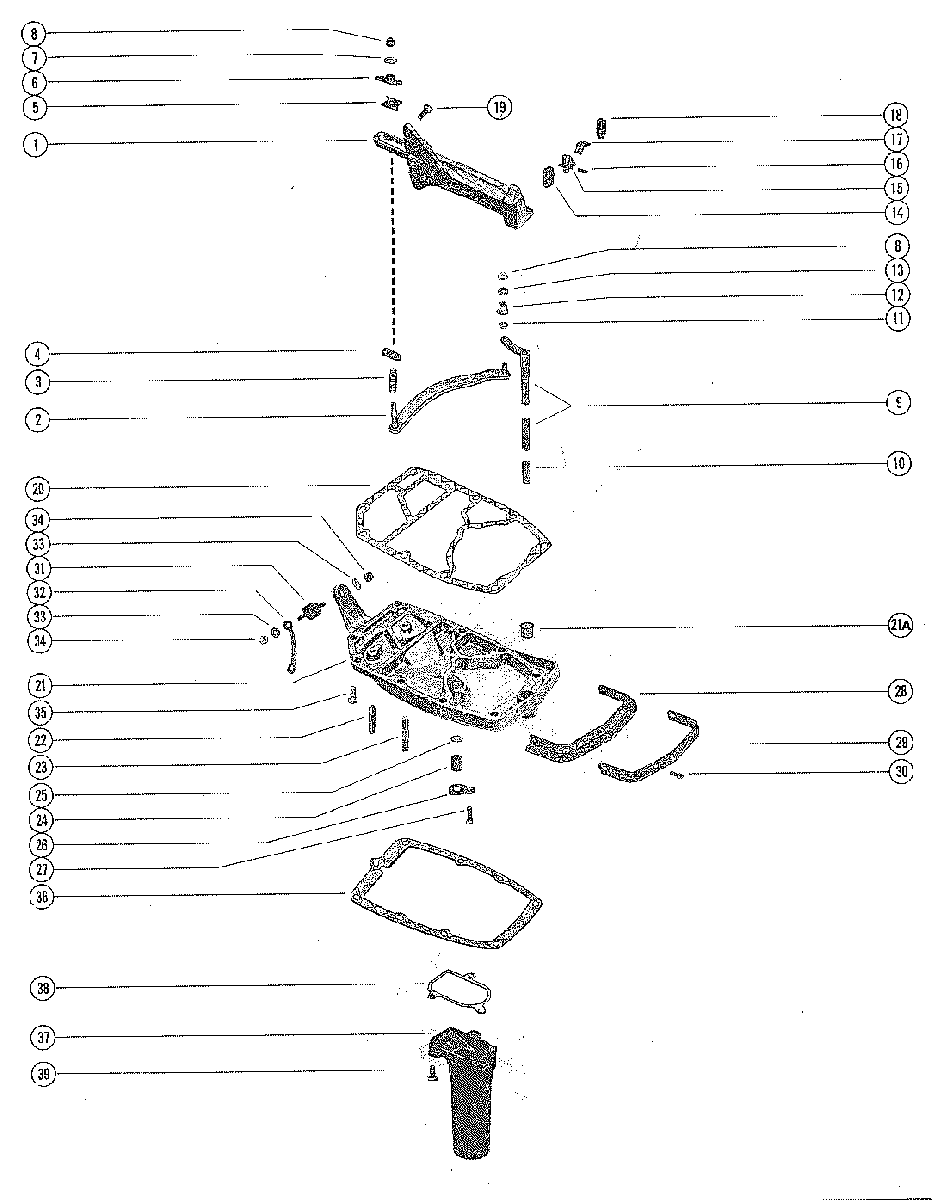

SHIFT LINKAGE AND EXHAUST PLATE для Mercury - 650 (3 CYL.) 8006640 THRU 8042349
-
№АртикулНазвание
-
1814283A2 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
260283A1 LINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKETLINK ASSEMBLY, SHIFT SHAFT AND ANCHOR BRACKET
-
324-20099 SPRING, LINK TO ANCHOR BRACKETSPRING, LINK TO ANCHOR BRACKET
-
437896 GUIDE BLOCK, LINKGUIDE BLOCK, LINK
-
552100 WEAR PLATE, NYLON - LINKWEAR PLATE, NYLON - LINK
-
68M0036768 LATCH, LINK TO ANCHOR BRACKETLATCH, LINK TO ANCHOR BRACKET
-
712-69056 WASHER, LINK LATCHWASHER, LINK LATCH
-
811-826709109 NUT, LINK ATTACHINGNUT, LINK ATTACHING
-
960304A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOWSHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOW -
960304A1 SHIFT SHAFT, ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOWSHIFT SHAFT, ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOW -
1093960A1 COUPLING, SHIFT SHAFT
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOWCOUPLING, SHIFT SHAFT
UNITED STATES 4259239 AND BELOW
AUSTRALIA 8029514 AND BELOW
BELGIUM 9096013 AND BELOW
CANADA 7058207 AND BELOW -
975007A5 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UPSHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UP -
975008A5 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UPSHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
UNITED STATES 4259240 AND UP
BELGIUM 9096014 AND UP
CANADA 7058208 AND UP -
1113-29720 WASHER, WAVE - SHIFT SHAFT TO LINKWASHER, WAVE - SHIFT SHAFT TO LINK
-
1223-26600 BUSHING, NYLON - SHIFT SHAFT TO LINKBUSHING, NYLON - SHIFT SHAFT TO LINK
-
1312-24664 WASHER, LINK (SHIFT SHAFT END)WASHER, LINK (SHIFT SHAFT END)
-
1439519 CUP, RETAINER - ANCHOR BRACKETCUP, RETAINER - ANCHOR BRACKET
-
1587609A1 LEVER, NYLON - SHIFT CABLE LOCKINGLEVER, NYLON - SHIFT CABLE LOCKING
-
1617-47175 PIN, LOCKING LEVER AND COVER FASTENINGPIN, LOCKING LEVER AND COVER FASTENING
-
1739536 LINK, LOCKING LEVER TO COVER
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOWLINK, LOCKING LEVER TO COVER
UNITED STATES 3807832 AND BELOW
AUSTRALIA 8015539 AND BELOW
BELGIUM 9046298 AND BELOW
CANADA 7029947 AND BELOW -
1787609A1 LINK, LOCKING LEVER TO COVER
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UPLINK, LOCKING LEVER TO COVER
UNITED STATES 3807833 AND UP
AUSTRALIA 8015540 AND UP
BELGIUM 9046299 AND UP
CANADA 9029948 AND UP -
1839667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
1910-69101 SCREW, ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")SCREW, ANCHOR BRACKET TO CRANKCASE/CYL. BLOCK (7/8")
-
2027-60317 GASKET, POWERHEAD TO EXHAUST PLATEGASKET, POWERHEAD TO EXHAUST PLATE
-
2174007A1 EXHAUST PLATE ASSEMBLY
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOWEXHAUST PLATE ASSEMBLY
UNITED STATES 3660087 AND BELOW
AUSTRALIA 8009824 AND BELOW
BELGIUM 9031353 AND BELOW
CANADA 7019757 AND BELOW -
2174007A1 EXHAUST PLATE ASSEMBLY
UNITED STATES 3660088 THRU 4136684
AUSTRALIA 8009825 THRU 8029189
BELGIUM 9031354 THRU 9082138
CANADA 7019758 THRU 7051132EXHAUST PLATE ASSEMBLY
UNITED STATES 3660088 THRU 4136684
AUSTRALIA 8009825 THRU 8029189
BELGIUM 9031354 THRU 9082138
CANADA 7019758 THRU 7051132 -
2173712A3 EXHAUST PLATE ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPEXHAUST PLATE ASSEMBLY
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
21A23-27132 BUSHING, NYLON - EXHAUST PLATE
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UPBUSHING, NYLON - EXHAUST PLATE
UNITED STATES 4136685 AND UP
AUSTRALIA 8029190 AND UP
BELGIUM 9082139 AND UP
CANADA 7051133 AND UP -
2216-8M0034449 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (1 11/16")
-
2316-68166 STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")STUD, EXHAUST PLATE TO DRIVE SHAFT HOUSING (2 1/8")
-
2473156 SEAL, WATER INLET TUBESEAL, WATER INLET TUBE
-
2512-38453 WASHER, NYLON - WATER INLET TUBE SEALWASHER, NYLON - WATER INLET TUBE SEAL
-
2638500 RETAINER, WATER INLET TUBE SEALRETAINER, WATER INLET TUBE SEAL
-
2710-69069 SCREW, RETAINER TO EXHAUST PLATE (3/4")SCREW, RETAINER TO EXHAUST PLATE (3/4")
-
2860307 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
2960306 STRIP, RETAINING - EXHAUST PLATE SEALSTRIP, RETAINING - EXHAUST PLATE SEAL
-
3010-62568 SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")SCREW, RETAINING STRIP TO EXHAUST PLATE (3/8")
-
3190435 MOUNT, RUBBER - EXHAUST PLATE TO REAR COWL SUPPORTMOUNT, RUBBER - EXHAUST PLATE TO REAR COWL SUPPORT
-
3249651A1 GROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORTGROUND STRAP ASS'Y, EXHAUST PLATE TO REAR COWL SUPPORT
-
3312-69057 WASHER, RUBBER MOUNT ATTACHINGWASHER, RUBBER MOUNT ATTACHING
-
3411-8267089 NUT, RUBBER MOUNT TO EXHAUST PLATENUT, RUBBER MOUNT TO EXHAUST PLATE
-
3510-37562 SCREW, EXHAUST PLATE TO CYLINDER BLOCK (1")SCREW, EXHAUST PLATE TO CYLINDER BLOCK (1")
-
3627-385011 GASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSINGGASKET, ADAPTOR PLATE TO DRIVE SHAFT HOUSING
-
3758911 EXHAUST TUBE, ADAPTOREXHAUST TUBE, ADAPTOR
-
3827-602801 GASKET, EXHAUST TUBE TO EXHAUST PLATEGASKET, EXHAUST TUBE TO EXHAUST PLATE
-
3910-28636 SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")SCREW, EXHAUST TUBE TO EXHAUST PLATE (3/4")
