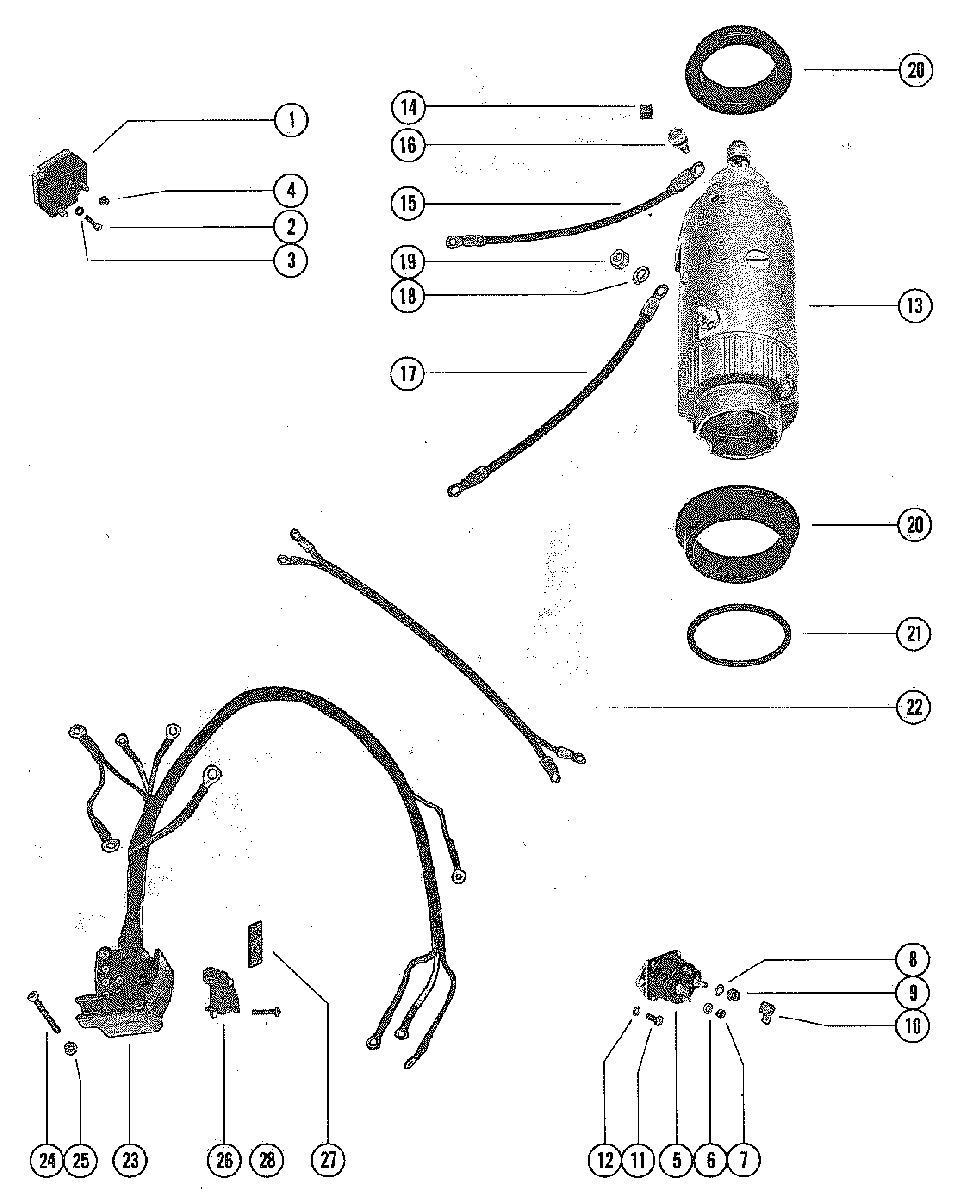

STARTER MOTOR, STARTER SOLENOID AND RECTIFIER ASSEMBLY для Mercury - 650 (3 CYL.) 7073473 THRU 7087822

  • №
    Артикул
    Название
  • 1
    8M0058226 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 2
    10-38055 SCREW, RECTIFIER TO PLATE (5/8")
    SCREW, RECTIFIER TO PLATE (5/8")
  • 3
    13-26996 LOCKWASHER, RECTIFIER SCREW
    LOCKWASHER, RECTIFIER SCREW
  • 4
    11-45076 NUT, RECTIFIER TERMINAL
    NUT, RECTIFIER TERMINAL
  • 5
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 6
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 7
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 8
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 9
    11-68292 NUT, SOLENOID TERMINAL (5/16")
    NUT, SOLENOID TERMINAL (5/16")
  • 10
    46265 BOOT, TERMINAL-STARTER SOLENOID
    BOOT, TERMINAL-STARTER SOLENOID
  • 11
    10-69054 SCREW, SOLENOID TO TOP COVER (3/4")
    SCREW, SOLENOID TO TOP COVER (3/4")
  • 12
    13-26992 WASHER, SOLENOID SCREW
    WASHER, SOLENOID SCREW
  • 13
    50-44369A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 14
    8M0043376 STOP, RUBBER- STARTER MOTOR
    STOP, RUBBER- STARTER MOTOR
  • 15
    84-60872 CABLE, STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2")
    CABLE, STARTER TO SOUND ATTENTUATOR-BLACK (9 1/2")
  • 16
    10-28635 SCREW, CABLE TO STARTER MOTOR (5/8")
    SCREW, CABLE TO STARTER MOTOR (5/8")
  • 17
    84-93389A6 CABLE, SOLENOID TO STARTER MOTOR-YELLOW (9 1/2")
    CABLE, SOLENOID TO STARTER MOTOR-YELLOW (9 1/2")
  • 18
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 19
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 20
    23-8M0034918 COLLAR, RUBBER-STARTER MOUNT
    COLLAR, RUBBER-STARTER MOUNT
  • 21
    23-56774 SPACER, COLLAR TO MOUNTING BRACKETS
    SPACER, COLLAR TO MOUNTING BRACKETS
  • 22
    84-62862A4 CABLE, BATTERY TO STARTER SOLENOID
    CABLE, BATTERY TO STARTER SOLENOID
  • 23
    84-73204 WIRING HARNESS (INTERNAL)
    WIRING HARNESS (INTERNAL)
  • 24
    10-69560 SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")
    SCREW, WIRING HARNESS TO FRONT SUPPORT BRACKET (1 1/4")
  • 25
    11-46438 NUT, WIRING HARNESS SCREW
    NUT, WIRING HARNESS SCREW
  • 26
    60114A1 BRACKET ASSEMBLY, WIRING HARNESS
    BRACKET ASSEMBLY, WIRING HARNESS
  • 27
    26-60925 SEAL, WIRING HARNESS BRACKET
    SEAL, WIRING HARNESS BRACKET
  • 28
    10-89778 SCREW, WIRING HARNESS BRACKET MOUNTING (2 1/4")
    SCREW, WIRING HARNESS BRACKET MOUNTING (2 1/4")
