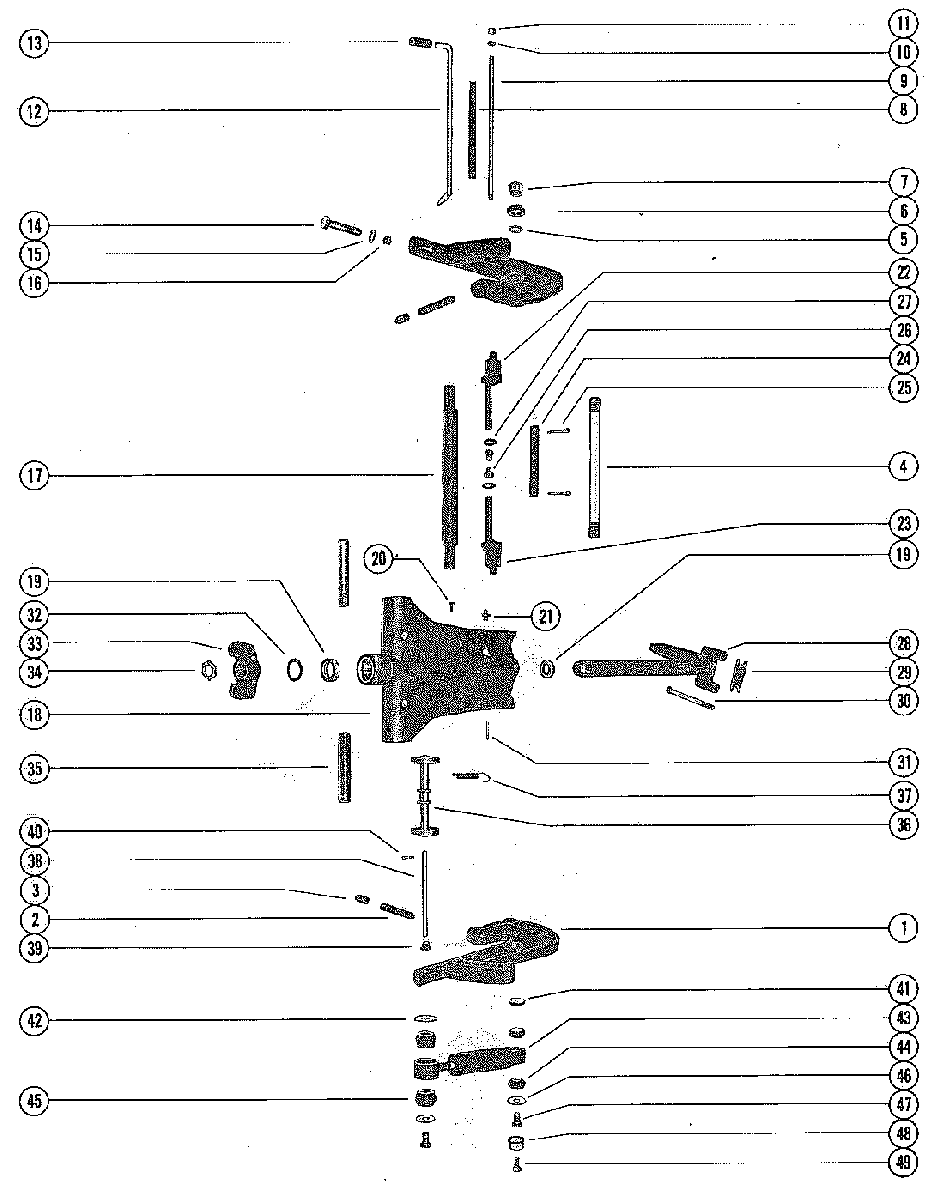

CLAMP AND SWIVEL BRACKET ASSEMBLY (G2) для Mercury - 650 (3 CYL.) 7073473 THRU 7087822
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
210-78492A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
375043 CAP, THUMB SCREWCAP, THUMB SCREW
-
48M0041936 TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLAMP BRACKET TILT TUBEWASHER, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC -TILT TUBECAP, PLASTIC -TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKET (9 1/2")STUD, CLAMP BRACKET (9 1/2")
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER-TILT LOCK PIN BUMPERSLEEVE, RUBBER-TILT LOCK PIN BUMPER
-
1410-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
-
1512-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1410-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")BOLT, CLAMP BRACKET TO BOAT TRANSOM (3")
-
1512-68300 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1611-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1755-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
181489-8597A4 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
-
181490-8599A6 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
1926-32911 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
2010-47828 SCREW, DRIVE-SWIVEL BRACKETSCREW, DRIVE-SWIVEL BRACKET
-
2122-74036 FITTING, GREASEFITTING, GREASE
-
2276386 TILT LOCK ASSEMBLY, STARBOARDTILT LOCK ASSEMBLY, STARBOARD
-
2376385T TILT LOCK ASSEMBLY, PORTTILT LOCK ASSEMBLY, PORT
-
2447802 TUBE, TILT LOCKTUBE, TILT LOCK
-
2518-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
2623-71574 BUSHING, TILT LOCK TUBEBUSHING, TILT LOCK TUBE
-
2713-69150 WASHER, WAVE-TILT LOCK TUBEWASHER, WAVE-TILT LOCK TUBE
-
2869540A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
-
2869540A2 SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)SWIVEL PIN AND STEERING ARM ASSEMBLY (LONG SHAFT)
-
2930711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
3010-66897 BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")BOLT, UPPER MOUNT TO SWIVEL PIN (7/16 X 5 1/4")
-
3117-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
3212-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)
-
3212-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
-
3377416T1 YOKE, BOTTOMYOKE, BOTTOM
-
3411-71956 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
3555-696531 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
3687432 REVERSE LOCKREVERSE LOCK
-
3724-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
3856349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
3923-69132 BUSHING, REVERSE PIVOT SHAFTBUSHING, REVERSE PIVOT SHAFT
-
4018-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4123-73203 SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET
-
4212-59378 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
4355-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
4423-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
-
4523-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
-
4612-28421 WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER)
-
4710-69375A1 SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")SCREW, UPPER AND LOWER SHOCK MOUNTING PIN (3/4")
-
4870679 COVER, UPPER AND LOWER SHOCK MOUNTING PINCOVER, UPPER AND LOWER SHOCK MOUNTING PIN
-
4910-37655 SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")SCREW, COVER TO SHOCK MOUNTING SCREWS (1/2")
