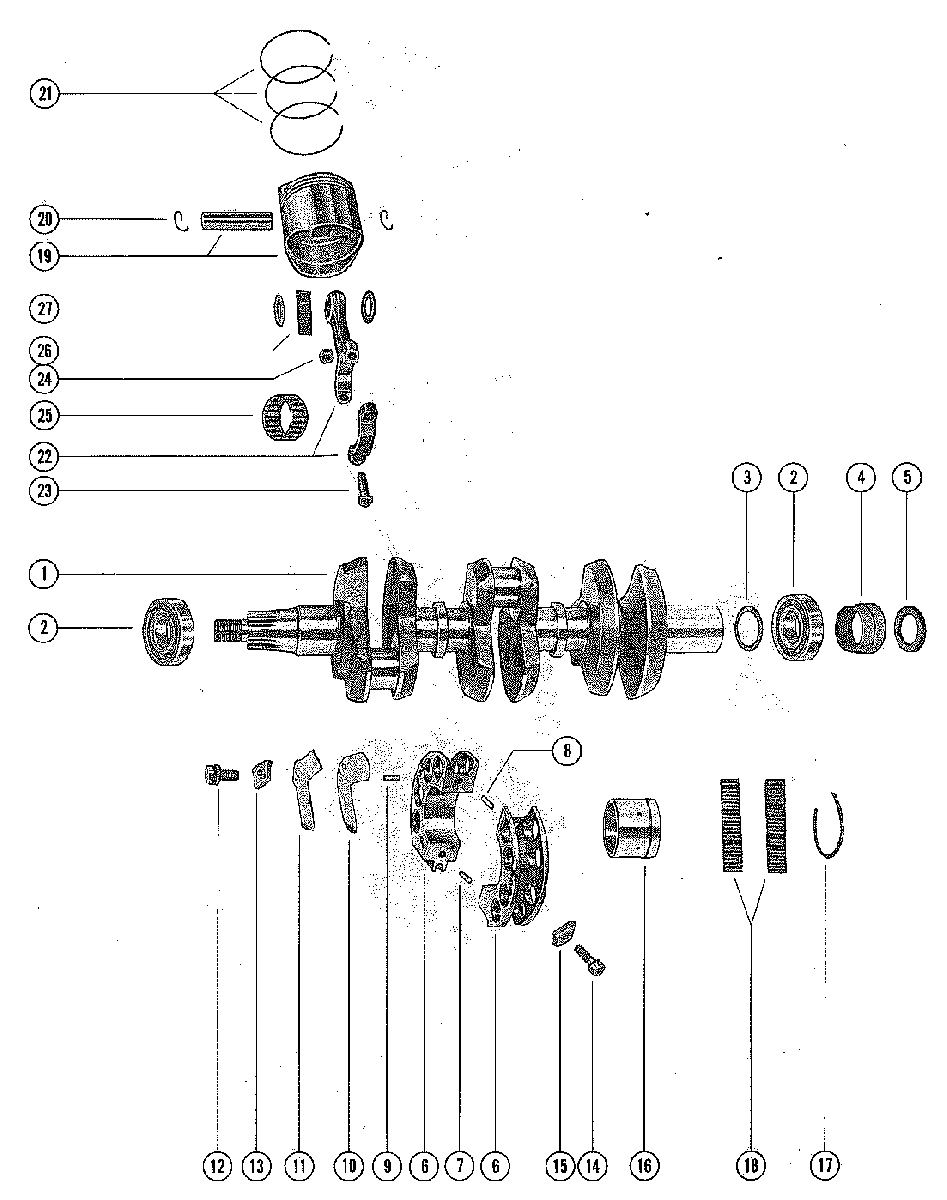

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 650 (3 CYL.) 7073473 THRU 7087822

  • №
    Артикул
    Название
  • 1
    462-8839A2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-64424T BEARING, BALL-LOWER AND UPPER
    BEARING, BALL-LOWER AND UPPER
  • 3
    15-22369A1 SHIM, LOWER BEARING TO CRANKSHAFT
    SHIM, LOWER BEARING TO CRANKSHAFT
  • 4
    60834A3 CARRIER ASSEMBLY, "O"RING
    CARRIER ASSEMBLY, "O"RING
  • 5
    64254001 "O" RING, CARRIER
    "O" RING, CARRIER
  • 6
    542-7509A3 MAIN BEARING ASSEMBLY (VALVE TYPE)
    MAIN BEARING ASSEMBLY (VALVE TYPE)
  • 7
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 8
    17-60282 DOWEL PIN (STEPPED)
    DOWEL PIN (STEPPED)
  • 9
    17-65855 DOWEL PIN, REED STOP
    DOWEL PIN, REED STOP
  • 10
    34-66051A1 REED SET, MATCHED-MAIN BEARING
    REED SET, MATCHED-MAIN BEARING
  • 11
    34-65946 REED STOP
    REED STOP
  • 12
    10-77280 SCREW, REED STOP MOUNTING (9/16")
    SCREW, REED STOP MOUNTING (9/16")
  • 13
    11-20110 NUT, REED STOP MOUNTING SCREW
    NUT, REED STOP MOUNTING SCREW
  • 14
    10-45775 SCREW, MAIN BEARING CLAMPING (9/16")
    SCREW, MAIN BEARING CLAMPING (9/16")
  • 15
    11-45774 NUT, MAIN BEARING SCREW CLAMPING
    NUT, MAIN BEARING SCREW CLAMPING
  • 16
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 17
    53-26933 RING, SNAP-OUTER RACE CLAMPING
    RING, SNAP-OUTER RACE CLAMPING
  • 18
    29-714221 BEARING, NEEDLE
    BEARING, NEEDLE
  • 19
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY (SHORT SHAFT)
    PISTON AND PISTON PIN ASSEMBLY (SHORT SHAFT)
  • 19
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY (LONG SHAFT)
    PISTON AND PISTON PIN ASSEMBLY (LONG SHAFT)
  • 20
    53-857196 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 21
    39-78816A12 RING, PISTON
    RING, PISTON
  • 22
    624-8101A3 CONNECTING ROD AND CAP ASSEMBLY
    CONNECTING ROD AND CAP ASSEMBLY
  • 23
    10-54803 SCREW, CAP TO CONNECTING ROD (1 1/2")
    SCREW, CAP TO CONNECTING ROD (1 1/2")
  • 24
    11-49091 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 25
    31-62596A1 BEARING ASSEMBLY, CRANKPIN
    BEARING ASSEMBLY, CRANKPIN
  • 26
    29-47270 BEARING, NEEDLE-PISTON PIN
    BEARING, NEEDLE-PISTON PIN
  • 27
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    774-9137A13 PISTON AND PISTON PIN ASSEMBLY (SHORT SHAFT) (.015)
    PISTON AND PISTON PIN ASSEMBLY (SHORT SHAFT) (.015)
  • --
    774-9137A13 PISTON AND PISTON PIN ASSEMBLY (LONG SHAFT) (.015)
    PISTON AND PISTON PIN ASSEMBLY (LONG SHAFT) (.015)
  • --
    39-78811A12 RING, PISTON (.015)
    RING, PISTON (.015)
