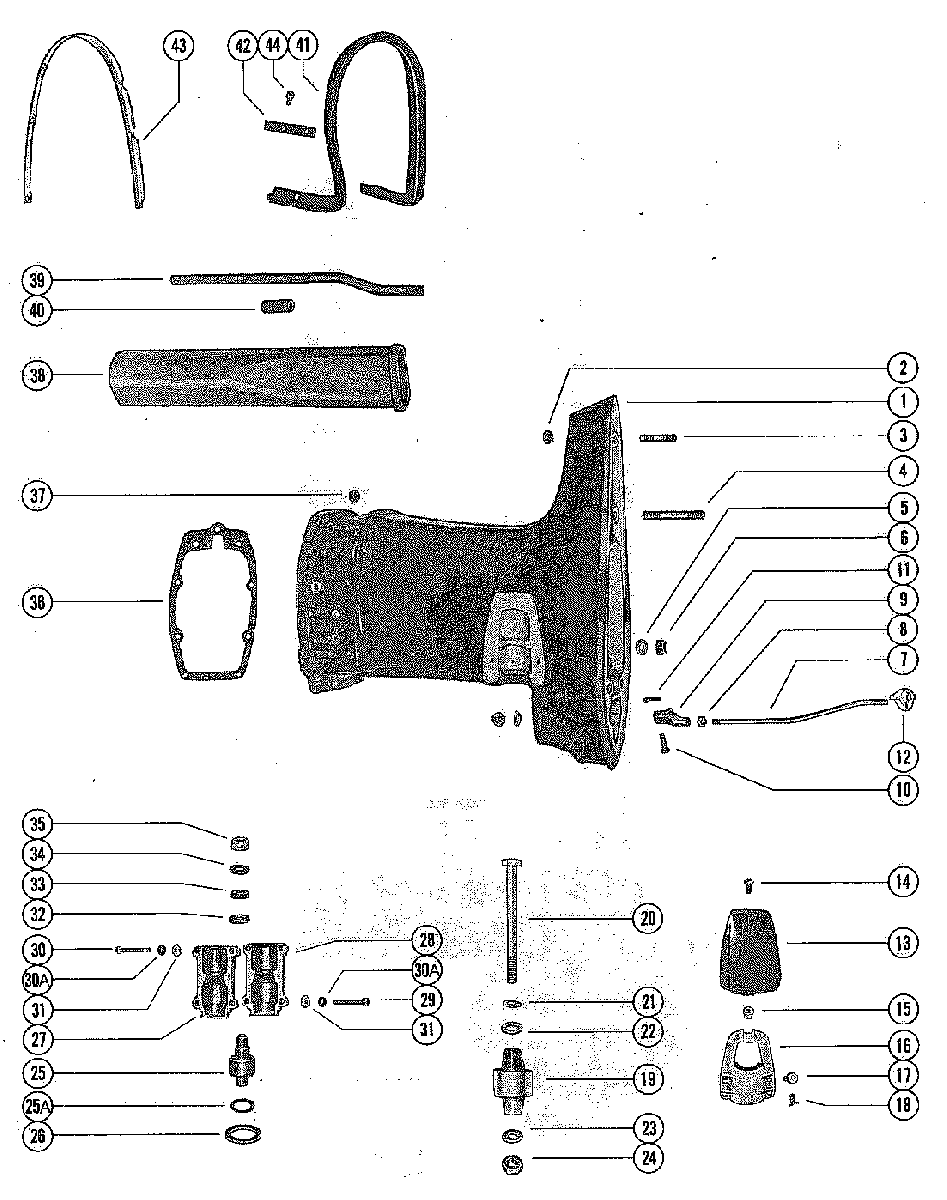

DRIVE SHAFT HOUSING ASSEMBLY (G4) для Mercury - 650 (3 CYL.) 7073473 THRU 7087822
-
№АртикулНазвание
-
11592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
219-64649 PLUG, PLASTIC-TRIM TAB SCREW HOLEPLUG, PLASTIC-TRIM TAB SCREW HOLE
-
316-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
-
416-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
-
512-65791 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
611-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS (7/16")
-
747835 ROD, PUSH-REVERSE LOCK (SHORT SHAFT)ROD, PUSH-REVERSE LOCK (SHORT SHAFT)
-
747836 ROD, PUSH-REVERSE LOCK (LONG SHAFT)ROD, PUSH-REVERSE LOCK (LONG SHAFT)
-
811-28770 NUT, JAM-PUSH RODNUT, JAM-PUSH ROD
-
947837 ROD END, PUSH RODROD END, PUSH ROD
-
1024-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
1118-25191 COTTER PIN, PUSH ROD PINCOTTER PIN, PUSH ROD PIN
-
12933361 GUIDE, PUSH RODGUIDE, PUSH ROD
-
1335474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
1410-29722 SCREW, COVER TO LOWER MOUNT CLAMP (5/8")SCREW, COVER TO LOWER MOUNT CLAMP (5/8")
-
1511-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
1669592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
1710-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
1824-35522 SPRING, TENSION-LOWER MOUNT CLAMPSPRING, TENSION-LOWER MOUNT CLAMP
-
1975304T1 MOUNT, RUBBER-LOWERMOUNT, RUBBER-LOWER
-
2010-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
2112-28051 WASHER, MOUNT SCREWWASHER, MOUNT SCREW
-
2212-28053 WASHER, RUBBER-LOWER MOUNT SCREWWASHER, RUBBER-LOWER MOUNT SCREW
-
2312-61709 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
2411-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
25923373 MOUNT, RUBBER-UPPERMOUNT, RUBBER-UPPER
-
25A25-65936 "O"RING, UPPER MOUNT"O"RING, UPPER MOUNT
-
2624929 PACKING, "U" CUP-UPPER MOUNT SCREWPACKING, "U" CUP-UPPER MOUNT SCREW
-
2779680A1 COVER, UPPER MOUNT-OUTSIDE HALFCOVER, UPPER MOUNT-OUTSIDE HALF
-
2879680A1 COVER, UPPER MOUNT-INSIDE HALFCOVER, UPPER MOUNT-INSIDE HALF
-
2910-71959 SCREW, UPPER MOUNT COVER-REAR (1 1/2")SCREW, UPPER MOUNT COVER-REAR (1 1/2")
-
3010-71958 SCREW, UPPER MOUNT COVER-FRONT (1 3/4")SCREW, UPPER MOUNT COVER-FRONT (1 3/4")
-
30A12-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3111-36069 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3212-27727 WASHER, UPPER MOUNT BOLT (4/16 ID)WASHER, UPPER MOUNT BOLT (4/16 ID)
-
3312-66966 WASHER, RUBBER- UPPER MOUNT BOLTWASHER, RUBBER- UPPER MOUNT BOLT
-
3412-30514 WASHER, UPPER MOUNT BOLT (7/16 ID)WASHER, UPPER MOUNT BOLT (7/16 ID)
-
3312-66966 WASHER, RUBBER-UPPER MOUNT BOLTWASHER, RUBBER-UPPER MOUNT BOLT
-
3412-30514 WASHER, UPPER MOUNT BOLT (7/16 ID)WASHER, UPPER MOUNT BOLT (7/16 ID)
-
3511-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3627-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
3711-64809 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
-
38695431 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
38695441 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
3932-37727 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
3932-45679 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
4023-23651 SLEEVE, WATER INLET TUBESLEEVE, WATER INLET TUBE
-
4138157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
4238154 STRIP, RETAINING-TRIM COVER SEAL (SIDE)STRIP, RETAINING-TRIM COVER SEAL (SIDE)
-
4338158 STRIP, RETAINING-TRIM COVER SEAL (REAR)STRIP, RETAINING-TRIM COVER SEAL (REAR)
-
4410-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
