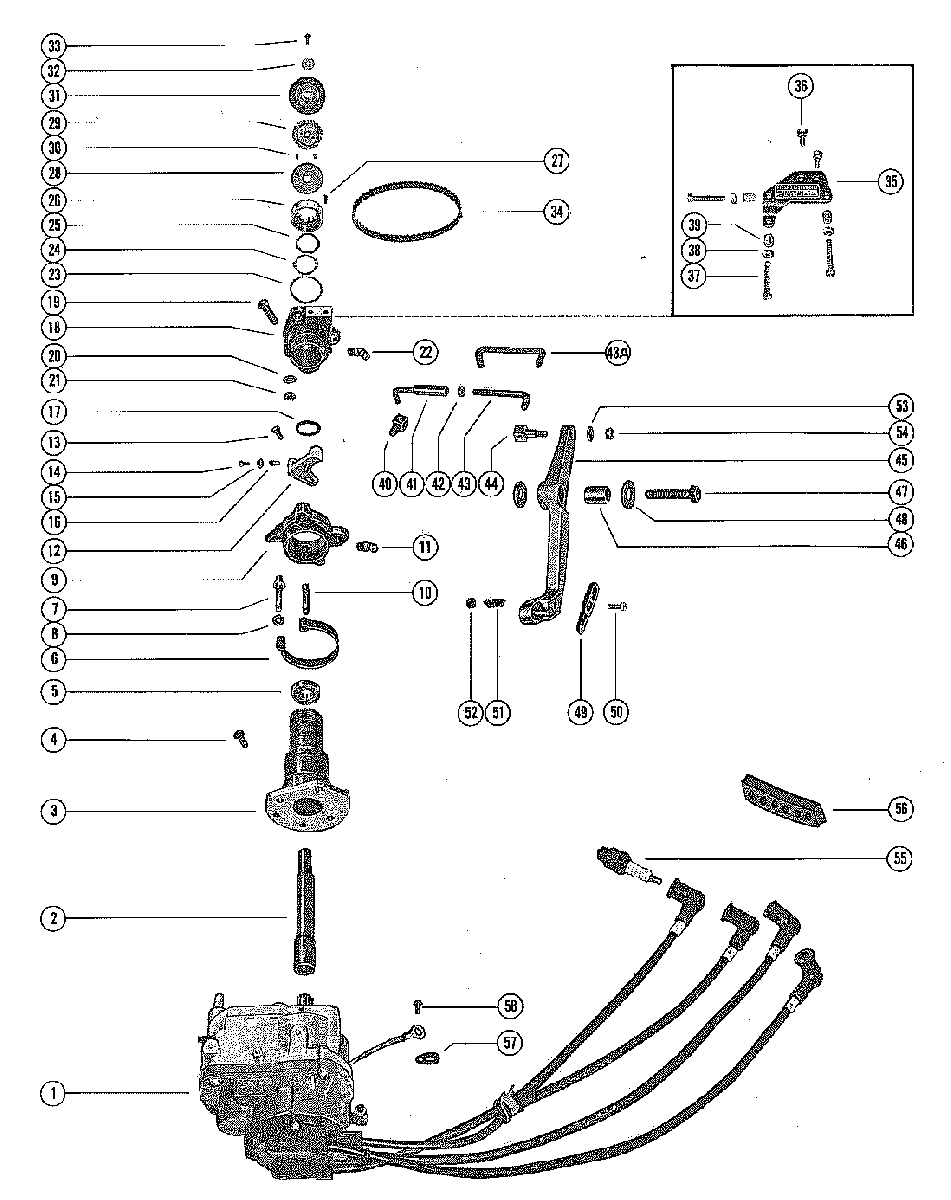

IGNITION DRIVER AND PILOT ASSEMBLY для Mercury - 500 2858814 THRU 4140999
-
№АртикулНазвание
-
1333-4674A3 IGNITION DRIVE ASSEMBLY, COMPLETE
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512IGNITION DRIVE ASSEMBLY, COMPLETE
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
1333-4674A3 IGNITION DRIVER ASSEMBLY, COMPLETE
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UPIGNITION DRIVER ASSEMBLY, COMPLETE
UNITED STATES 3235063 AND UP
AUSTRALIA 3244338 AND UP
BELGIUM 9001581 AND UP
CANADA 3243513 AND UP -
245-27951 SHAFT, IGNITION DRIVERSHAFT, IGNITION DRIVER
-
347883A1 PILOT ASSEMBLY, IGNITION DRIVERPILOT ASSEMBLY, IGNITION DRIVER
-
410-96138 SCREW, ADAPTOR AND PILOT TO IGNITION DRIVE (5/8")SCREW, ADAPTOR AND PILOT TO IGNITION DRIVE (5/8")
-
530-20066 BALL BEARING, IGNITION DRIVER PILOTBALL BEARING, IGNITION DRIVER PILOT
-
624-27944 SPRING, HORSESHOE - IGNITION DRIVER PILOTSPRING, HORSESHOE - IGNITION DRIVER PILOT
-
717-27962 PIN, ANCHOR - HORSESHOE SPRING TO PILOTPIN, ANCHOR - HORSESHOE SPRING TO PILOT
-
812-29245 WASHER, HORSESHOE SPRING TO ANCHOR PINWASHER, HORSESHOE SPRING TO ANCHOR PIN
-
948103A1 ECONOMIZER COLLAR AND PIN ASSEMBLYECONOMIZER COLLAR AND PIN ASSEMBLY
-
1017-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINERPIN, ECONOMIZER COLLAR - SPRING RETAINER
-
1122-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
1266778T PLATE, THROTTLE ACTUATOR
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512PLATE, THROTTLE ACTUATOR
UNITED STATES 2858814 THRU 3235062
AUSTRALIA 2863739 THRU 3244337
CANADA 2742142 THRU 3243512 -
1266778T PLATE, THROTTLE ACTUATOR
UNITED STATES 3235063 THRU 3816307
AUSTRALIA 3244338 THRU 9047653
BELGIUM 9001581 THRU 9047653
CANADA 3243513 THRU 7030747PLATE, THROTTLE ACTUATOR
UNITED STATES 3235063 THRU 3816307
AUSTRALIA 3244338 THRU 9047653
BELGIUM 9001581 THRU 9047653
CANADA 3243513 THRU 7030747 -
1266778T PLATE, THROTTLE ACTUATOR
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPPLATE, THROTTLE ACTUATOR
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
1310-46420 SCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2") - SERIASCREW, THROTTLE ACTUATOR TO ECONOMIZER COLLAR (1/2") - SERIA
-
1410-23702 SCREW, ADJUSTING - THROTTLE ACTUATOR (1 1/8") - SERIAL GROUPSCREW, ADJUSTING - THROTTLE ACTUATOR (1 1/8") - SERIAL GROUP
-
1410-23015 SCREW, ADJUSTING - THROTTLE ACTUATOR (1")SCREW, ADJUSTING - THROTTLE ACTUATOR (1")
-
1511-68219 NUT, THROTTLE ACTUATOR ADJUSTING SCREWNUT, THROTTLE ACTUATOR ADJUSTING SCREW
-
1648039 CAP, THROTTLE ACTUATOR ADJUSTING SCREWCAP, THROTTLE ACTUATOR ADJUSTING SCREW
-
1712-46246 WASHER, IGNITION DRIVER PILOT TO ADAPTORWASHER, IGNITION DRIVER PILOT TO ADAPTOR
-
1866856A1 ADAPTOR, IGNITION DRIVER
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747ADAPTOR, IGNITION DRIVER
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
1910-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE (1 1/2") SERIAL GR #11SCREW, ADAPTOR AND PILOT TO CRANKCASE (1 1/2") SERIAL GR #11
-
2012-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW SERL GR #11WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW SERL GR #11
-
2111-22053 NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747NUT, ADAPTOR AND PILOT TO CRANKCASE SCREW
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
1866856A1 ADAPTOR, IGNITIONA DRIVER
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPADAPTOR, IGNITIONA DRIVER
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
1910-74824 SCREW, ADAPTOR AND PILOT AND CRANKCASE (1 1/4") SERL GR #7SCREW, ADAPTOR AND PILOT AND CRANKCASE (1 1/4") SERL GR #7
-
2012-20084 WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW SERL GR #7WASHER, ADAPTOR AND PILOT TO CRANKCASE SCREW SERL GR #7
-
2222-25094 FITTING, GREASE - IGNITION DRIVER ADAPTORFITTING, GREASE - IGNITION DRIVER ADAPTOR
-
2312-27939 WASHER, IGNITION DRIVER PILOTWASHER, IGNITION DRIVER PILOT
-
2414-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
2513-27959 WASHER, WAVE - IGNITION DRIVER BALL BEARING TENSIONWASHER, WAVE - IGNITION DRIVER BALL BEARING TENSION
-
2627955 CAP, IGNITION DRIVER ADAPTOR AND PILOT FASTENINGCAP, IGNITION DRIVER ADAPTOR AND PILOT FASTENING
-
2728-28657 KEY, IGNITION DRIVERKEY, IGNITION DRIVER
-
2829784 HUB, DRIVEN PULLEYHUB, DRIVEN PULLEY
-
--23-29909 SPACER, DRIVEN PULLEYSPACER, DRIVEN PULLEY
-
2929783A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3017-24873 PIN, ROLL - FLANGEPIN, ROLL - FLANGE
-
3129785 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
3212-20138 WASHER, PULLEY SCREWWASHER, PULLEY SCREW
-
3310-64652 SCREW, PULLEY (5/8")SCREW, PULLEY (5/8")
-
3420140 BELT, TIMINGBELT, TIMING
-
3553458 PLATE, THROTTLE STOPPLATE, THROTTLE STOP
-
3610-28668 SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")SCREW, THROTTLE STOP PLATE TO ADAPTOR (7/8")
-
3710-24933 SCREW, THROTTLE STOP ADJUSTING (1 1/2")SCREW, THROTTLE STOP ADJUSTING (1 1/2")
-
3710-20012 SCREW, THROTTLE STOP ADJUSTING (1 5/8")SCREW, THROTTLE STOP ADJUSTING (1 5/8")
-
3811-20013 NUT, THROTTLE STOP ADJUSTING SCREWNUT, THROTTLE STOP ADJUSTING SCREW
-
3926852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
4027947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
4125996A1 SWIVEL AND LINK ROD ASSEMBLY
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747SWIVEL AND LINK ROD ASSEMBLY
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
4211-25168 NUT, UPPER LINK ROD ADJUSTING
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747NUT, UPPER LINK ROD ADJUSTING
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
4337700 ROD, LINK - UPPER
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747ROD, LINK - UPPER
UNITED STATES 2858814 THRU 3816307
AUSTRALIA 2863739 THRU 8015989
BELGIUM 9001581 THRU 9047653
CANADA 2742142 THRU 7030747 -
43A66552 LINK ROD
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UPLINK ROD
UNITED STATES 3816308 AND UP
AUSTRALIA 8015900 AND UP
BELGIUM 9047654 AND UP
CANADA 7030748 AND UP -
4427948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
4553143A2 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
4623-45818 BUSHING, THROTTLE LEVER SCREWBUSHING, THROTTLE LEVER SCREW
-
4710-47273 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")SCREW, THROTTLE LEVER TO EXHAUST COVER (1 1/2")
-
4812-8M0042641 WASHER, THROTTLE LEVER SCREWWASHER, THROTTLE LEVER SCREW
-
4939483 LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)LATCH, THROTTLE CONTROL LEVER (THROTTLE CABLE)
-
5010-69026 SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")SCREW, LATCH TO THROTTLE CONTROL LEVER (7/8")
-
5124-20099 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
5211-826709109 NUT, LATCH SCREWNUT, LATCH SCREW
-
5312-29245 WASHER, UPPER SWIVEL TO THROTTLE LEVERWASHER, UPPER SWIVEL TO THROTTLE LEVER
-
5411-826709109 NUT, UPPER SWIVEL TO THROTTLE LEVERNUT, UPPER SWIVEL TO THROTTLE LEVER
-
5533-97180Q SPARK PLUG (AC V-40-FFM)SPARK PLUG (AC V-40-FFM)
-
5645391 SPACER, IGNITION WIRESPACER, IGNITION WIRE
-
5753-78201 BRACKET, TAB - CRANKCASE - IGNITION DRIVER GROUND STRAPBRACKET, TAB - CRANKCASE - IGNITION DRIVER GROUND STRAP
-
5810-62568 SCREW, IGNITION DRIVER GROUND STRAP TO TAB BRACKET (3/8")SCREW, IGNITION DRIVER GROUND STRAP TO TAB BRACKET (3/8")
